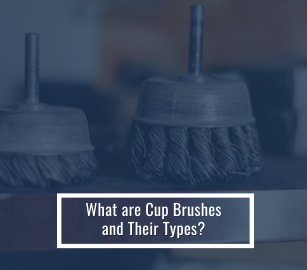

What are Cup Brushes and Their Types

What are Cup Brushes and Their Types

Cup brushes are generally used to remove scale, rust, and paint, as for deburring and polishing. Different duty levels and fill materials are available to suit the right tasks in surface preparation, burr removal, and finishing operations.

What is a wire cup brush used for

Wire cup brushes are cup-shaped tools made from steel or chrome steel filaments. Machine part manufacturers use them for surface preparation, deburring, and surface finishing.

Its primary applications include removing rust, paint and welding scale, metal cleaning, and edge blending.

Types of Cup Brushes

Types of Cup Brushes

There are different types of cup brush sizes available, but tool selection isn't almost filament material, which may be the workpiece's function. Brush diameter, wire size, and trim length are also essential to consider while choosing the right brush.

Cup brushes are available within the following duty levels and sizes:

Utility Cup Brushes

These brushes are designed for removing light deposits of scale, paint, rust, and little burrs. Standard models are available in steel, chrome steel, brass, and nylon. Brushes are available with ¼" shank or ½" arbor hole. Approximate trim length is ¾". Recommended maximum safe free speed ranges from 8,000 rpm to 10,500 rpm. Diameter options include 1¾", 2″ and a couple of ¾".

Mini grinder Cup Brushes

Designed for higher speed rotation during a high-speed angle grinder. Suitable for deburring, weld cleaning, paint and rust removal, and surface preparation. Available standard with steel, chrome steel, brass, or bronze wire in both crimped and twisted knot styles. A spread of standard threaded arbor hole sizes is out there, including popular Metric sizes to suit all grinders' brands. The recommended maximum safe free speed is 12,500 rpm. Diameter is 2 ¾", and trim length varies by model from ¾" to 7/8″.

Standard Duty Cup Brushes

These brushes are designed for removing scale, rust, paint, and other surface preparation, including deburring and polishing. A larger format allows coverage of enormous surface areas. Standard-fill materials include steel, chrome steel, brass, and bronze wire, plus abrasive nylon, nylon, and treated or untreated Tampico fiber. A 5/8″-11 threaded arbor hole is standard. Other fill materials and arbor hole sizes are available in a particular order. Recommended maximum safe free speed ranges from 6,000 rpm to 9,000 rpm. Diameters include 3", 4″, 5″, and 6″.

Standard Duty Knot Cup Brushes

These knot cup brushes are used with electric or pneumatic high-speed grinders for heavy-duty cleaning of huge surfaces. Remove weld scale, rust, old paint, and corrosion. Available in multiple formats to fit your job needs:

    • Standard 2/3 twist, single row: flexible and fast cutting
    • Cable twist: extremely rugged cutting action
    • Double row, standard or cable twist: longer life
    • Bridle-banded: reduces flare for the speedier cutting action. Bands are often removed as wire wears.

        How to Choose the proper Wire Brush

        Power brushes are a superb choice for removing rust and oxidations, paint, slag, weld splatter, and other unwanted surface contaminants with angle grinders, bench grinders, or drills. But with numerous options available, how does one choose the proper wire brush for the job?

        Here are three key factors to consider:

        • The type of wire
        • The diameter of the wire
        • The filament configuration

        The Type of Wire

          Wire brushes are available in steel, chrome steel, and brass. Brass is relatively versatile and may be used on almost any project, while steel and chrome steel are best paired with specific material types. Selecting the proper one is as easy as matching the wire type to the fabric in your application.

          The diameter of the wire

            A good rule of thumb to follow would be to pick very fine wire for light-duty jobs and medium to coarse wire for heavy-duty jobs.

            The filament configuration

            Wire cup brush, wheel, and end brushes accompany three options for filament configurations, and every one has its benefits.

            Crimped Wire Brushes: Individual filaments are supported only by one another, creating extra flexibility. This wire cup brush for grinder Ideal for work on irregular surfaces, more refined surface finishing, and light- to medium-duty contaminant removal.

              Standard Twist Knot Wire Brushes: Made with straight wire filaments twisted together to form more rigid rope- or cable-like pieces—the selection for more aggressive applications requiring higher-impact action and a rougher surface finish.
