  • SC-3 Cylinder Shape Radius End PremiumTungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $8.99
    $8.99 - $8.99
    Current price $8.99

    Product Specification Shipping Refund Product Specification SC-3 CYLINDER SHAPE RADIUS END PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SC-3 cylind...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $8.99
    $8.99 - $8.99
    Current price $8.99

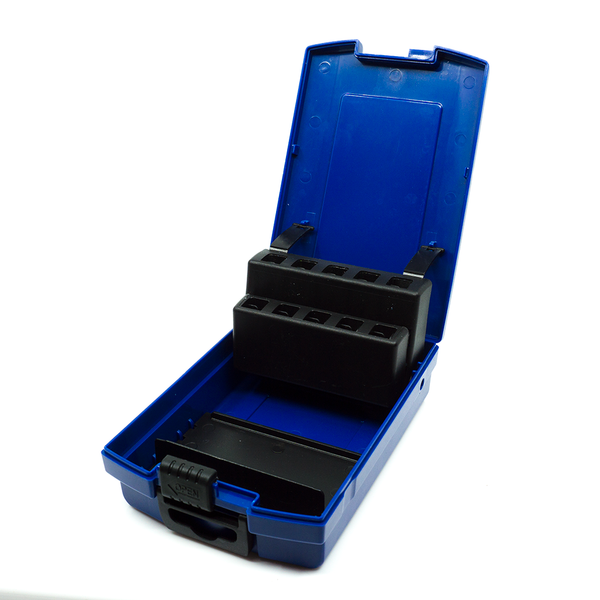

  • Carbide Burr Case

    Original price $8.99 - Original price $8.99
    Original price
    $8.99
    $8.99 - $8.99
    Current price $8.99

    Application Shipping Refund Carbide Burr Case is perfect for all shapes carbide burrs. The case will prevent the burrs from missing or falling w...

    View full details
    Original price $8.99 - Original price $8.99
    Original price
    $8.99
    $8.99 - $8.99
    Current price $8.99
  • SC-5 Cylinder Shape Radius End Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $13.69
    $13.69 - $13.69
    Current price $13.69

      Product Specification Shipping Refund Product Specification SC-5 CYLINDER SHAPE RADIUS END PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SC-5 Cylin...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $13.69
    $13.69 - $13.69
    Current price $13.69
  • SB-3 Cylinder Shape End Cut Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $8.89
    $8.89 - $8.89
    Current price $8.89

    Product Specification Shipping Refund Product Specification SB-3 CYLINDER SHAPE END CUT PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SB-3 cylinder ...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $8.89
    $8.89 - $8.89
    Current price $8.89
  • SC-1 Cylinder Shape Radius End Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $5.49
    $5.49 - $5.49
    Current price $5.49

      Product Specification Shipping Refund Product Specification SC-1 CYLINDER SHAPE RADIUS END PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SC-1 cyl...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $5.49
    $5.49 - $5.49
    Current price $5.49
  • SA-3 Cylinder Shape Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $6.99
    $6.99 - $6.99
    Current price $6.99

    Product Specification Shipping Refund Product Specification SA-3 CYLINDER SHAPE PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SA-3 cylinder shape bu...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $6.99
    $6.99 - $6.99
    Current price $6.99
  • SF-3 Tree Shape - Radius Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $7.39
    $7.39 - $7.39
    Current price $7.39

      Product Specification Shipping Refund Product Specification SF-3 TREE SHAPE - RADIUS PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SF-3 tree shape ...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $7.39
    $7.39 - $7.39
    Current price $7.39
  • SK-5 90° Countersink Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $7.49
    $7.49 - $7.49
    Current price $7.49

    Product Specification Shipping Refund Product Specification SK-5 90° COUNTERSINK PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SK-5 90 degree burrs ...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $7.49
    $7.49 - $7.49
    Current price $7.49
  • SA-1 Cylinder Shape Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $5.49
    $5.49 - $5.49
    Current price $5.49

    Product Specification Shipping Refund Product Specification SA-1 CYLINDER SHAPE PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SA-1 cylinder shape bu...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $5.49
    $5.49 - $5.49
    Current price $5.49
  • SL-3 Taper Shape - Radius Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $10.69
    $10.69 - $10.69
    Current price $10.69

    Product Specification Shipping Refund Product Specification SL-3 TAPER SHAPE - RADIUS PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SL-3 Taper shape...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $10.69
    $10.69 - $10.69
    Current price $10.69
  • SF-5 Tree Shape - Radius Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $11.89
    $11.89 - $11.89
    Current price $11.89

    Product Specification Shipping Refund Product Specification SF-5 TREE SHAPE - RADIUS PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SF-5 tree shape b...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $11.89
    $11.89 - $11.89
    Current price $11.89
  • SB-5 Cylinder Shape End Cut Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $14.99
    $14.99 - $14.99
    Current price $14.99

    Product Specification Shipping Refund Product Specification SB-5 CYLINDER SHAPE END CUT PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SB-5 cylinder ...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $14.99
    $14.99 - $14.99
    Current price $14.99
  • SD-3 Ball Shape Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $5.59
    $5.59 - $5.59
    Current price $5.59

    Product Specification Shipping Refund Product Specification SD-3 BALL SHAPE PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SD-3 ball shape burrs are ...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $5.59
    $5.59 - $5.59
    Current price $5.59
  • SB-1 Cylinder Shape End Cut Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $5.89
    $5.89 - $5.89
    Current price $5.89

    Product Specification Shipping Refund Product Specification SB-1 CYLINDER SHAPE END CUT PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SB-1 cylinder ...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $5.89
    $5.89 - $5.89
    Current price $5.89
  • SA-5 Cylinder Shape Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $14.99
    $14.99 - $14.99
    Current price $14.99

    Product Specification Shipping Refund Product Specification SA-5 CYLINDER SHAPE PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SA-5 Cylinder shape bur...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $14.99
    $14.99 - $14.99
    Current price $14.99
  • SD-5 Ball Shape Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $8.99
    $8.99 - $8.99
    Current price $8.99

    Product Specification Shipping Refund Product Specification SD-5 BALL SHAPE PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SD-5 Ball shape burrs are ...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $8.99
    $8.99 - $8.99
    Current price $8.99
  • SL-4 Taper Shape - Radius Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $14.99
    $14.99 - $14.99
    Current price $14.99

    Product Specification Shipping Refund Product Specification SL-4 TAPER SHAPE - RADIUS PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SL-4 Taper shape...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $14.99
    $14.99 - $14.99
    Current price $14.99
  • SE-3 Oval/Egg Shape Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $7.89
    $7.89 - $7.89
    Current price $7.89

    Product Specification Shipping Refund Product Specification SE-3 OVAL/EGG SHAPE PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SE-3 oval/egg shape bu...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $7.89
    $7.89 - $7.89
    Current price $7.89
  • SJ-5 60° Countersink Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $8.19
    $8.19 - $8.19
    Current price $8.19

    Product Specification Shipping Refund Product Specification SJ-5 60° COUNTERSINK PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SJ-5 60 degree burrs a...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $8.19
    $8.19 - $8.19
    Current price $8.19
  • SG-1 Pointed Tree Shape Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $4.79
    $4.79 - $4.79
    Current price $4.79

      Product Specification Shipping Refund Product Specification SG-1 POINTED TREE SHAPE PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SG-pointed tree s...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $4.79
    $4.79 - $4.79
    Current price $4.79
  • SD-1 Ball Shape Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $4.49
    $4.49 - $4.49
    Current price $4.49

    Product Specification Shipping Refund Product Specification SD-1 BALL SHAPE PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SD-1 ball shape burrs are ...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $4.49
    $4.49 - $4.49
    Current price $4.49
  • SC-3 NF Aluma Cut Cylinder Shape Radius End Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $13.99
    $13.99 - $13.99
    Current price $13.99

    Product Specification Shipping Refund Product Specification SC-3NF CYLINDER SHAPE RADIUS END PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SC-3NF cy...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $13.99
    $13.99 - $13.99
    Current price $13.99
  • SF-1 Tree Shape - Radius Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $4.59
    $4.59 - $4.59
    Current price $4.59

    Product Specification Shipping Refund Product Specification SF-1 TREE SHAPE - RADIUS PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SF-1 Tree shape b...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $4.59
    $4.59 - $4.59
    Current price $4.59
  • SG-3 Pointed Tree Shape Premium Tungsten Carbide Burr

    Original price $0.00 - Original price $0.00
    Original price $0.00
    $7.69
    $7.69 - $7.69
    Current price $7.69

      Product Specification Shipping Refund Product Specification SG-3 POINTED TREE SHAPE PREMIUM TUNGSTEN CARBIDE BURR– ¼” shank SG-3 Pointed tree...

    View full details
    Original price $0.00 - Original price $0.00
    Original price $0.00
    $7.69
    $7.69 - $7.69
    Current price $7.69

Carbide Burrs

Benchmark Abrasives carries a wide range of professional quality carbide burrs, manufactured with top quality, European formulated tungsten carbide blanks.  The special Swiss designed milling machines used to make our burrs ensure sharper cuts that hold their edge longer, delivering unmatched life and quality.

Although we carry a large selection, we may not have your project specific burr.  If you can’t find the burr you are looking for give us a call 1-877-841-1837 or email us; we make custom sizes.

What are Carbide Burrs?

Carbide Burrs are also known as Rotary Burrs and are used to cut, shape, grind, remove sharp edges, burrs, and excess material (deburring). It performs the rapid removal of extra fabric. Ironically, burrs are both referred to as leftover stock chips.

The carbide burrs are often utilized in the removal of uneven edges. Also, carbide burrs are a different sort of tool used on coated abrasives before finishing or polishing.

Carbide burrs are widely used for metalwork, toolmaking, engineering, model engineering, wood carving, jewelry making, welding, chamfering, casting, deburring, grinding, plate port sculpting.

Different Carbide Burr Shapes and what they do.

Guide for following information (Industry designation - shape.  Application; ideal uses)

SA - Cylinder.  Universal Surface Grinding; ideal for contour finishing.

SB - Cylinder with End Cut.  Blind Holes & Inner Contours; ideal for finishing contour and right angled corners.

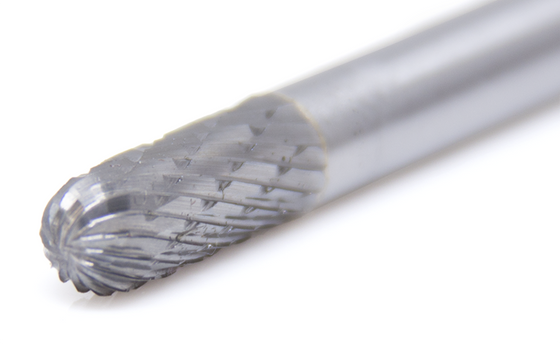

SC - Cylinder with Radius end.  Contouring & Bore Holes; ideal for machining contour and circular arc surfaces.

SD - Ball.  Contouring & Bore Holes; ideal for rounded edge processing, end deburring and end pre-machining before welding.

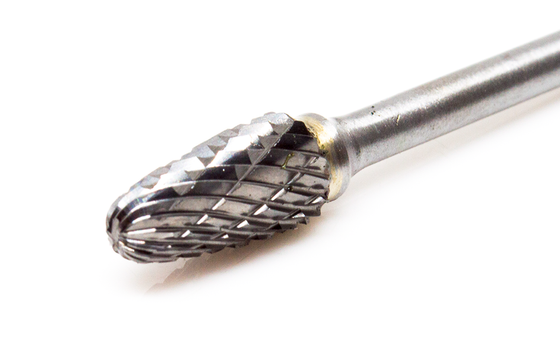

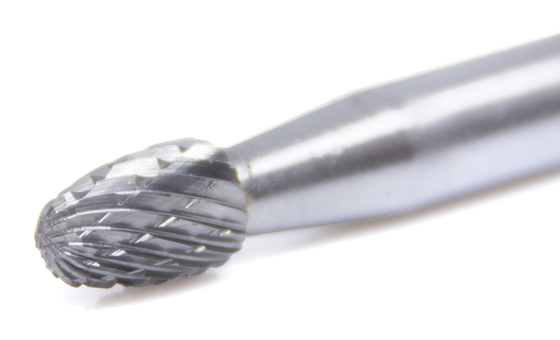

SE - Oval/Egg.  Molds & Contouring; ideal for rounded edge processing.

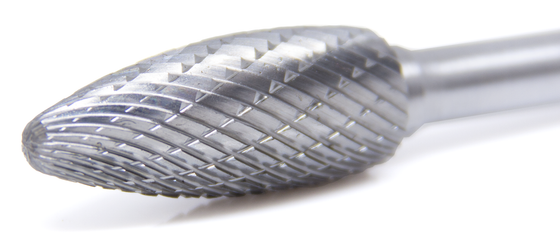

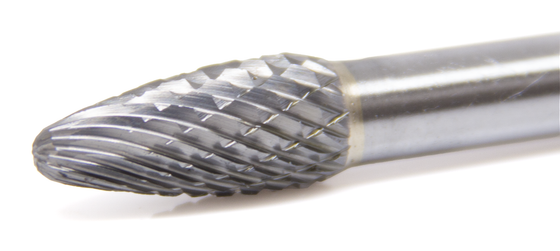

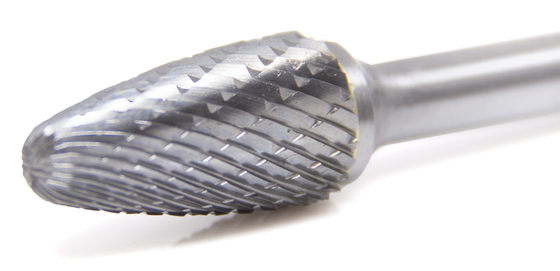

SF - Tree with Radius End.  Molds & Contouring; ideal for rounded edge processing in small places.

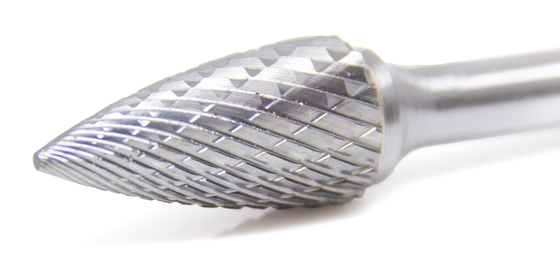

SG - Pointed Tree.  Chamfering & Bore Holes; ideal for processing small places and acute angles.

SH - Flame.  Molds & Contouring; ideal for rounded edge processing.

SJ - 60 degree Counter Sink.  Chamfering, Beveling & Countersinking; ideal for counterboring and chamfering bores with 60 degree angle

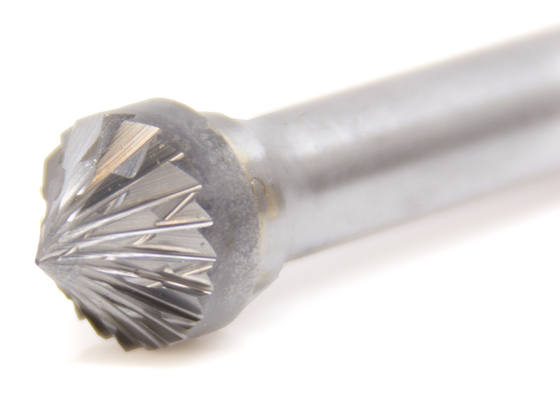

SK - 90 degree Counter Sink.  Chamfering, Beveling & Countersinking; ideal for counterboring and chamfering bores with 90 degree angle

SL  - Taper with Radius End.  Contouring & Difficult to Access Areas; ideal for rounded edge and surface processing in small places.

SM - Pointed Cone.  Conical Holes, Grooves & Model Building; ideal for rounded edge and surface processing in small places.

SN - Inverted Cone.  Inner Edges & conical Profiles; ideal for rearside chamfering.

Universal sizing of carbide burrs

Carbide burrs utilize a universally recognized set of standards for marking sizes and shapes, making identifying the product you need a snap.  The number in the specification of a carbide burr is the diameter of the cutting head.

41 = 1/8” head diameter

42 = 1/8” head diameter

51 = 1/4" head diameter

1 = 1/4" head diameter

3 = 3/8” head diameter

5 = 1/2" head diameter

6 = 5/8” head diameter

7 = 3/4" head diameter

How to read the carbide burr part number or specification.

At first understanding how to carbide burr part numbers can be like reading hieroglyphics, but we’re here to change that for you.  Carbide burrs are broken down into easy-to-understand call outs containing the shape, the size of the cutting head and sometimes an extra letter or two to indicate shaft length.

Example: SA5

SA = the shape (Cylindrical)

5 = the size (5’s are 1/2” cutting head diameter)

Example: SC3L

SC = the shape (Cylinder with Radius End)

3 = the size (3’s are 3/8” cutting head diameter)

L = special length burr (Long Shank burr)

Different types of carbide burr cut patterns and what they are used for.

There are three main types of cut patterns and a few additional less popular cut patterns.  The most commonly found styles are Single Cut Carbide Burrs, Double Cut Carbide Burrs and Aluminum Cut Carbide Burrs (aka Aluma cut).

  1. Single Cut – single cut burrs are a general purpose product suitable for machining cast iron, steel and stainless steel with hardnesses less than HRC60.  Due to the quality of finish our Double Cut burrs leave behind, we don’t stock the single cut burrs.  Contact us for custom orders!
  2. Double Cut – double cut burrs employ a “double cut” or “double tooth” cut pattern to provide versatile cutting action, granular chip break and aggressive stock removal all while keeping a smooth finish and improved operator control.
  3. Aluma Cut – wide cut flutes for fast and easy stock removal without the hassle of loading up.  They are suitable for machining aluminum, nonferrous metals and plastics.

Most manufacturers will identify the cut pattern in their part number with an S for Single Cut, D for Double Cut and NF for Aluma Cut (the NF stands for Non-Ferrous).

Other lesser-known cut types are really for specialty uses.  Here are a list of the specialty cuts we can offer:

  1. Coarse cut
  2. Fine Cut
  3. Tough Cut
  4. Diamond Cut
  5. Chip Break Cut
  6. Steel Cut
  7. INOX Cut

**If you are looking for a specialty cut product, email or call us.

Recommended Operating Speeds

Review the chart below for our recommendations on optimal operating speeds by application and size:

Ferrous Metals

1/8"

1/4"

3/8"

1/2"

5/8"

Steel

60,000 - 90,000

45,000 - 60,000

30,000 - 40,000

22,500 - 30,000

18,000 - 24,000

Hardened Steel

60,000 - 90,000

30,000 - 45,000

19,000 - 30,000

15,000 - 22,500

12,000 - 18,000

Stainless Steel

60,000 - 90,000

30,000 - 45,000

19,000 - 30,000

15,000 - 22,500

12,000 - 18,000

Grey Castings

60,000 - 90,000

22,500 - 60,000

15,000 - 40,000

11,000 - 30,000

9,000 - 24,000

Titanium

45,000 - 90,000

30,000 - 45,000

15,000 - 30,000

15,000 - 22,500

12,000 - 18,000

Mickel

60,000 - 90,000

30,000 - 45,000

19,000 - 30,000

15,000 - 22,500

12,000 - 18,000












Non-Ferrous Metals











Copper

60,000 - 90,000

22,500 - 60,000

15,000 - 40,000

11,000 - 30,000

9,000 - 24,000

Aluminum

30,000 - 90,000

15,000 - 70,000

10,000 - 50,000

7,000 - 38,000

6,000 - 30,000













Other Mateirals











Plastics

30,000 - 90,000

15,000 - 70,000

10,000 - 50,000

7,000 - 38,000

6,000 - 30,000

Acrylics

30,000 - 90,000

15,000 - 70,000

10,000 - 50,000

7,000 - 38,000

6,000 - 30,000



Types of Carbide Burrs you can find at Benchmark Abrasives

  • Double Cut burrs with 1/8” shaft
  • Double Cut burrs with 1/4” shaft
  • Aluminum Cut burrs with 1/8” shaft
  • Aluminum Cut burrs with 1/4” shaft
  • Long Shank Double Cut burrs with 1/4” shaft
  • Burrmaster Sets

Double Cut burrs with 1/8” shaft

Tiny but mighty!  These double cut burrs are great for precision work and intricate details.  The smaller 1/8” shaft fit great in  Dremel® Tools.

  • Cutting Head Diameter Options:1/8” and 1/4”
  • Available Cutting Types: Aluminum cut
  • Head Shapes: Ball, Cylinder, Cylinder with End Cut, Cylinder with Radius End, Flame, Ova/Egg, Pointed Cone, Pointed Tree, Taper with Radius End, Tree with Radius End
  • Shaft Diameters: 1/8”

Tool Compatibility: Die Grinders, Rotary Drills and Dremel® Tools

Double Cut burrs with 1/4” shaft

The 1/4” double cut carbide burrs are the most versatile range of burrs.   Their 1/4" shaft will fit in most Die Grinders and Rotary Drills.

  • Cutting Head Diameter Options: 5/16”, 1/2", 3/8”, 1/4” and 5/8”
  • Available Cutting Types: Double cut
  • Head Shapes: Ball, Cylinder, Cylinder with End Cut, Cylinder with Radius End, Flame, Ova/Egg, Pointed Cone, Pointed Tree, Taper with Radius End, Tree with Radius End, Inverted Cone, 60 Degree Countersink and 90 Degree Countersink
  • Shaft Diameters: 1/4”

Tool Compatibility: Die Grinders and Rotary Drills

Aluminum Cut burrs with 1/8” shaft

All of the benefits of the double cut 1/8” burrs but engineered to meet your softer metal needs!  These Aluminum cut burrs are great for precision work and intricate details.  The smaller 1/8” shaft fit great in Dremel® Tools.

  • Cutting Head Diameter Options:1/4”
  • Available Cutting Types: Aluminum cut
  • Head Shapes: Ball, Cylinder, Cylinder with End Cut, Cylinder with Radius End, Flame, Ova/Egg, Pointed Cone, Pointed Tree, Taper with Radius End, Tree with Radius End
  • Shaft Diameters: 1/8”

Tool Compatibility: Die Grinders, Rotary Drills and Dremel® Tools

Aluminum Cut burrs with 1/4” shaft

All of the benefits of the double cut 1/4” burrs but engineered to meet your softer metal needs!  These Aluma Cut burrs are great for work on Aluminum and other non-ferrous metals.

  • Cutting Head Diameter Options: 5/16”, 1/2", 3/8”, 1/4” and 5/8”
  • Available Cutting Types: Aluminum cut
  • Head Shapes: Ball, Cylinder, Cylinder with End Cut, Cylinder with Radius End, Flame, Ova/Egg, Pointed Cone, Pointed Tree, Taper with Radius End, Tree with Radius End, Inverted Cone, 60 Degree Countersink and 90 Degree Countersink
  • Shaft Diameters: 1/4”

Tool Compatibility: Die Grinders and Rotary Drills

Long Shank Double Cut burrs with 1/4” shaft

Need to reach a hard-to-reach spot?  We carry 6” length shaft double cut burrs for just that reason!

  • Cutting Head Diameter Options: 5/16”, 1/2", 3/8” and 1/4”
  • Available Cutting Types: Double cut
  • Head Shapes: Ball, Cylinder, Cylinder with End Cut, Cylinder with Radius End, Flame, Ova/Egg, Pointed Cone, Pointed Tree, Taper with Radius End, Tree with Radius End
  • Shaft Diameters: 1/4”
  • Shaft Length: 6”

Tool Compatibility: Die Grinders and Rotary Drills

Burrmaster Sets

Benchmark Abrasives offers our selection of carbide burrs in full line sets packed in blow mold cases with foam inserts to keep each burr in it’s own spot.  Grab a burrmaster set and replace the bits one by one as you need!

Burrmaster sets can be found in the following options:

  • Double Cut burrs with 1/8” shaft – 18 piece set
  • Double Cut burrs with 1/4” shaft – 35 piece set
  • Aluminum Cut burrs with 1/8” shaft – 11 piece set
  • Aluminum Cut burrs with 1/4” shaft – 14 piece set



Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare
