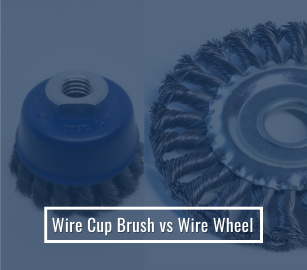

Wire Cup Brush vs. Wire Wheel: Right Tool for Metal Preparation

When it comes to surface preparation, deburring, and finishing metal, wire brushes are indispensable tools in manufacturing industries and machining shops. While both wire cup brushes and wire wheels are popular choices for these tasks, they are designed for different applications and surface areas. Understanding their unique characteristics and optimal uses is key to achieving efficient and high-quality results.

This guide will break down the differences between wire cup brushes and wire wheels, explain their specific applications, and provide essential tips for selecting and using the right tool.

Wire Brushes and Wheels: The Fundamentals

Wire brushes, whether in cup or wheel form, are the go-to choice for tasks like weld cleaning, especially when removing spatter and other contaminants before a final finish or subsequent weld pass. The fundamental principle is that the tips of the wire filaments do the work, functioning like tiny hammers rapidly hitting and preparing the surface.

Crucially, applying the correct pressure is vital for power brush performance. Excessive pressure flexes and bends the wires, preventing the tips from effectively working and leading to early wire breakage.

Wire Cup Brushes: Designed for Broad Surfaces

Power brushes provide the speed and efficiency necessary to finish cleaning and surface preparation applications quickly and efficiently. Once you remove the coating from a surface, like epoxy, paint, or rubber, coated abrasives have a bent load—in other words, the fabric being removed packs between the grains and builds up, stopping their ability to perform. An influence brush's ability to "self-clean" makes it the most straightforward choice for these cleaning applications. Wire cup brushes for concrete feature hard bristles

When choosing an influence brush, you've got several knot styles, wire gauges, and trim length options. By changing one or more of those characteristics, you'll fine-tune brush performance for a selected application. Cable-twist brushes are also twisted to the idea but have a more comprehensive profile, which will quickly cover more area for fill passes. Flared at the top, standard twist brushes offer a wider footprint and better conformability.

Crimped-wire brushes provide less aggression and conformability, making them an excellent choice for paint and rust removal and deburring. Crimped-wire brushes also leave a uniform "orange peel" finish so that they are an honest choice for surface preparation and paint adhesion. It is important to understand how to use a wire cup brush for better efficiency and finish.

Primary Applications for Wire Cup Brushes

• Removing rust from large metal panels.
• Stripping paint and heavy coatings.
• Cleaning weld scale from extensive areas.
• Surface preparation on broad, flat surfaces before painting or coating.
• Cleaning concrete and masonry.

Wire Wheel Brushes: Precision for Tighter Areas

Wire wheel brushes are circular brushing tools designed to be used perpendicular to the surface. They are generally thinner than cup brushes and are mounted on grinders or bench grinders. Wire wheels are ideal for detailed or intricate work on small surfaces. Like cup brushes, wire wheels come in various wire types (crimped, knotted, stringer bead) that dictate their aggressiveness.

They are ideal for cleaning narrow gaps, grooves, or the inside of pipes, as well as light deburring.

Primary Applications for Wire Wheel Brushes

• Cleaning weld seams and spatter in narrow joints.
• Deburring the edges of cut metal pieces.
• Rust removal from small components or intricate shapes.
• Cleaning in grooves or tight corners.
• Polishing and finishing small metal parts.

How to Choose the Perfect Wire Brush (Cup or Wheel)

When choosing a product for surface preparation and weld cleaning, consider the bottom material. Generally speaking, choose a steel brush to wash carbon and mild steel, and a stainless brush for stainless, aluminum, and exotic metals. Brushes are also available in copper and brass to stop sparks when necessary.

• For coated or bonded abrasives, alumina provides the foremost cost-effective option for general-purpose grinding. More intricate, more durable grains like zirconia alumina and ceramic maintain sharpness and resist heat, making them a more sensible choice for more aggressive grinding applications.
• Finally, consider the dimensions and orientation of the fabric to be cleaned. Cleaning the fillet pass of a weld requires a different tool than cleaning an outsized, flat surface. For instance, a cup brush features a significantly larger footprint and can cover an outsized area.

Related Article: Wire Wheel vs Cup Brush vs End Brush

How to Use a Wire Brush for Best Performance & Safety?

Proper usage is as important as choosing the right brush.

• Speed and Size. Choose an appropriately sized product for the tool. Ensure the utmost safe RPM marked on the wire or abrasive wheel is more prominent than or adequate for the utmost operating RPM on the tool. When selecting high-performance ceramic abrasives, concentrate on tool speed. Tools with lower power can't maintain the specified speed and thus don't provide the complete advantages of high-performance, higher-priced products.
• Pressure. When operating wire brushes, you shouldn't need to push harder because the bristles should work. Applying excessive pressure to the comb prevents the ideas from hitting the surface. If an influence brush isn't performing to expectation, consider changing the knot, increasing the wire gauge, or shortening the trim length. A standard complaint about wire brushes is wire loss, and therefore, the leading cause, in many cases, is improper use or excessive pressure.
• Orientation. For best performance and longevity, both wheel brushes and bonded abrasive cutting wheels must be oriented perpendicular to the work surface.
• Time. All products are designed to be moved across the surface. Once you use an abrasive product, don't dwell in one spot because it will cause pitting, gouging, increased heat, and reduced surface finish.

Conclusion

Choosing the right wire brush is key to getting the best results from abrasives and power tools. Whether you choose a wire cup brush for broad surface cleaning or a wire wheel for precision work, always follow best practices to maximize product life, improve operator safety, and significantly increase your productivity and efficiency. Doing so will help you complete jobs faster, saving both time and money for a better bottom line.
