Product Specification
USA MADE BLACK & GOLD DRILL BIT SET - 29 PIECE
Built for serious shop work, this USA Made 29-Piece Black & Gold Drill Bit Set gives you every fractional size from 1/16" through 1/2" in precise 1/64" increments — all in one professional set. Made from M2 high-speed steel, these bits combine the toughness and cutting performance needed for everyday fabrication, maintenance, repair, and production drilling with a Black & Gold finish designed to help resist wear and corrosion.
Each bit features a 135° split point for faster, more accurate starts with less walking, while sizes 3/16" and larger use three-flat shanks to help resist slipping in the chuck under load. Whether you are drilling steel, aluminum, sheet metal, wood, or other supported materials, this set puts 29 commonly used fractional sizes at your fingertips in a USA-made steel indexing case built for organized, dependable shop use.
Product Specifications
| Specification |
Details |
| Set Size |
29 Pieces |
| Size Range |
1/16"–1/2" |
| Size Increments |
1/64" |
| Material |
M2 High-Speed Steel |
| Finish |
Black & Gold |
| Point |
135° Split Point |
| Length Class |
Jobber |
| Flute Style |
Spiral |
| Shank |

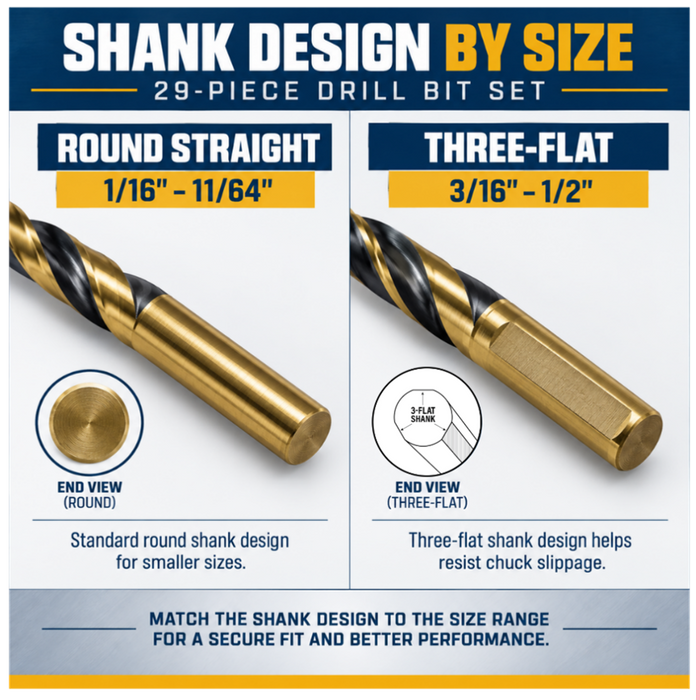

Round through 11/64"; Three-Flat from 3/16" |
| Country of Origin |
USA |
| Storage |
USA-Made Steel Index |
Features
- USA-made 29-piece fractional drill-bit set
- M2 high-speed steel for dependable general-purpose drilling
- Complete 1/16" through 1/2" size range in 1/64" increments
- Black & Gold finish designed to help resist wear and corrosion
- Heat-treated M2 high-speed steel for lasting shop performance
- 135° split points help reduce starting wander
- Spiral flutes help clear chips while drilling
- Precision-ground, one-piece construction for consistent drilling performance
- Round straight shanks through 11/64"
- Three-flat shanks from 3/16" through 1/2" help resist slipping in the chuck
- Jobber-length design balances reach and rigidity
- USA-made steel indexing case keeps all 29 sizes organized and protected
Included Sizes
One drill bit of each fractional size from 1/16" through 1/2" in 1/64" increments:
1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", and 1/2".
Applications & Performance
- General-purpose drilling in mild and low-carbon steel
- Sheet metal drilling with proper work support
- Aluminum drilling with appropriate speed, feed, and chip clearance
- PVC drilling where heat is controlled
- MDF drilling with proper backing and dust control
- Oak and maple drilling with support at the exit surface
- Fabrication, maintenance, production, repair, and general shop drilling
- Applications requiring closely spaced fractional sizes from 1/16" through 1/2"
The 135° split point helps each bit establish the hole with less walking, while spiral flutes provide a path for chip evacuation during drilling. The heat-treated M2 steel and Black & Gold finish make this set a dependable choice for everyday shop drilling.
Materials
- Mild and low-carbon steel
- Sheet metal
- Aluminum
- PVC
- MDF
- Oak
- Maple
Machine Compatibility
This 29-piece set includes straight-shank drill bits ranging from 1/16" through 1/2". Machine compatibility depends on the installed chuck securely gripping the selected bit and on the machine's drilling capacity for the material being worked. Use rotary drilling mode and select the proper speed and feed for the material and bit diameter. Confirm the machine’s drilling capacity for the material and its available speed range; chuck fit alone does not establish suitability for every application.
Compatible examples include:
-
RIKON® 30-212VS Drill Press — supports the full 1/16"–1/2" set
-
WEN® 4214T Drill Press — supports the full 1/16"–1/2" set
-
Grizzly® G7943 Drill Press — supports the full 1/16"–1/2" set
-
Grizzly® G7942 Drill Press — supports the full 1/16"–1/2" set
-
Makita® XFD13Z Drill/Driver — use when the installed chuck securely grips the selected shank
-
Milwaukee® 3403-20 Drill/Driver — use when the installed chuck securely grips the selected shank
-
Milwaukee® 3404-20 Hammer Drill/Driver — use when the installed chuck securely grips the selected shank; select drilling-only mode
-
DEWALT® DCD800B Drill/Driver — use when the installed chuck securely grips the selected shank
-
Bosch® GSR18V-400 Drill/Driver — for supported metal drilling sizes through 3/8"; verify chuck grip for the selected bit
-
Bosch® GSR12V-300 Drill/Driver — for sizes through 3/8"; verify chuck grip for the selected bit
For machines limited to a 3/8" chuck or documented metal-drilling capacity, the larger bits in the set require a machine with greater capacity. Always confirm the installed chuck securely grips the selected shank before use.
Safety Tips
- Wear appropriate eye protection when drilling.
- Secure the workpiece with suitable clamps or a vise before drilling.
- Keep loose clothing, hair, and other items away from rotating parts.
- Use rotary drilling mode and turn off hammer action on hammer drills.
- Match drilling speed and feed pressure to the material and bit diameter.
- Keep the drill aligned with the bit to reduce side loading.
- Clear chips as needed and avoid excessive heat buildup.
- Support sheet metal, wood, and plastic properly to control breakthrough.
- Confirm the chuck securely grips the selected shank before starting.
