Product Specification
7” x 5/8”-11 THREADED ARROW TYPE DIAMOND GRINDING CUP WHEEL

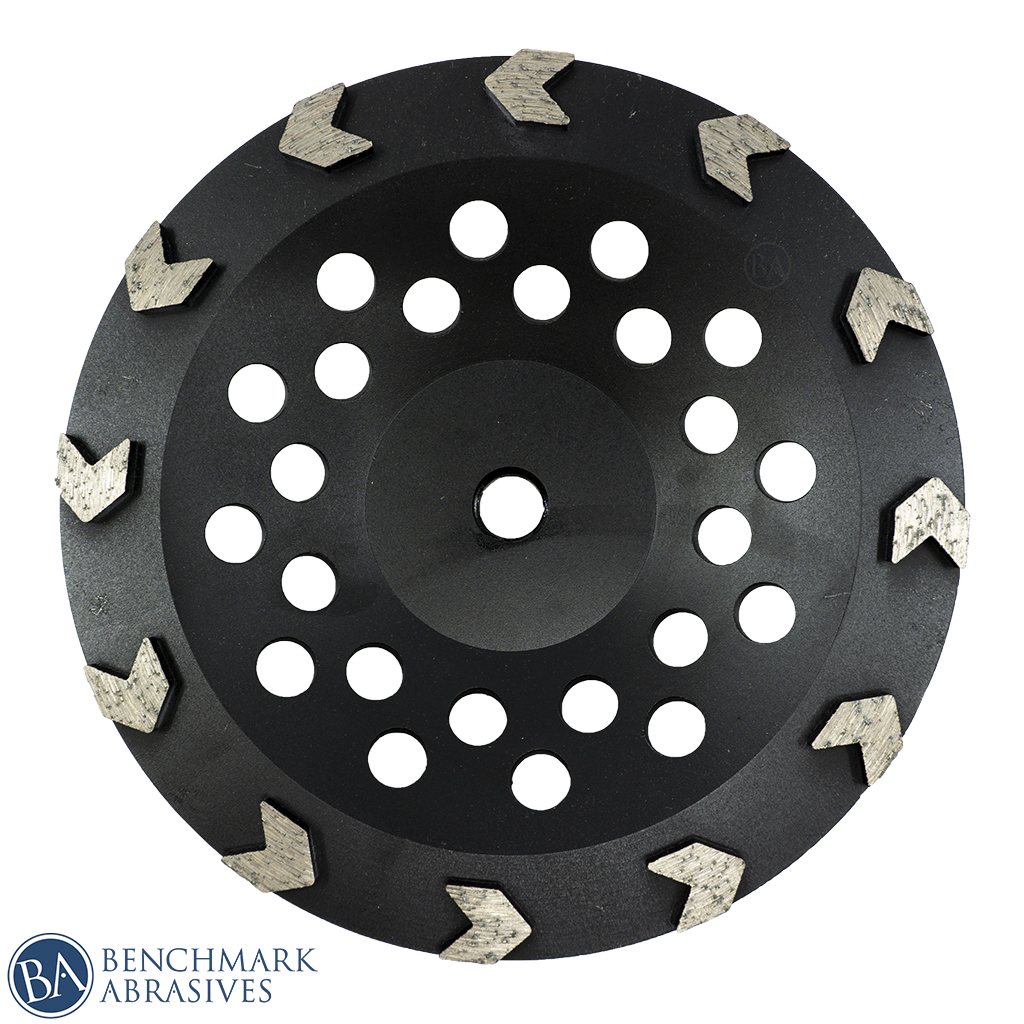

Built for aggressive surface grinding, leveling, and heavy stock removal, the Benchmark Abrasives 7” Arrow Type Diamond Grinding Cup Wheel is designed for concrete, granite, marble, masonry, and natural stone. Its arrow-style diamond segments create a concentrated grinding pattern for removing high spots, correcting uneven surfaces, and preparing hard mineral surfaces for coating, finishing, or additional surface work.

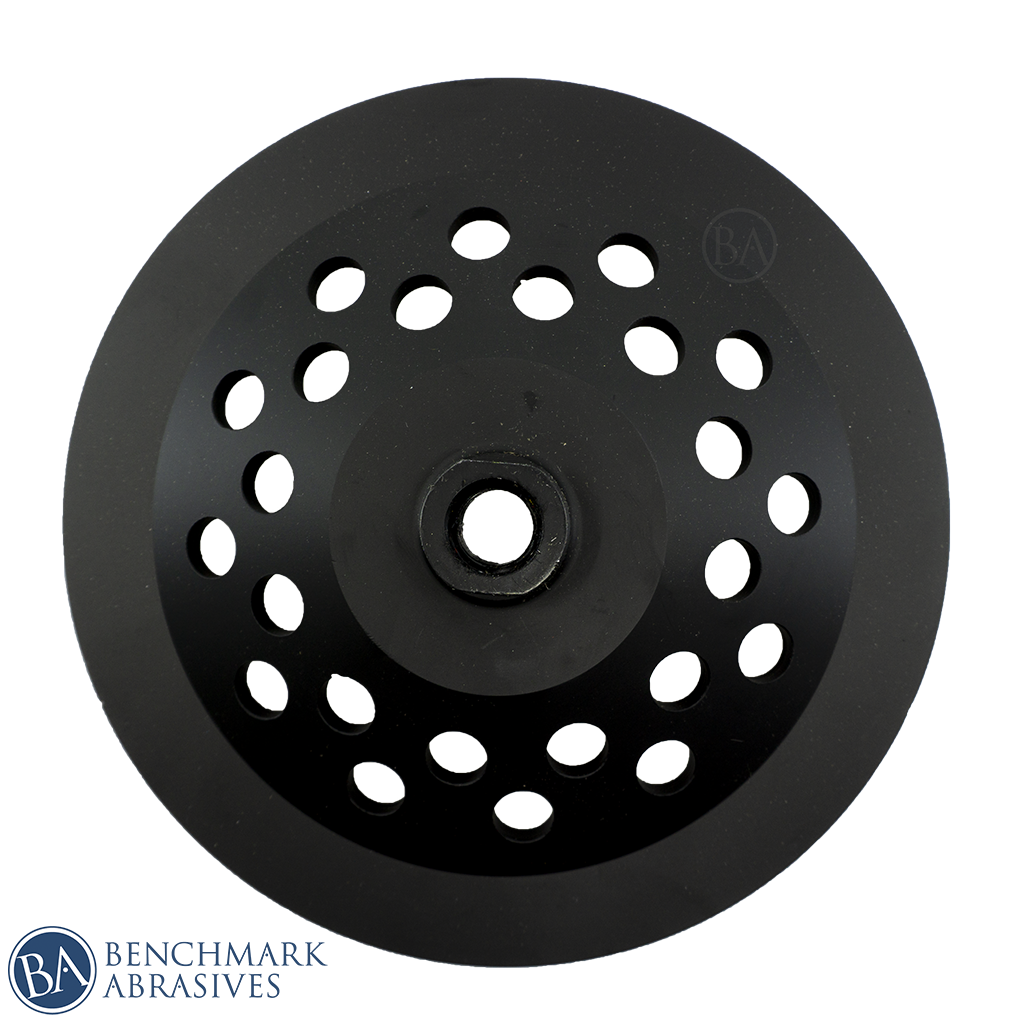

The larger 7” diameter provides greater grinding coverage for larger surface-preparation jobs, while the 7 mm diamond segments provide a tall diamond-bearing wear section. A direct-thread 5/8"-11 UNC hub mounts to compatible grinding equipment, making this wheel well suited for concrete preparation, construction, renovation, restoration, and stone work.
Product Specifications
| Specification |
Details |
| Diameter |
7" |
| Wheel Type |
Arrow Type Diamond Grinding Cup Wheel |
| Operation |
Surface Grinding |
| Diamond Segment Height |
7 mm |
| Arbor |
5/8"-11 UNC Threaded |
| Maximum RPM |
8,700 RPM |
| Quantity |
1 Wheel |
Features
- Arrow-style diamond segments for aggressive surface grinding
- Designed for leveling and heavy stock removal on hard mineral surfaces
- 7 mm diamond segment height
- 7" diameter provides increased grinding coverage
- Direct-thread 5/8"-11 UNC mounting
- Rated up to 8,700 RPM
- Suitable for concrete, granite, marble, masonry, and natural stone
- Useful for removing high spots and correcting uneven surfaces
- Designed specifically for surface grinding rather than cutting
- Well suited for larger concrete-preparation, renovation, and stone-grinding jobs
Applications & Performance
Designed for surface grinding and material removal on hard masonry and stone surfaces.
- Concrete surface leveling
- Removing high spots
- Smoothing uneven concrete
- Masonry surface preparation
- Granite grinding
- Marble grinding
- Natural stone surface preparation
- Larger-area surface correction
- Surface preparation before coatings or finishing
- Construction and renovation work

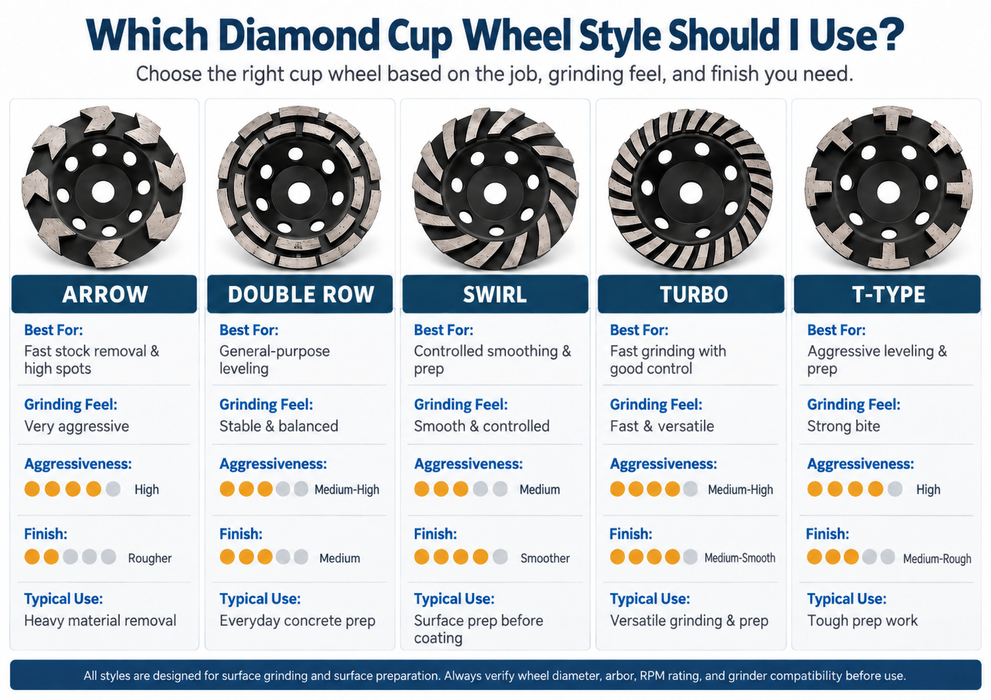

The arrow-style segment arrangement concentrates the diamond grinding surfaces into an aggressive pattern, while the larger 7” diameter increases coverage for broader surface-grinding applications.
Materials
- Concrete
- Granite
- Marble
- Masonry
- Natural Stone
Machine Compatibility
For use with 7” angle grinders.
Compatible examples include:
-
Makita® GA7011C 7" Angle Grinder — 6,000 RPM; 5/8"-11 threaded mounting with a compatible 7" surface-grinding dust shroud. For dry grinding when permitted by the wheel marking.
Other models may also fit. Match the mounting, speed rating and required guard to your tool.
Safety Tips
- Never exceed the wheel’s maximum rated speed of 8,700 RPM.
- Inspect the diamond segments, steel body, and threaded hub before each use.
- Do not use a cracked, damaged, bent, or excessively worn cup wheel.
- Confirm the grinder uses the correct 5/8"-11 threaded spindle.
- Thread the cup wheel fully and securely onto the spindle according to the machine manufacturer’s instructions.
- Use a guard or dust shroud designed for diamond cup-wheel grinding.
- Maintain controlled contact with the work surface and avoid excessive pressure.
- Do not use this cup wheel as a cut-off blade.
- Use only the grinding method marked on the wheel and approved for the machine. Never add water to a dry-use grinder.
- Use appropriate eye, hearing, respiratory, hand, and other required personal protective equipment.
- Grinding concrete, masonry, granite, marble, and other silica-containing materials can generate respirable silica dust. Use appropriate water-delivery or dust-extraction controls.
