Product Specification

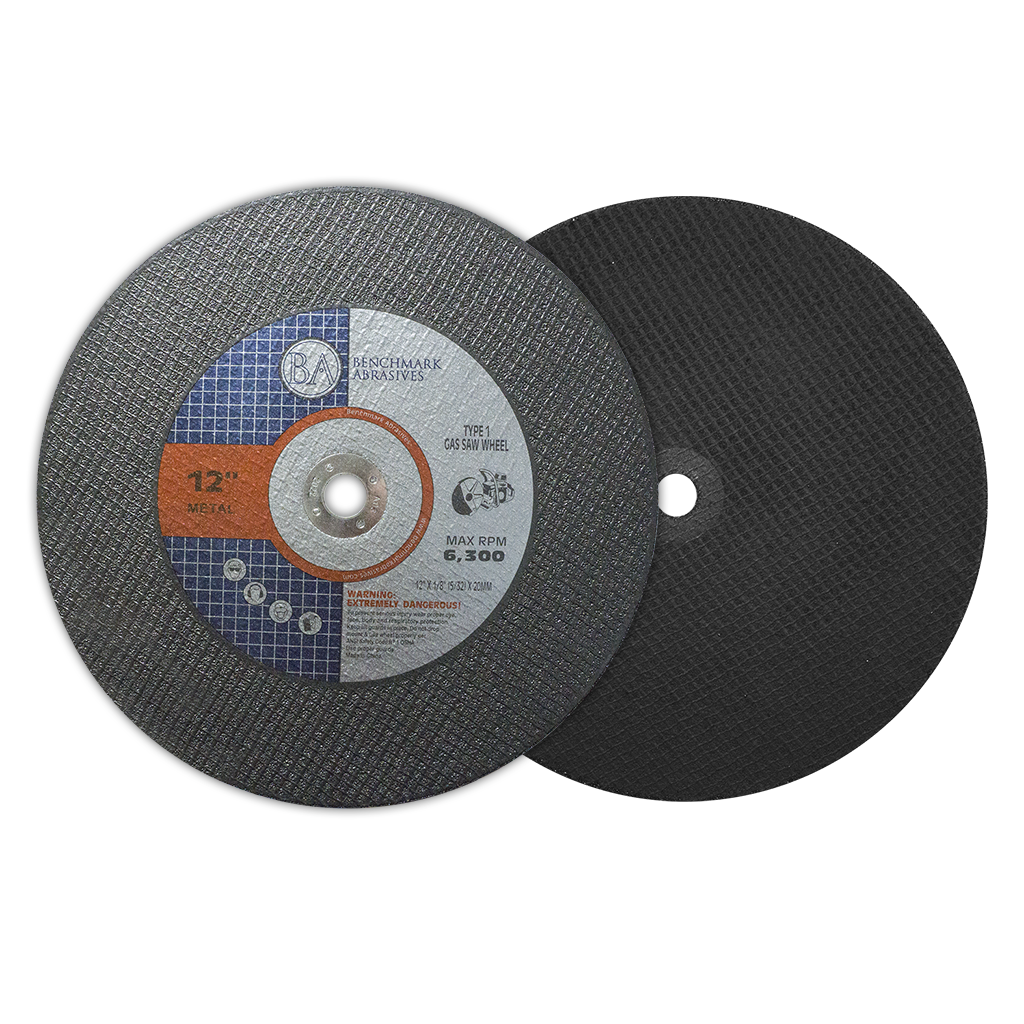

12" X 1/8" (5/32") X 20MM T1 HIGH SPEED GAS SAW WHEEL - 10 PACK
Benchmark Abrasives 12" x 1/8" (5/32") x 20mm T1 High Speed Gas Saw Wheels are built for demanding portable metal cutting where reach, cutting depth, and jobsite mobility matter. The 12" diameter gives fabricators, contractors, maintenance crews, and repair professionals the capacity to cut larger pipe, tubing, structural steel, and fabricated assemblies that are beyond the practical range of smaller cutting wheels.
Made with aluminum oxide abrasive grain, these flat Type 1 wheels are designed specifically for cutting steel, stainless steel, and other approved metals. Their substantial profile supports controlled edge cutting through demanding metalwork on high-speed gas saws.
The 20mm arbor is designed for compatible 12" gas-powered cut-off saws, including the Husqvarna® K 770 II in its 12" configuration with the correct 20mm mounting setup. Use the proper guard and flanges for dry bonded-abrasive cutting. The wheel is rated to a maximum of 6,300 RPM.
Quantity: 10 Cut-Off Wheels
Product Specifications
| Specification |
Details |
| Diameter |
12" |
| Thickness |
1/8" (5/32") |
| Arbor |
20mm |
| Wheel Type |
Type 1 Flat Gas Saw Wheel |
| Abrasive Grain |
Aluminum Oxide |
| Maximum RPM |
6,300 |
| Operation |
Cutting Only |
| Material Focus |
Steel, Stainless Steel & Approved Metals |
| Quantity |
10 Wheels |
Product Features
- Large 12" diameter for greater cutting reach and depth
-
1/8" (5/32") thickness for high-speed gas saw applications
-
Aluminum oxide abrasive grain for steel, stainless steel, and approved metals
- Flat Type 1 construction engineered strictly for edge cutting
-
20mm arbor for compatible gas saw mounting systems
- Rated up to 6,300 RPM
- Built for portable fabrication, field cutting, maintenance, and repair
- Professional 10-wheel pack
Materials & Applications
Recommended Materials:
- Steel
- Stainless Steel
- Other approved metals
Best For:
- Structural steel
- Metal pipe
- Tubing
- Fabricated assemblies
- Steel sections
- Equipment repair
- Industrial maintenance
- Field fabrication
- Heavy-duty portable metal cutting
Machine Compatibility
Designed for compatible 12" gas-powered cut-off saws that accept a 20mm arbor bonded abrasive wheel and are approved for Type 1 metal-cutting wheel operation.
Compatible examples include:
- STIHL® TS 410
- Husqvarna® K 770 II — 12" configuration
- Other compatible 12" gas-powered cut-off saws using a 20mm arbor and approved bonded-abrasive cutting setup
Always verify the machine's approved wheel diameter, arbor configuration, guard, flanges, mounting hardware, and operating requirements before use. Confirm wheel thickness and any minimum wheel-speed rating specified by the saw manufacturer, too.
Cutting Performance
The 12" wheel diameter provides substantially more cutting depth than conventional angle-grinder wheels, making it well suited for larger pipe, tubing, structural steel, and fabricated components.
Its aluminum oxide abrasive construction is designed for steel, stainless steel, and other approved metals. Use the wheel on the edge only and allow the abrasive to perform the cut without twisting, side loading, or excessive force.
Safety Tips
- Use this wheel for cutting only. Never grind with the side of the wheel.
- Never exceed the wheel's 6,300 RPM maximum speed.
- Use only on machines specifically approved for 12" bonded abrasive cut-off wheels.
- Confirm the machine accepts a 20mm arbor.
- Always use the correct guard, flanges, and mounting hardware specified by the saw manufacturer.
- Do not substitute stationary chop-saw wheels for gas-saw wheels.
- Do not assume a gas saw's ability to cut concrete means this wheel is approved for concrete or masonry.
- Use dry. Do not apply water to this bonded abrasive wheel.
- Inspect the wheel before use and do not operate cracked, chipped, damaged, or improperly stored wheels.
- Wear appropriate eye and face protection, hearing protection, gloves, respiratory protection where required, and other application-specific PPE.
