Product Specification

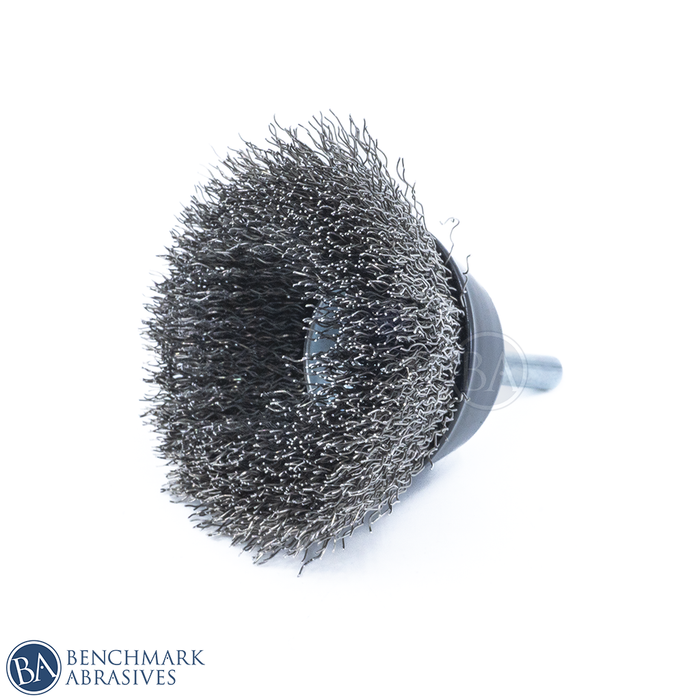

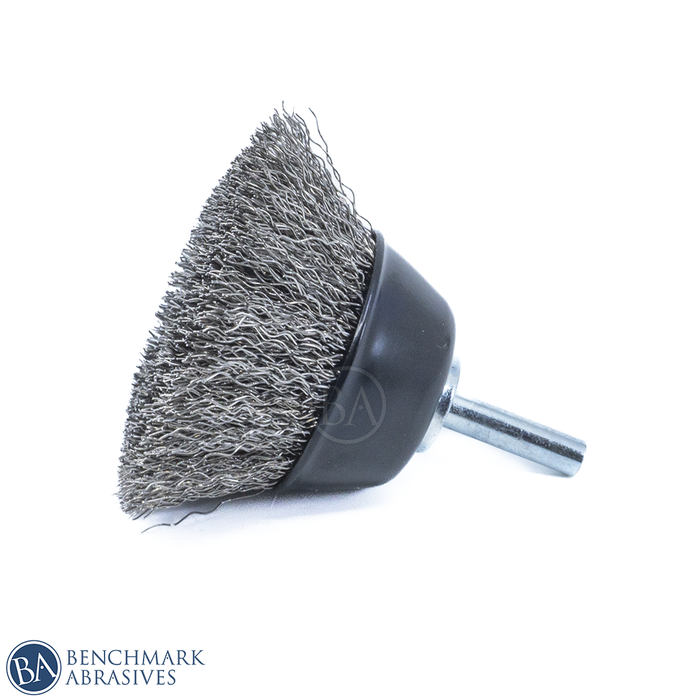

2-3/8" X 1/4" SHAFT MOUNTED CRIMPED CUP - STAINLESS STEEL
When you need more cleaning coverage than a small mounted cup but still want the control and accessibility of a 1/4" shank-mounted brush, the 2-3/8" x 1/4" Shaft Mounted Crimped Cup - Stainless Steel gives you a versatile option for localized stainless cleaning. Its stainless steel crimped wire is designed for light rust, oxidation, surface deposits, and general cleanup while helping shops maintain dedicated stainless tooling.
The crimped cup construction allows the wire to flex as it contacts the workpiece, helping the brush conform to mild contours, edges, and irregular surfaces. Compared with the smaller 1-1/2" cup, the 2-3/8" diameter provides more working coverage per pass while remaining far more maneuverable than a full-size threaded cup brush.
A 1/4" straight shank fits compatible chuck- and collet-equipped rotary tools, and the brush carries a 13,000 RPM maximum rating. It is a strong choice for stainless fabrication, maintenance, repair, and general metal cleaning when you want a useful balance of coverage, control, and access.
Product Specifications
| Specification |
Details |
| Diameter |
2-3/8" |
| Wire Material |
Stainless Steel |
| Wire Style |
Crimped |
| Brush Type |
Shaft-Mounted Cup Brush |
| Shank |
1/4" Straight |
| Maximum RPM |
13,000 |
Features
-
2-3/8" cup profile provides more surface coverage than smaller mounted cups
-
Flexible crimped-wire construction follows contours and irregular surfaces
- Stainless steel wire for stainless fabrication and contamination-sensitive applications
- Well suited for light rust, oxidation, deposits, and surface contamination
- Useful for localized cleaning and light deburring
-
1/4" straight shank for compatible drills and rotary tools
- 13,000 RPM maximum rating
- Good balance of coverage, control, and maneuverability
- Useful around fabricated parts, brackets, weldments, frames, and assemblies
- More flexible and conformable than knotted-wire brushes
Applications & Performance
This shaft-mounted crimped cup is designed for localized cleaning and light deburring with increased surface coverage.
Common applications include:
- Light rust removal
- Oxidation cleanup
- Surface contamination removal
- Light deburring
- Cleaning stainless brackets and hardware
- Cleaning fabricated stainless components
- Light weld-area cleanup
- Edge and corner cleaning
- Cleaning moderately contoured surfaces
- Preparing localized areas before coating or finishing
- Maintenance and repair work
The larger 2-3/8" cup profile keeps more wire in contact with the workpiece than smaller shaft-mounted cups, helping clean broader areas without giving up the control of a 1/4" shank-mounted accessory.
Use light to moderate pressure and let the wire tips do the cleaning.
Materials
Especially suited for:
- Stainless steel
- Stainless steel weldments
- Stainless fabricated components
- Other compatible metals where stainless wire brushing is appropriate
Keep this brush dedicated to stainless steel work when preventing iron cross-contamination is important. A stainless brush previously used on carbon steel can pick up ferrous particles and transfer them back to stainless.
Store stainless and carbon steel brushes separately for contamination-sensitive applications.
Machine Compatibility
The 1/4" straight shank fits standard three-jaw drill chucks, making this brush a convenient choice for cleaning and surface preparation with compatible corded and cordless drills. It can be secured directly in suitable 3/8" and 1/2" drill chucks without a separate arbor adapter.
Compatible examples include:
-
DEWALT® DWD110 — corded drill with a 3/8" chuck.
-
Milwaukee® 0240-20 — corded drill with a 3/8" chuck.
-
Makita® HP1640 — corded hammer drill with a 1/2" chuck; use rotation-only mode.
-
Bosch® GSR12V-300 — cordless drill/driver with a 3/8" chuck.
-
RYOBI® PCL206 — cordless drill/driver with a 1/2" chuck.
Other machines may be compatible. Confirm secure shank engagement and clearance for the working brush. Other rotary drills or brush-approved collet tools may be suitable when their accessory instructions, capacity and speed match. Do not use hammer or impact action.
Safety Tips
- Never exceed the brush's 13,000 RPM maximum speed.
- Use only with a machine that permits this type and diameter of wire brush.
- Insert and securely clamp the 1/4" shank to the depth specified by the tool and brush manufacturers; keep unsupported shank extension within their limits.
- Use in rotary mode only; do not use with impact operation.
- Inspect the brush before every use and replace it if damaged, excessively worn, loose, or distorted.
- Maintain adequate clearance around the rotating brush and normal wire flare.
- Wear proper PPE, including eye and face protection, hearing protection, gloves, appropriate clothing, and respiratory protection when required.
- Keep bystanders away from the work area and direction of rotation.
- Use light to moderate pressure. Excessive force can flatten the crimped wire and accelerate wear.
- Allow the tool to reach operating speed before contacting the workpiece.
- Keep stainless brushes dedicated to stainless work when cross-contamination matters.
- Follow all operating and safety instructions for both the power tool and wire brush.
