Product Specification
3" X 1/8" X 3/8" T1 PREMIUM CUT-OFF WHEEL - 25 PACK
Benchmark Abrasives 3" x 1/8" x 3/8" T1 Premium Cut-Off Wheels are built for heavier-duty metal cutting where a thicker wheel provides added support through the cut. The 3" diameter keeps the setup compact and maneuverable, while the 1/8" thickness gives this wheel a more substantial profile than the thinner .040" and 1/16" options in the same family.
Made with aluminum oxide abrasive grain, these flat Type 1 wheels are designed for cutting steel, stainless steel, and other approved metals. They are well suited for fabrication, welding, maintenance, automotive, and repair work where durability and controlled cutting are more important than achieving the narrowest possible kerf.
The 3/8" arbor gives this wheel excellent versatility across compatible 3" cut-off tools and straight die grinders. Pair it with the Benchmark Abrasives BM-M38_1 Cut-Off Wheel Mandrel for use with compatible straight die grinders, including the Benchmark Abrasives Straight Pneumatic Die Grinder, when the complete setup meets the required wheel, mandrel, speed, mounting, and guarding requirements.
Bottom line, these cut off wheels offer LESS cutting resistance for fast work, LESS work piece waste, LESS vibration, LESS burrs and sparks and LESS dust than the competition

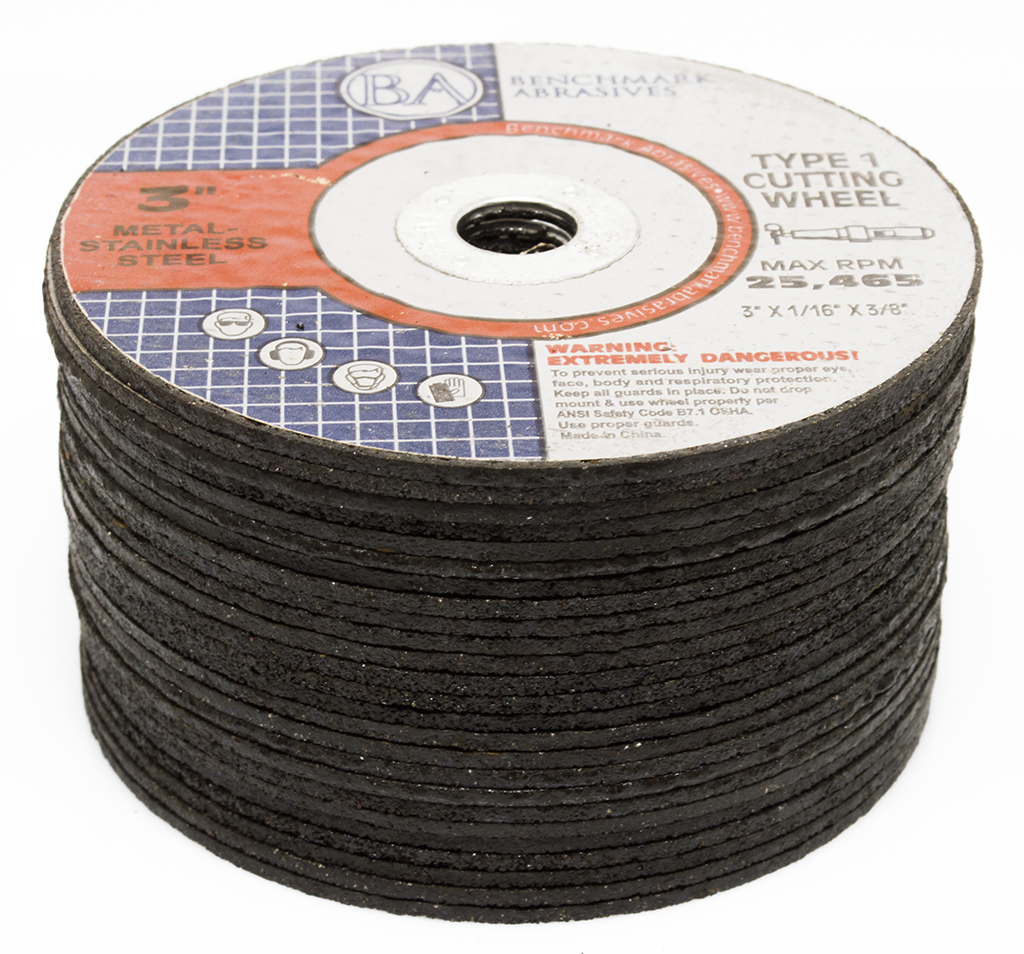

Quantity: 25 Cut-Off Wheels
Product Specifications
| Specification |
Details |
| Diameter |
3" |
| Thickness |
1/8" |
| Arbor |
3/8" |
| Wheel Type |
Type 1 Flat Cut-Off Wheel |
| Abrasive Grain |
Aluminum Oxide |
| Maximum RPM |
25,000 |
| Operation |
Cutting Only |
| Quantity |
25 Wheels |
Product Features
-
1/8" thickness for a more substantial cutting wheel profile
- Compact 3" diameter for controlled cutting and improved access
-
Aluminum oxide abrasive grain for steel, stainless steel, and approved metals
- Flat Type 1 construction designed specifically for edge cutting
-
3/8" arbor for compatible cut-off tools and mandrel-mounted straight die grinders
- Rated up to 25,000 RPM
- Compatible with the Benchmark Abrasives BM-M38_1 Cut-Off Wheel Mandrel
Materials & Applications
Recommended Materials:
- Steel
- Stainless Steel
- Other approved metals
Best For:
- Metal fabrication
- Cutting tubing and pipe
- Cutting sheet and plate
- Trimming bolts and fasteners
- Weldment work
- Automotive and equipment repair
- Maintenance applications
- General-purpose metal cutting
Machine Compatibility
Designed for compatible 3" guarded cut-off tools and straight die grinders that meet the wheel's diameter, arbor, speed, mounting, and guarding requirements.
For straight die grinder use, pair the 3/8" arbor wheel with the Benchmark Abrasives BM-M38_1 Cut-Off Wheel Mandrel using the correct 3/8" mounting option.
Compatible examples include:
-
Milwaukee® 2522-20 3" Compact Cut-Off Tool using the proper 3/8" mounting hardware, original guard, and flanges
-
Benchmark Abrasives Straight Pneumatic Die Grinder with the BM-M38_1 Cut-Off Wheel Mandrel and correct 3/8" mounting option
Always verify wheel diameter, arbor size, maximum RPM, mandrel rating, mounting hardware, and guard configuration before operation.
Safety Tips
- Use this wheel for cutting only. Do not grind with the side of the wheel.
- Never exceed the wheel's 25,000 RPM maximum speed.
- Verify the rated speed of the complete tool, mandrel, and wheel setup before operation.
- Always use the correct guard, flanges, mandrel, and mounting hardware for the machine.
- Inspect the wheel before use and do not operate cracked, chipped, damaged, or improperly stored wheels.
- Keep the wheel straight in the cut and avoid excessive side pressure.
- Do not force the wheel through the workpiece.
- Wear appropriate eye and face protection, hearing protection, gloves, and other PPE required for the application.
