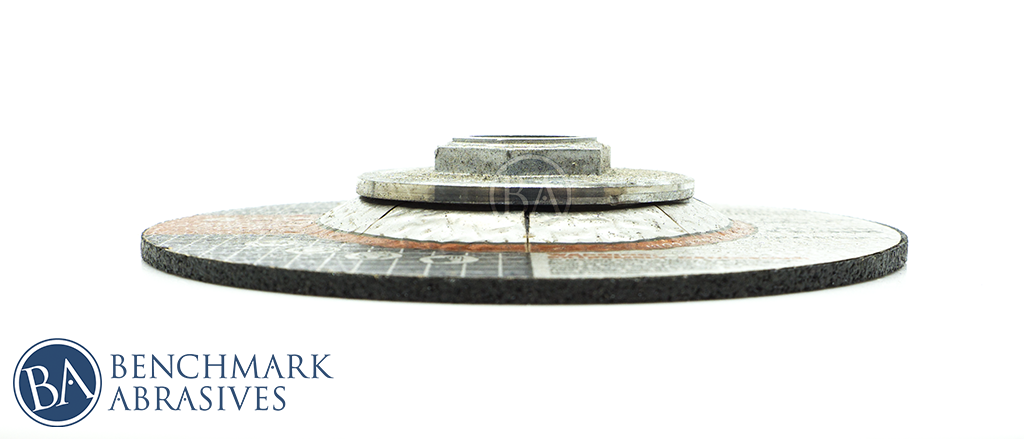

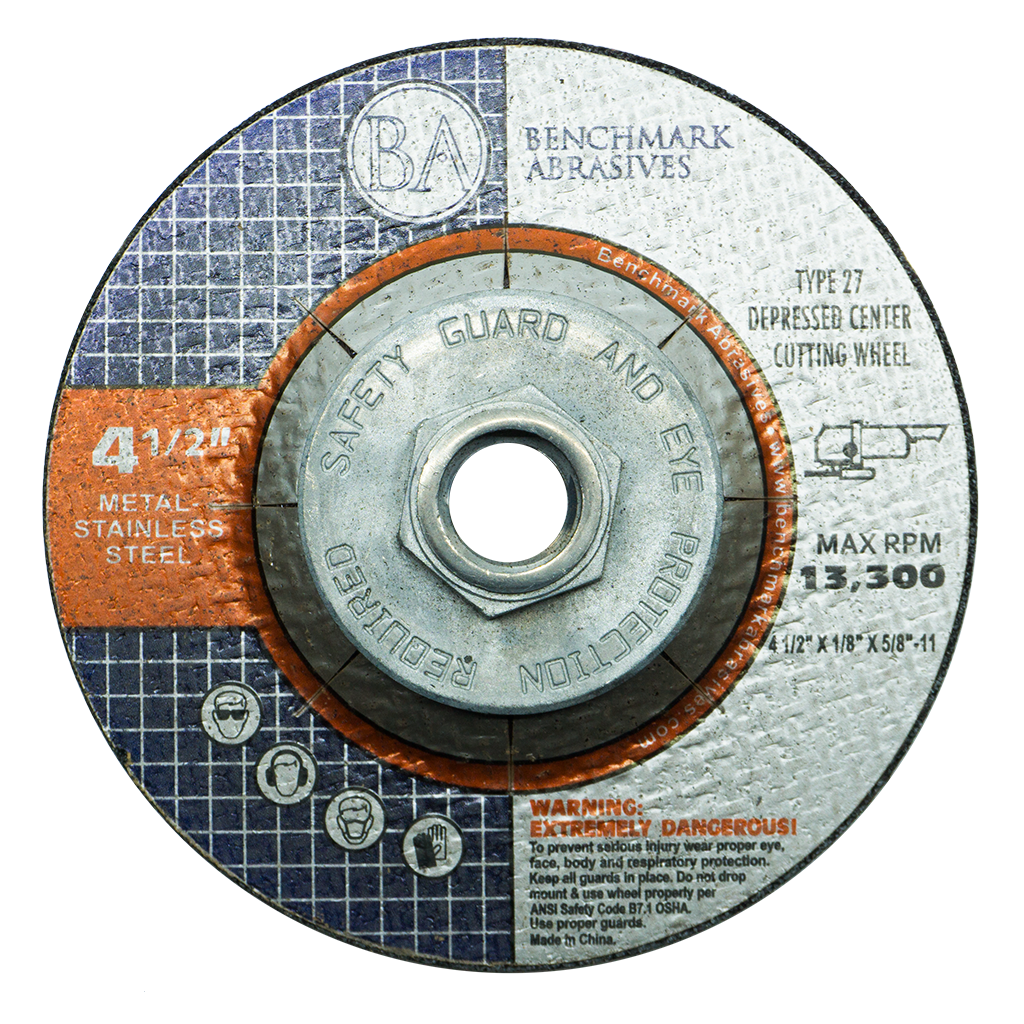

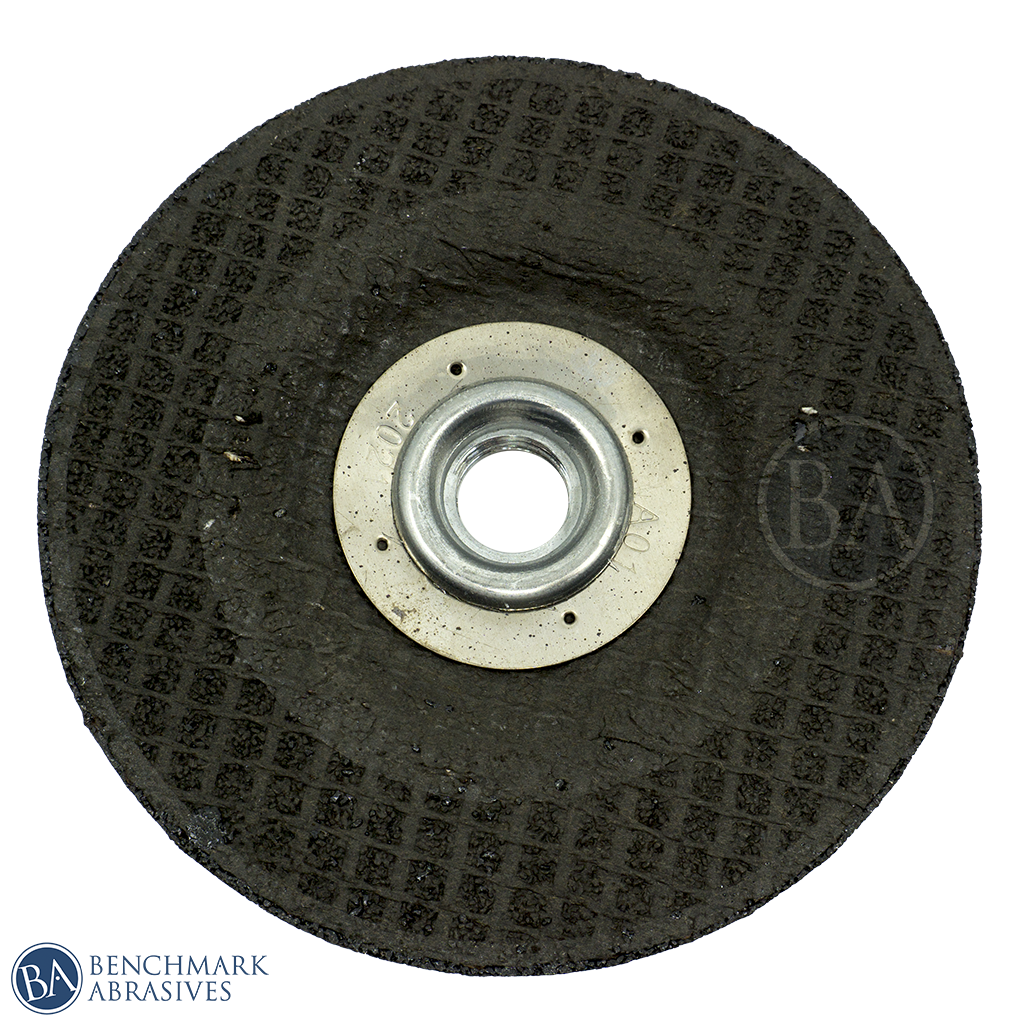

4-1/2" X 1/8" X 5/8"-11 T27 Pipeline Wheel - 10 Pack

Benchmark Abrasives 4-1/2" x 1/8" x 5/8"-11 T27 pipeline wheels are built for the demanding cut-and-grind work common in welding, pipe fabrication, structural steel, and field repair. Unlike thin cut-off wheels that are limited strictly to edge cutting, this 1/8" pipeline wheel is designed for both cutting and light grinding, giving fabricators a versatile wheel for moving from the cut directly into cleanup and light material removal.

Made with aluminum oxide abrasive grain, the Type 27 depressed-center construction combines a substantial 1/8" wheel profile with the convenience of a 5/8"-11 threaded hub. It is designed for steel, stainless steel, and other approved metals and is especially useful for pipe, tubing, weldments, structural components, and fabrication work where reducing abrasive changes can save time.

The threaded hub mounts directly onto compatible 4-1/2" angle grinders with a 5/8"-11 spindle, including the Benchmark Abrasives 4-1/2" angle grinder. With a maximum rating of 13,500 RPM, this wheel provides a convenient hubbed option for cutting and light grinding when the proper guard and machine setup are used.

Bottom line, these cut off wheels offer LESS cutting resistance for fast work, LESS work piece waste, LESS vibration, LESS burrs and sparks and LESS dust than the competition.

Quantity: 10 Pipeline Wheels

Product Features

• Combination-duty design for cutting and light grinding
• 1/8" thickness provides more wheel body than thin cut-off wheels
• 5/8"-11 threaded hub for direct mounting on compatible angle grinders
• Type 27 depressed-center profile for pipeline and fabrication applications
• Aluminum oxide abrasive grain for steel, stainless steel, and approved metals
• 4-1/2" diameter for maneuverable shop and field work
• Rated up to 13,500 RPM
• Hubbed design simplifies installation compared with plain-arbor wheels

Materials & Applications

Recommended Materials:

• Steel
• Stainless Steel
• Other approved metals

Best For:

• Pipe fabrication
• Tubing
• Weldments
• Structural steel
• Cutting metal sections
• Light weld cleanup
• Bevel and edge cleanup
• Field fabrication
• Maintenance and repair work

Machine Compatibility

Designed for compatible 4-1/2" angle grinders with a 5/8"-11 spindle that are approved for Type 27 cutting and light-grinding applications.

Compatible examples include:

• Benchmark Abrasives BMT-AGBC4570 4-1/2" Angle Grinder (11,000 RPM)
• Makita® 9557PB / 9557PBX1 (11,000 RPM)
• DEWALT® DWE402 (11,000 RPM)
• Bosch® GWS10-45 (11,500 RPM)
• Metabo® WEPBA 17-125 Quick RT DS (10,000 RPM, North American version)
• Milwaukee® 2880-20 (8,500 RPM)

Use the manufacturer's hubbed-wheel mounting instructions, with full 5/8"-11 thread engagement and sufficient guard clearance. Do not clamp the hub between plain-arbor wheel flanges.

Use the guard and Type 27 mounting setup specified for the operation. Cutting and light grinding may require different guards; a wheel change may not be needed, but a guard change can be. Other models may also be compatible when they meet the same wheel and setup requirements.

Cutting & Grinding Performance

The 1/8" pipeline design separates this wheel from thin Type 27 cut-off wheels. It is specifically intended for cutting and light grinding, allowing operators to cut through the workpiece and then perform light edge, bevel, or weld cleanup without immediately changing abrasives.

The 5/8"-11 threaded hub makes wheel changes straightforward and eliminates the separate flange arrangement used with 7/8" arbor wheels. For heavier stock removal or sustained face grinding, use a dedicated Type 27 grinding wheel.

Safety Tips

• This wheel is approved for cutting and light grinding.
• Do not use it as a substitute for a dedicated heavy-grinding wheel.
• Never exceed the wheel's 13,500 RPM maximum speed.
• Confirm the grinder uses a compatible 5/8"-11 spindle.
• Always use the proper guard for the wheel shape and operation.
• Make sure the threaded hub is fully and correctly engaged before use.
• Inspect the wheel before use and do not operate cracked, chipped, damaged, or improperly stored wheels.
• Keep the wheel controlled during cutting and avoid excessive twisting or side loading.
• Wear appropriate eye and face protection, hearing protection, gloves, and other PPE required for the application.
