4” Convex Wood Carving Tungsten Carbide Disc

4" CONVEX WOOD CARVING TUNGSTEN CARBIDE DISC

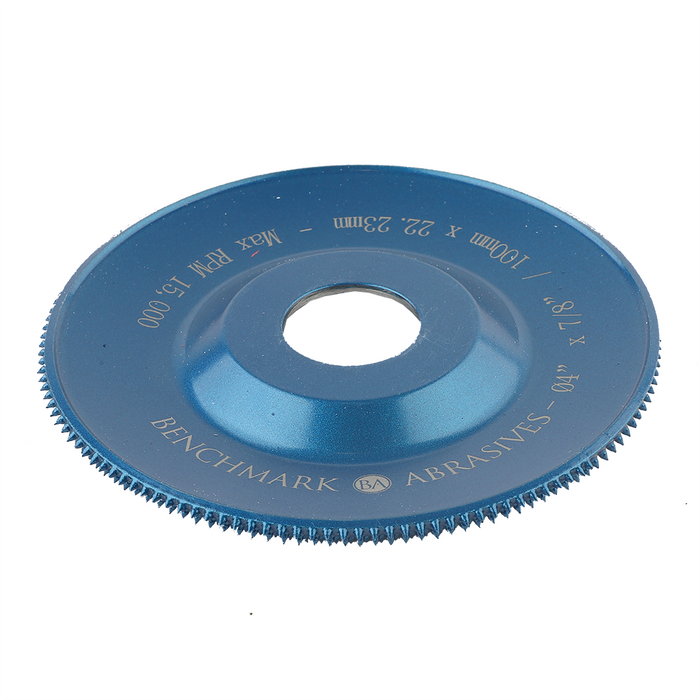

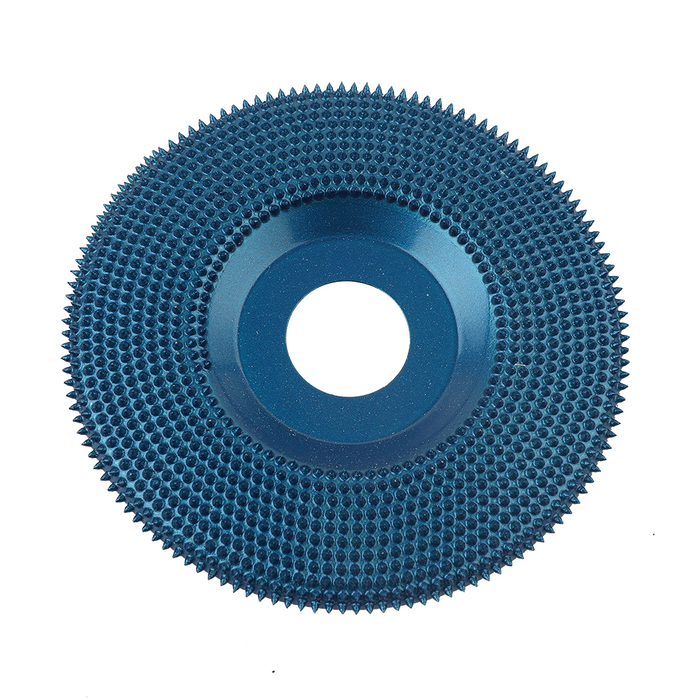

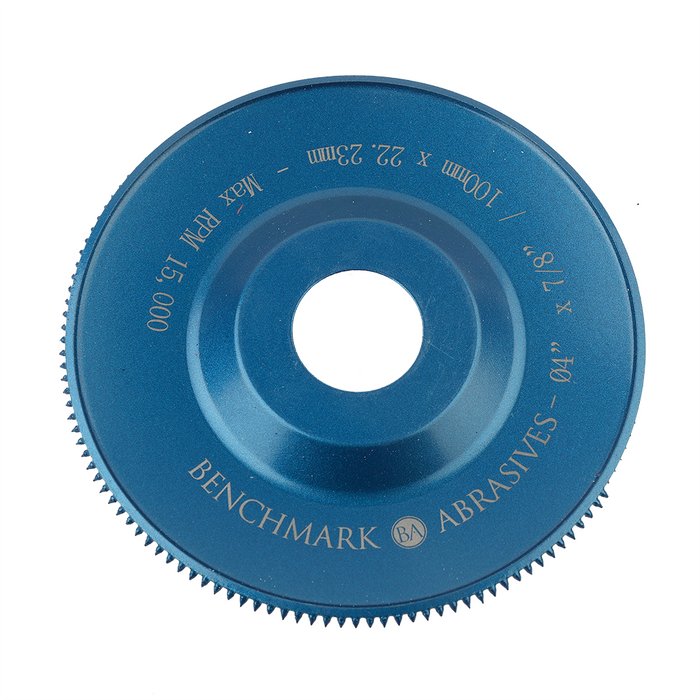

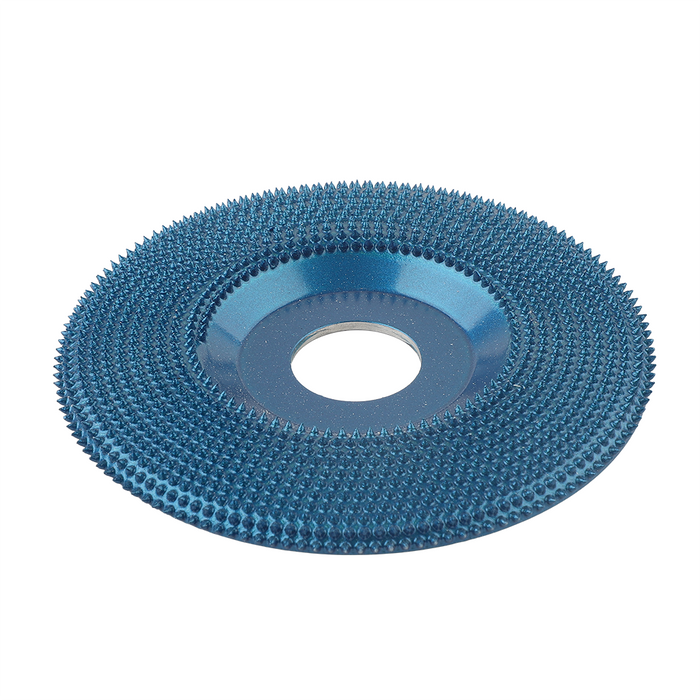

The 4" convex wood carving tungsten carbide disc is built for fast, aggressive rough shaping and controlled stock removal on compatible 4-1/2" to 5" angle grinders. Its broad 4" tungsten carbide cutting surface covers more area with each pass, making it especially effective for shaping large workpieces, hollowing bowls and cavities, contouring broad surfaces, sculpting, and removing heavy material where a narrow burr offers less surface coverage.

The structured carbide teeth provide a powerful cutting surface for early-stage forming, while the convex profile helps the disc follow curved surfaces and work into shallow recesses without sacrificing broad surface coverage. The 7/8" arbor hole fits the grinder’s compatible flange and clamping system. Designed for rough shaping rather than final finishing, this disc works on softwoods, hardwoods, foam, plastics, and drywall before transitioning to sanding or surface-finishing abrasives.

Product Specifications

Features

• 4" broad cutting surface for shaping larger areas and workpieces.
• Convex profile supports contouring, hollowing, and curved surface shaping.
• Tungsten carbide cutting surface designed for aggressive rough material removal.
• 7/8" arbor hole for use with compatible angle grinder flange systems.
• Provides greater surface coverage than narrow carving burrs.
• Designed for rough shaping and initial forming before sanding and finishing.
• Use with light pressure and controlled passes for better tool control.

Applications

The 4" convex profile is particularly useful for:

• Rough shaping large workpieces
• Contouring broad surfaces
• Hollowing bowls and cavities
• Freehand carving and sculpting
• Shaping curved surfaces and shallow recesses
• Removing material from thick stock
• Foam shaping and modeling
• Preparing surfaces for subsequent sanding

Materials

Suitable for rough shaping on:

• Softwoods: Pine, spruce, cedar
• Hardwoods: Oak, maple, beech
• Foam
• Plastics
• Drywall

Machine Compatibility

Designed for compatible 4-1/2" to 5" angle grinders with a maximum rated speed of 15,000 RPM or less.

The disc uses a 7/8" arbor hole and must be properly located and securely clamped using the grinder's compatible flange and nut system.

Compatible examples include:

• Benchmark Abrasives 4-1/2" Corded Angle Grinder - 5/8"-11 spindle thread, 11,000 RPM
• Makita® 9557PB - 5/8"-11 spindle thread, 11,000 RPM
• Makita® 9564CV - 5/8"-11 spindle thread, 2,800-10,500 RPM
• Bosch® GWS8-45 - 5/8"-11 spindle thread, 11,000 RPM

Confirm that the grinder accepts this 4" disc with the correct locating flange, clamping nut and guard clearance.

Safety Tips

• Never exceed the 15,000 RPM maximum.
• Use the disc dry only.
• Apply light pressure and allow the carbide cutting surface to remove material.
• Make controlled passes rather than forcing the disc into the workpiece.
• Secure the workpiece before beginning.
• Verify that the disc is properly located on the grinder flange and securely clamped before use.
• Keep all required machine guards in place and ensure adequate accessory clearance.
• Always wear appropriate PPE, including safety glasses, hearing protection, respiratory protection, and hand protection.
• Do not use on electric drills, small rotary tools, or machines with incompatible mounting systems.
• This is a rough-shaping tool. Follow with appropriate sanding abrasives to achieve the desired final surface.
