Product Specification

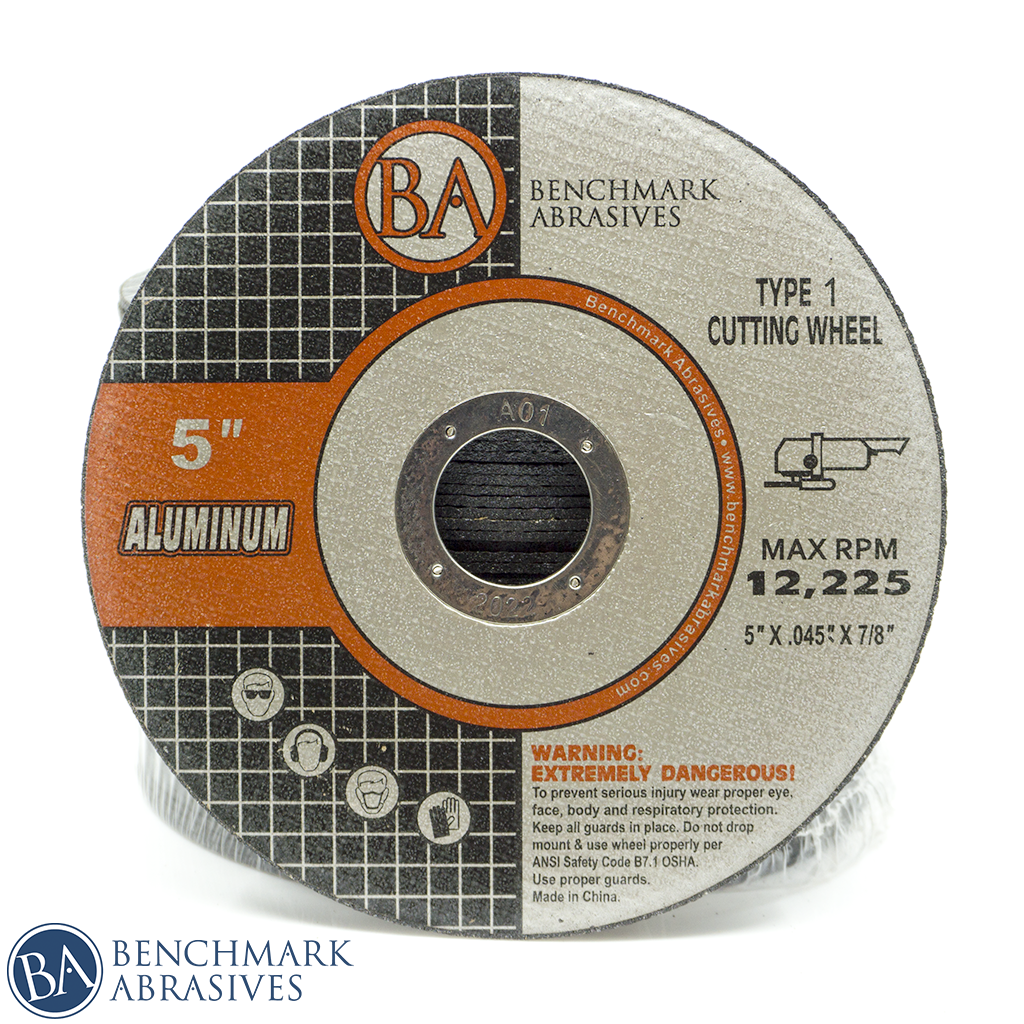

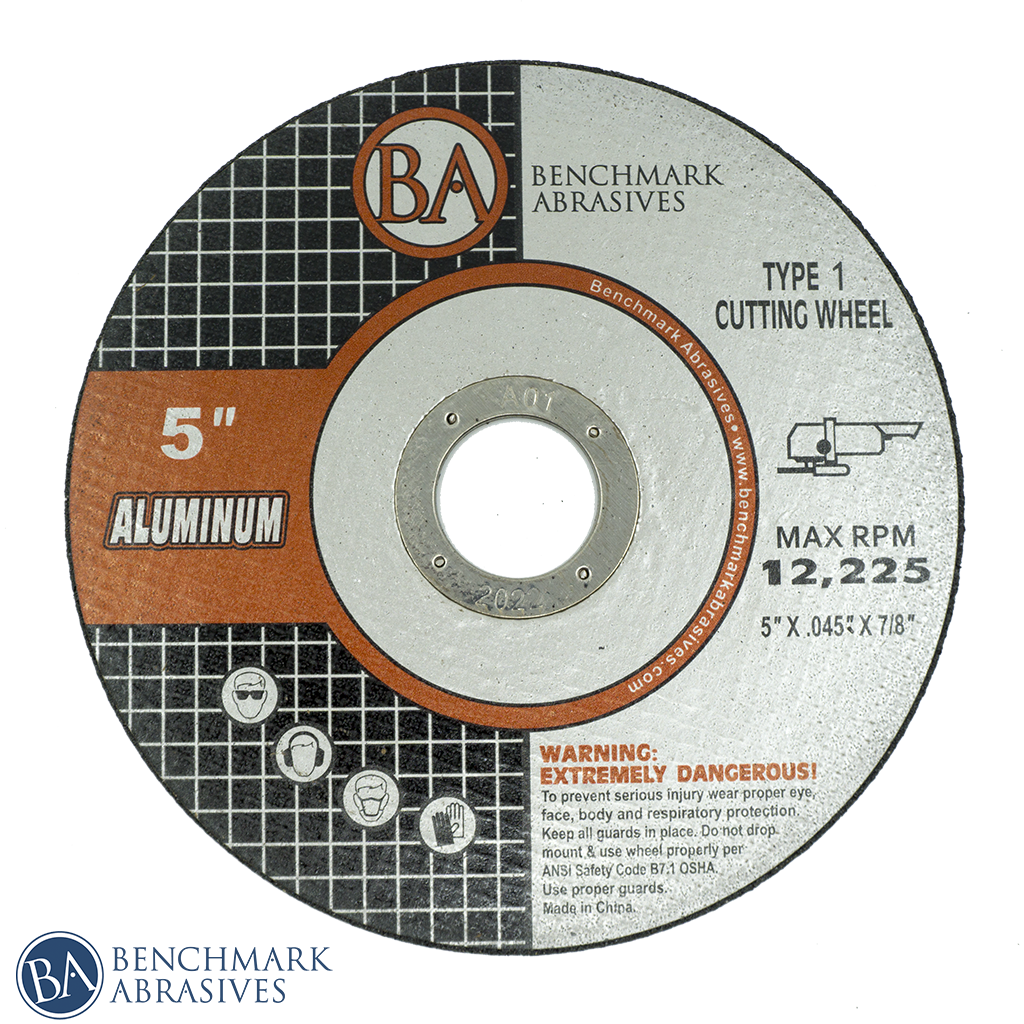

5" X .045" X 7/8" T1 THIN CUT-OFF WHEEL FOR ALUMINUM - 25 PACK
Benchmark Abrasives 5" x .045" x 7/8" T1 thin cut-off wheels for aluminum are built for fast, controlled cutting of aluminum and other approved nonferrous metals with the added reach of a 5" wheel. The thin .045" profile keeps the kerf narrow while the larger diameter provides more cutting depth than a 4-1/2" wheel, making it a strong choice for fabrication, automotive, maintenance, and repair work.
The wheel uses an aluminum oxide and silicon carbide abrasive blend formulated for aluminum and other approved nonferrous applications. Its flat Type 1 construction is designed strictly for edge cutting, making it well suited for aluminum sheet, tubing, extrusions, fabricated parts, and other applications where efficient cutting and good control are important.
With a 7/8" arbor and a 12,225 RPM maximum rating, this wheel is designed for compatible 5" angle grinders equipped for Type 1 cut-off wheel use. Because wheel diameter matters as much as arbor size, use it only on grinders specifically rated for 5" wheels and fitted with the proper cut-off guard, flanges, and mounting hardware.
Bottom line, these cut off wheels offer LESS cutting resistance for fast work, LESS work piece waste, LESS vibration, LESS burrs and sparks and LESS dust than the competition

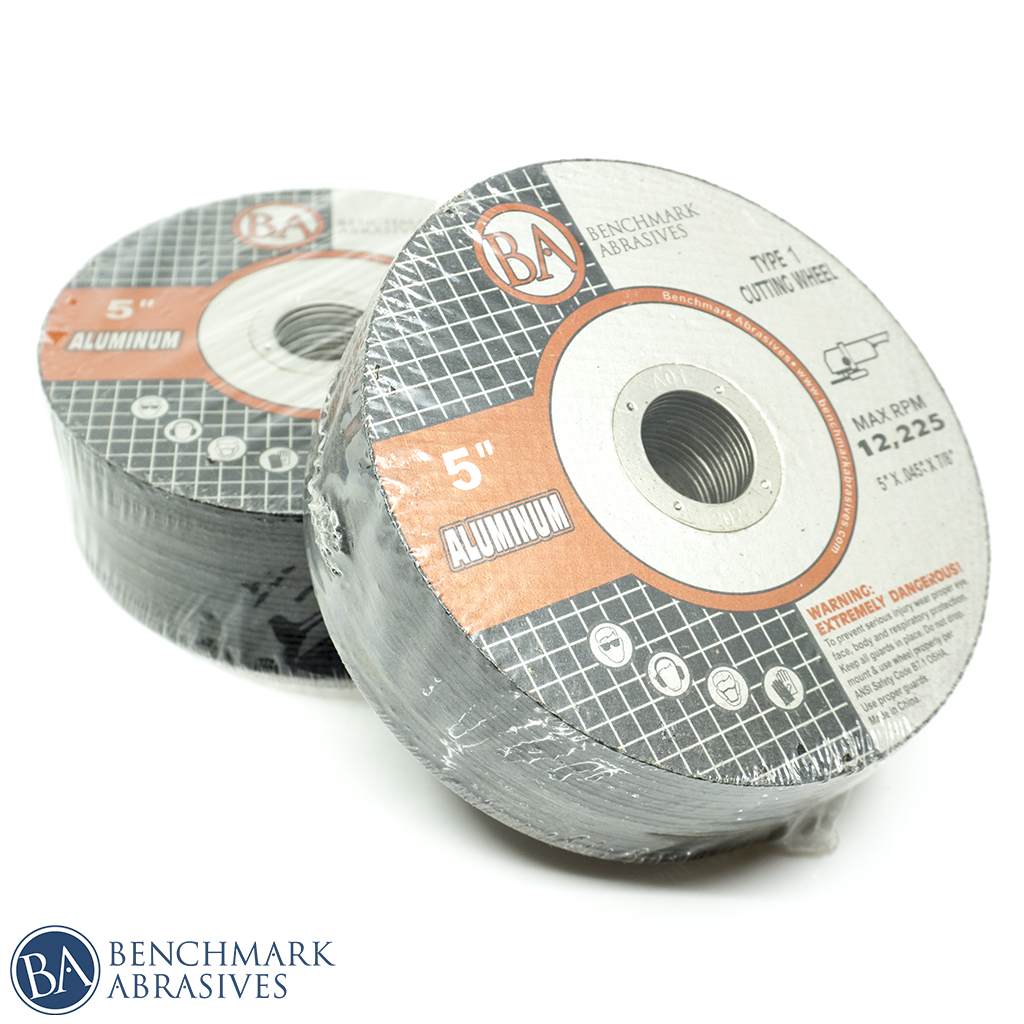

Quantity: 25 Cut-Off Wheels
Product Specifications
| Specification |
Details |
| Diameter |
5" |
| Thickness |
.045" |
| Arbor |
7/8" |
| Wheel Type |
Type 1 Flat Cut-Off Wheel |
| Abrasive Grain |
Aluminum Oxide & Silicon Carbide |
| Maximum RPM |
12,225 |
| Operation |
Cutting Only |
| Material Focus |
Aluminum & Approved Nonferrous Metals |
| Quantity |
25 Wheels |
Product Features
- Thin .045" profile for narrow, controlled cuts
- 5" diameter provides additional cutting reach over 4-1/2" wheels
- Aluminum oxide and silicon carbide abrasive blend
- Designed for aluminum and approved nonferrous metals
- Flat Type 1 construction engineered specifically for edge cutting
- 7/8" arbor for compatible 5" angle grinder setups
- Rated up to 12,225 RPM
- Built for fabrication, automotive, maintenance, and repair applications
Materials & Applications
Recommended Materials:
- Aluminum
- Other approved nonferrous metals
Best For:
- Cutting aluminum sheet
- Cutting aluminum tubing
- Cutting extrusions
- Trimming fabricated components
- Automotive and equipment repair
- General aluminum fabrication
- Maintenance applications
- Shop and field cutting
Machine Compatibility
Designed for compatible 5" angle grinders that accept a 7/8" arbor Type 1 cut-off wheel and are specifically rated for 5" wheel capacity.
Compatible examples include:
-
Makita® GA5020 (11,000 RPM), fitted with the correct 5" Type 1 cut-off guard and cutting-wheel flanges
-
Bosch® GWS13-50 (11,500 RPM)
-
DEWALT® DCG418 (9,000 RPM)
-
Metabo® WEPBA 17-125 Quick RT DS (10,000 RPM, North American version)
- Dual-capacity 4-1/2"/5" grinders only when the manufacturer specifically approves the machine and installed guard for 5" wheels
Do not install this wheel on a grinder limited to 4-1/2" wheels simply because the arbor fits. Always verify wheel capacity, arbor size, maximum RPM, flange configuration, mounting hardware, and the correct Type 1 cut-off guard before operation.
Safety Tips
- Use this wheel for cutting only. Do not grind with the side of the wheel.
- Never exceed the wheel's 12,225 RPM maximum speed.
- Use only on machines specifically rated for 5" wheels.
- Always use the proper Type 1 cut-off wheel guard.
- Use the correct flanges and mounting hardware specified for the grinder.
- Inspect the wheel before use and do not operate cracked, chipped, damaged, or improperly stored wheels.
- Keep the wheel straight in the cut and avoid side loading.
- Do not force or twist the wheel through the workpiece.
-
