Product Specification

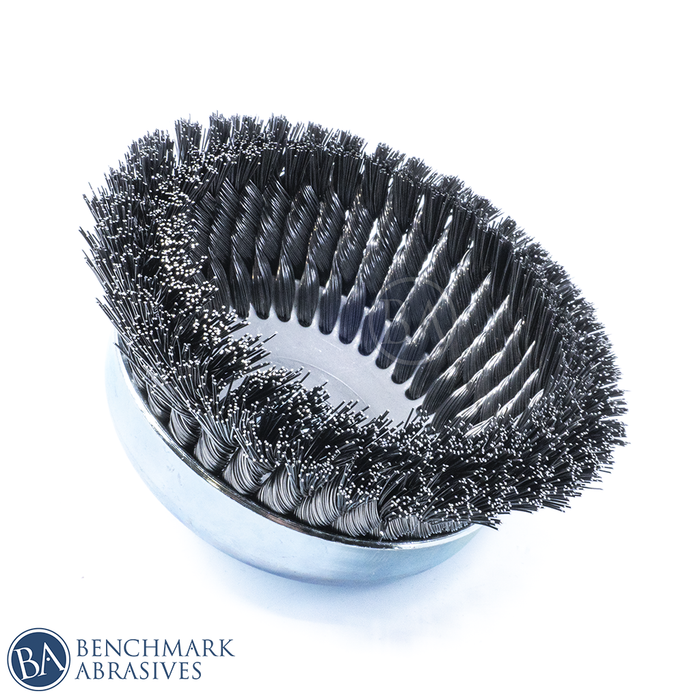

6" X 5/8"-11 KNOTTED CUP BRUSH - CARBON STEEL
For large steel surfaces where smaller cup brushes just do not cover enough ground, the 6" x 5/8"-11 Knotted Cup Brush - Carbon Steel delivers serious cleaning power with a wide, aggressive working footprint. Built with 0.020" carbon steel wire, this brush is made for heavy rust, mill scale, weld residue, oxidation, paint, coatings, and stubborn buildup on large fabricated parts and structural steel.
The knotted wire construction bundles the wire into stiff, tightly twisted sections that stay firm under load and put aggressive cleaning action at the wire tips. Combined with the large 6" cup profile, that creates broad, stable contact with the workpiece for faster cleaning across plate, frames, weldments, tanks, structural components, and other substantial metal surfaces.
A 5/8"-11 threaded arbor provides direct spin-on installation on compatible large-frame angle grinders, while the 6,600 RPM maximum rating is matched to lower-speed equipment built to handle larger cup brushes. When the job calls for maximum surface coverage without giving up the aggressive bite of knotted wire, this is the heavy-duty end of the cup-brush lineup.
Product Specifications
| Specification |
Details |
| Diameter |
6" |
| Wire Material |
Carbon Steel |
| Wire Diameter |
0.020" |
| Wire Style |
Knotted |
| Brush Type |
Cup Brush |
| Arbor |
5/8"-11 Threaded |
| Maximum RPM |
6,600 |
Features
-
Large 6" cup profile for high-coverage surface cleaning
-
Aggressive knotted-wire construction for heavy-duty applications
-
0.020" carbon steel wire attacks rust, scale, weld residue, paint, and stubborn buildup
- Broad, stable working area helps clean large fabricated components efficiently
- Stiffer and more aggressive than flexible crimped-wire cup brushes
-
5/8"-11 threaded arbor for direct installation on compatible grinders
- 6,600 RPM maximum rating
- Excellent for structural steel, plate, weldments, frames, tanks, and large fabricated assemblies
- Built for fabrication, welding, industrial maintenance, repair, and heavy surface preparation
Applications & Performance
The 6" knotted cup brush is built for aggressive broad-surface cleaning at scale. Its large cup profile puts substantially more wire against the workpiece than smaller brushes, making it a strong choice when productivity across large surfaces matters.
Common applications include:
- Heavy rust and corrosion removal
- Mill scale removal
- Weld cleanup
- Removing weld residue and spatter
- Paint and coating removal
- Oxidation removal
- Cleaning large steel plate
- Structural-steel preparation
- Cleaning frames and fabricated assemblies
- Surface preparation before welding
- Preparing metal before coating or repair
- Heavy industrial maintenance
The larger diameter is best suited to open surfaces and substantial workpieces where the operator can take advantage of the wider working footprint.
Use controlled pressure and allow the wire tips to perform the cleaning rather than forcing the brush into the workpiece.
Materials
Recommended for cleaning and surface preparation on compatible ferrous materials, including:
- Carbon steel
- Mild steel
- Structural steel
- Cast iron
- Wrought iron
- Other compatible ferrous metal surfaces
Keep carbon steel brushes dedicated to ferrous work when cross-contamination matters. For stainless-steel applications where iron contamination must be minimized, use a dedicated stainless steel wire brush.
Machine Compatibility
Use this 6" cup brush on a compatible angle grinder with a 5/8"-11 spindle, adequate brush capacity and a maximum speed no greater than 6,600 RPM. Match the actual hub seating and allow room for wire flare.
Compatible examples include:
-
Makita® GA7011C — 7" angle grinder; 6,000 RPM.
-
Makita® GA7021 — 7" angle grinder; 6,600 RPM.
Other machines may be compatible. Use the manufacturer-specified wire-brushing setup and guard, with secure hub engagement and adequate operating clearance. Other grinders meeting these requirements may also be suitable.
Safety Tips
- Never exceed the brush's 6,600 RPM maximum speed.
- The brush's rated RPM must meet or exceed the maximum operating speed of the power tool.
- Confirm the grinder is designed to safely accommodate a 6" cup brush and its operating wire flare.
- Inspect the brush before every use and replace it if damaged, excessively worn, loose, or distorted.
- Confirm the 5/8"-11 threaded arbor is fully seated and secure before operation.
- Use the appropriate grinder guard and maintain adequate clearance around the rotating brush.
- Wear proper PPE, including eye and face protection, hearing protection, gloves, appropriate clothing, and respiratory protection when required.
- Keep bystanders away from the work area and direction of rotation.
- Use controlled pressure. Excessive force bends the wire and can accelerate wire fatigue.
- Allow the grinder to reach operating speed before contacting the workpiece.
- Follow all operating and safety instructions for both the power tool and wire brush.
