Product Specification

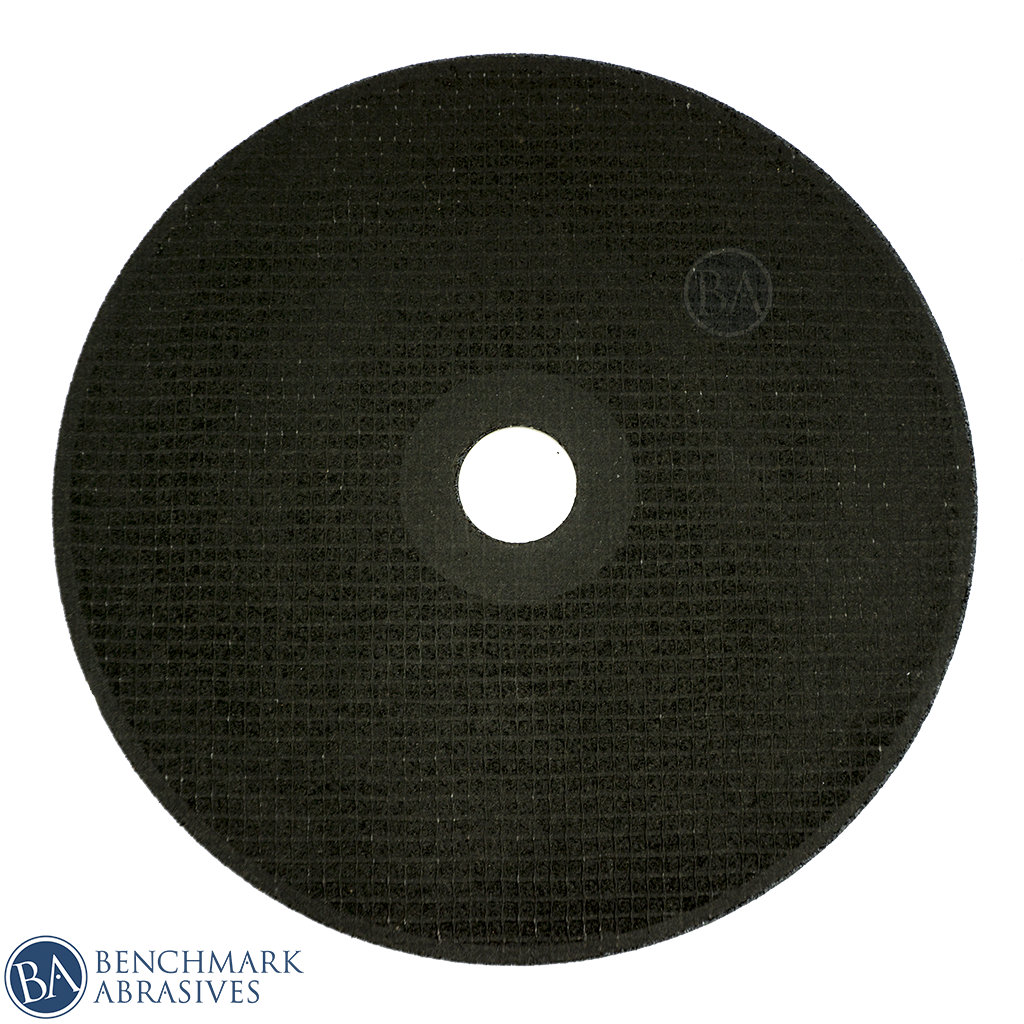

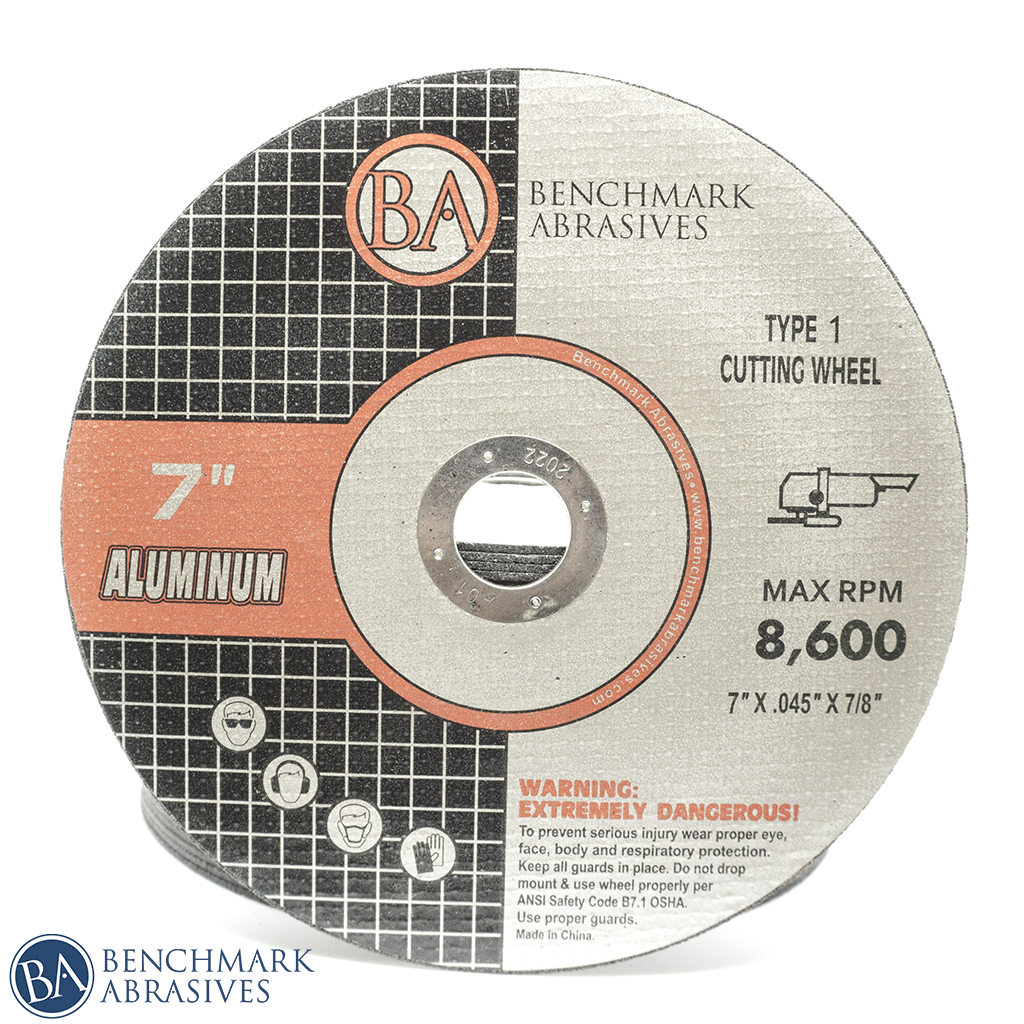

7" X .045" X 7/8" T1 THIN CUT-OFF WHEEL FOR ALUMINUM - 25 PACK
Benchmark Abrasives 7" x .045" x 7/8" T1 thin cut-off wheels for aluminum are built for larger nonferrous cutting jobs where extra reach and cutting depth matter. The thin .045" profile keeps the kerf narrow while the 7" diameter gives fabricators more usable wheel reach for larger aluminum tubing, extrusions, sheet, and fabricated components.
The wheel uses an aluminum oxide and silicon carbide abrasive blend specifically positioned for aluminum and other approved nonferrous metals. Its flat Type 1 construction is designed strictly for edge cutting, making it a strong choice for fabrication, automotive, maintenance, and repair work where efficient aluminum cutting and good control are important.
With a 7/8" arbor and an 8,600 RPM maximum rating, this wheel is designed for compatible 7" angle grinders equipped for Type 1 cut-off wheel use. Use it only on grinders specifically rated for 7" wheels and fitted with the proper cut-off guard, flanges, and mounting hardware.
Bottom line, these cut off wheels offer LESS cutting resistance for fast work, LESS work piece waste, LESS vibration, LESS burrs and sparks and LESS dust than the competition

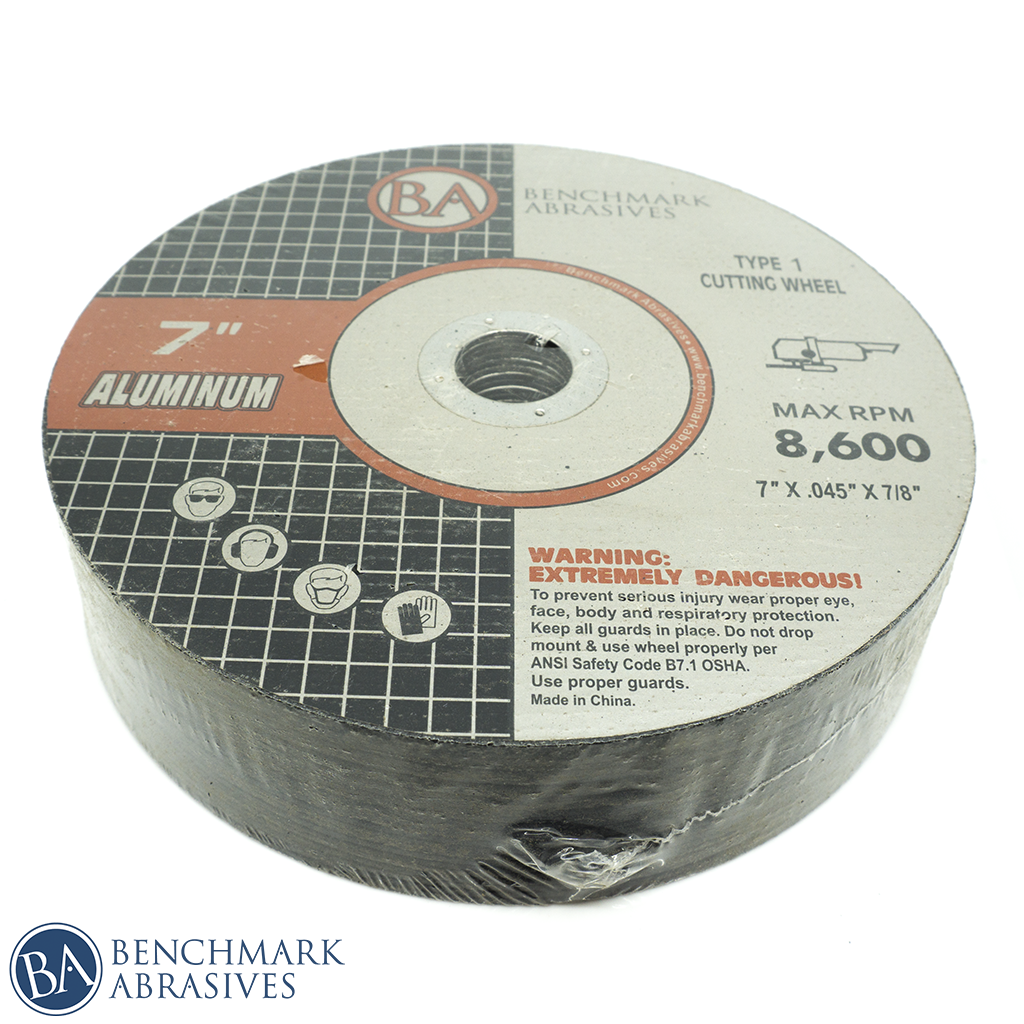

Quantity: 25 Cut-Off Wheels
Product Specifications
| Specification |
Details |
| Diameter |
7" |
| Thickness |
.045" |
| Arbor |
7/8" |
| Wheel Type |
Type 1 Flat Cut-Off Wheel |
| Abrasive Grain |
Aluminum Oxide & Silicon Carbide |
| Maximum RPM |
8,600 |
| Operation |
Cutting Only |
| Material Focus |
Aluminum & Approved Nonferrous Metals |
| Quantity |
25 Wheels |
Product Features
- Thin .045" profile for narrow, controlled cuts
- 7" diameter provides greater cutting depth and reach
- Aluminum oxide and silicon carbide abrasive blend
- Designed for aluminum and approved nonferrous metals
- Flat Type 1 construction engineered specifically for edge cutting
- 7/8" arbor for compatible 7" angle grinder setups
- Rated up to 8,600 RPM
- Built for fabrication, automotive, maintenance, and repair applications
Materials & Applications
Recommended Materials:
- Aluminum
- Other approved nonferrous metals
Best For:
- Cutting aluminum tubing and pipe
- Cutting aluminum sheet
- Cutting extrusions
- Trimming fabricated components
- Structural aluminum work
- Automotive and equipment repair
- General aluminum fabrication
- Maintenance applications
Machine Compatibility
Designed for compatible 7" angle grinders that accept a 7/8" arbor Type 1 cut-off wheel and are specifically rated for 7" wheel capacity.
Compatible examples include:
- Makita® GA7031Y (8,500 RPM)
- Makita® GA7060 (8,500 RPM)
- Makita® GA7021 (6,600 RPM)
- Milwaukee® 2785-20 (6,600 RPM), with its 7" Type 1 guard and Type 1 backing flange
Use the proper Type 1 cut-off guard and mounting hardware specified for the grinder. Always verify wheel diameter, arbor size, maximum RPM, flange configuration, and guard setup before operation.
Do not install this wheel on a smaller grinder simply because the arbor fits.
Safety Tips
- Use this wheel for cutting only. Do not grind with the side of the wheel.
- Never exceed the wheel's 8,600 RPM maximum speed.
- Use only on machines specifically rated for 7" wheels.
- Always use the proper Type 1 cut-off wheel guard.
- Use the correct flanges and mounting hardware specified for the grinder.
- Inspect the wheel before use and do not operate cracked, chipped, damaged, or improperly stored wheels.
- Keep the wheel straight in the cut and avoid side loading.
- Do not force or twist the wheel through the workpiece.
-
