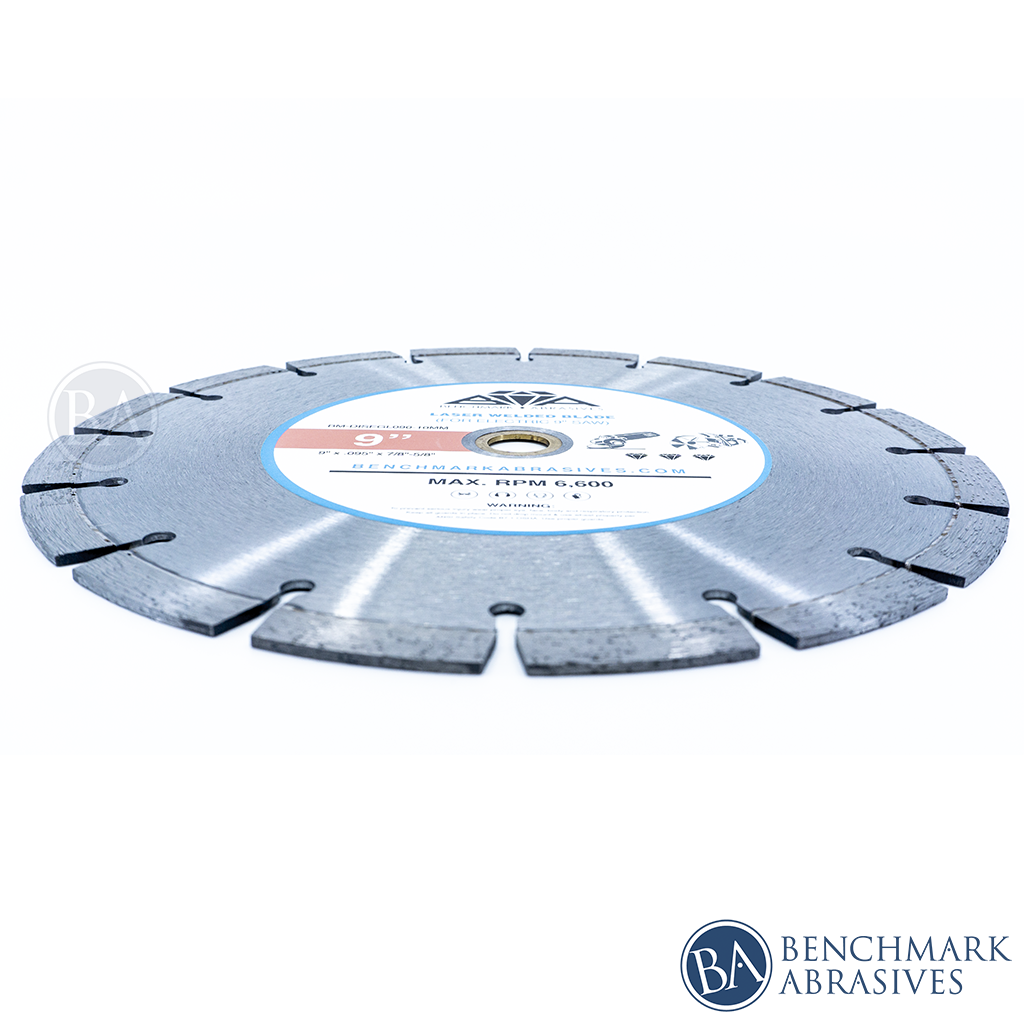

9” LASER WELDED SEGMENTED DIAMOND BLADE WITH STEEL CORE
Built for fast, aggressive cutting through demanding masonry and stone, the Benchmark Abrasives 9” Laser Welded Segmented Diamond Blade delivers the durability and cutting efficiency needed for concrete, roofing tile, stone, ceramic, granite, and marble. Laser-welded diamond segments are securely bonded to a strong steel core for dependable performance in tough cutting applications.
The segmented rim helps move debris out of the cut and promotes airflow around the cutting edge, supporting efficient material removal and heat management during demanding work. With a 0.095" blade thickness and a maximum rating of 6,600 RPM, this 9” blade is built for larger-format masonry and stone cutting where aggressive performance and durability matter.
Product Specifications
Specification
Details
Diameter
9"
Blade Type
Laser Welded Segmented Diamond Blade
Thickness
0.095"
Arbor
7/8" / 5/8"
Maximum RPM
6,600 RPM
Available Quantities
1, 5, or 10 Blades
Features

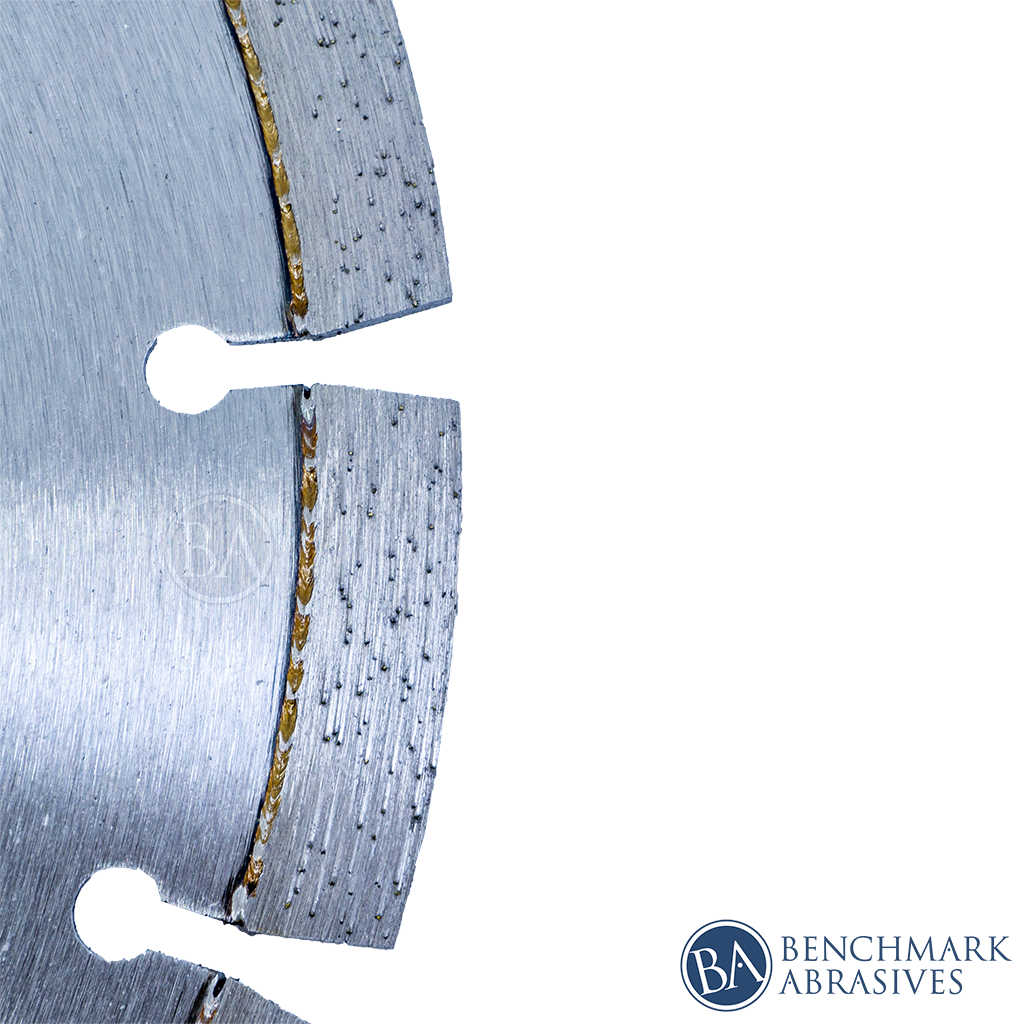

Laser-welded diamond segments for durable segment attachment

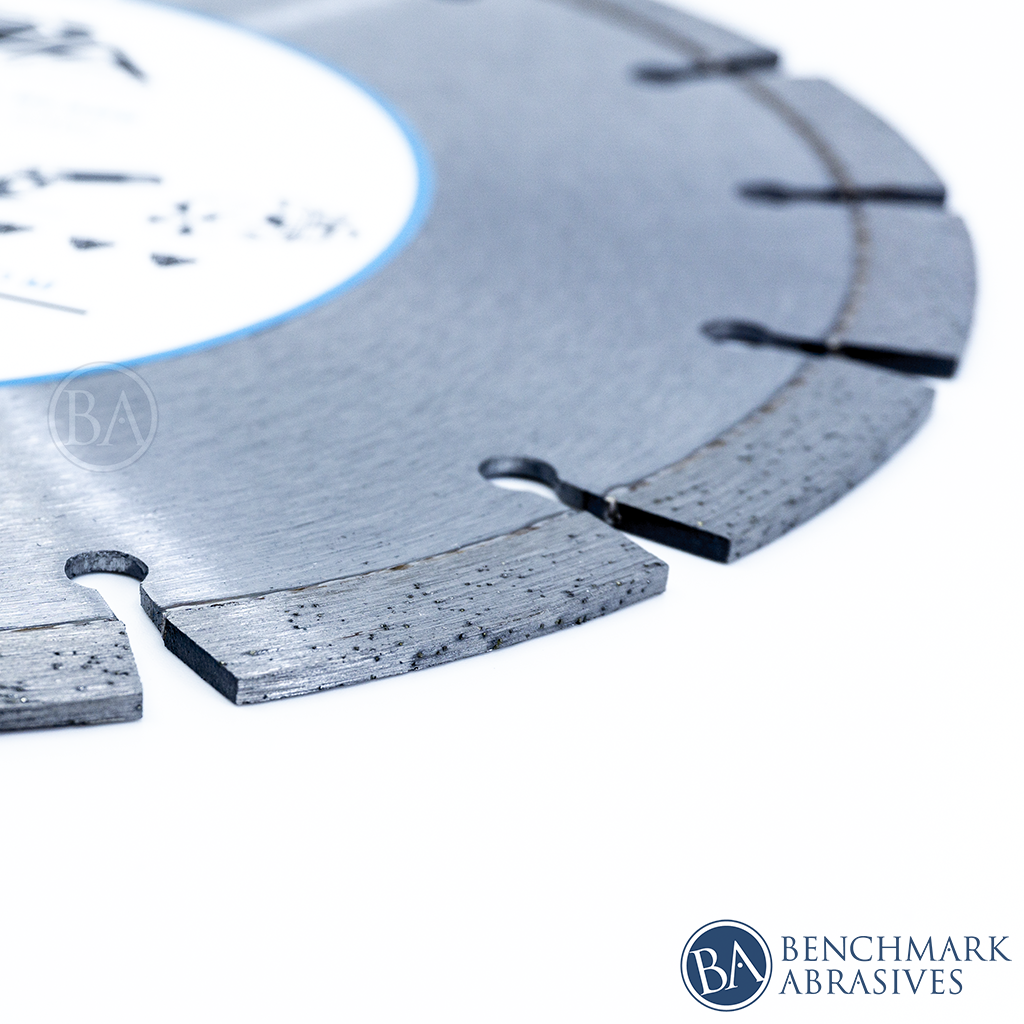

Segmented rim designed for aggressive masonry and stone cutting
Open gullets help clear debris from the cutting path
Segment spacing promotes airflow around the cutting edge
Strong steel-core construction provides stability during cutting
0.095" blade thickness for demanding cutting applications
7/8" / 5/8" arbor configuration
Rated up to 6,600 RPM
Applications & Performance
Designed for larger-format cutting applications where efficient material removal and debris clearance are the priority.
Concrete cutting
Masonry cutting
Roofing tile cutting
Stone cutting
Ceramic cutting
Granite and marble cutting
Segmented rim helps clear debris and maintain cutting efficiency
Aggressive cutting action for demanding masonry applications
Segmented construction generally produces a rougher finished edge than continuous-rim tile blades
Materials
Concrete
Roofing Tile
Stone
Ceramic
Granite
Marble
Machine Compatibility
For use with power cutters and masonry saws that accept a 9" diamond blade.
Compatible examples include:
Makita® GA9060 9" Angle Grinder — 6,600 RPM; for dry cutting with the appropriate diamond-cutting guard, cutting flanges, and lock nut. Confirm proper blade seating and guard clearance.
Match the arbor and speed rating, and use the tool’s specified mounting hardware and cutting guard with clearance for the blade. Follow the blade and tool instructions for wet or dry use.
Safety Tips
Never exceed the blade’s maximum rated speed of 6,600 RPM.
Inspect the blade, steel core, arbor opening, and mounting flanges before each use. Do not use a damaged or distorted blade.
Use the cutting guard required by the machine manufacturer.
Match the arbor and flange system to the machine. Never enlarge the arbor opening or use improvised or loose reducing bushings.
Verify the permitted operating method on the current blade label and machine instructions before cutting.
Do not side-load or grind with the sides of the blade unless the exact accessory is specifically approved for that operation.
Use appropriate eye, hearing, respiratory, and other required personal protective equipment.
Concrete, masonry, and stone cutting can generate respirable silica dust. Use task-appropriate water-delivery or dust-extraction controls for the application.
9” LASER WELDED SEGMENTED DIAMOND BLADE WITH STEEL CORE
Built for fast, aggressive cutting through demanding masonry and stone, the Benchmark Abrasives 9” Laser Welded Segmented Diamond Blade delivers the durability and cutting efficiency needed for concrete, roofing tile, stone, ceramic, granite, and marble. Laser-welded diamond segments are securely bonded to a strong steel core for dependable performance in tough cutting applications.
The segmented rim helps move debris out of the cut and promotes airflow around the cutting edge, supporting efficient material removal and heat management during demanding work. With a 0.095" blade thickness and a maximum rating of 6,600 RPM, this 9” blade is built for larger-format masonry and stone cutting where aggressive performance and durability matter.
Product Specifications
Specification
Details
Diameter
9"
Blade Type
Laser Welded Segmented Diamond Blade
Thickness
0.095"
Arbor
7/8" / 5/8"
Maximum RPM
6,600 RPM
Available Quantities
1, 5, or 10 Blades
Features
Laser-welded diamond segments for durable segment attachment
Segmented rim designed for aggressive masonry and stone cutting
Open gullets help clear debris from the cutting path
Segment spacing promotes airflow around the cutting edge
Strong steel-core construction provides stability during cutting
0.095" blade thickness for demanding cutting applications
7/8" / 5/8" arbor configuration
Rated up to 6,600 RPM
Applications & Performance
Designed for larger-format cutting applications where efficient material removal and debris clearance are the priority.
Concrete cutting
Masonry cutting
Roofing tile cutting
Stone cutting
Ceramic cutting
Granite and marble cutting
Segmented rim helps clear debris and maintain cutting efficiency
Aggressive cutting action for demanding masonry applications
Segmented construction generally produces a rougher finished edge than continuous-rim tile blades
Materials
Concrete
Roofing Tile
Stone
Ceramic
Granite
Marble
Machine Compatibility
For use with power cutters and masonry saws that accept a 9" diamond blade.
Compatible examples include:
Makita® GA9060 9" Angle Grinder — 6,600 RPM; for dry cutting with the appropriate diamond-cutting guard, cutting flanges, and lock nut. Confirm proper blade seating and guard clearance.
Match the arbor and speed rating, and use the tool’s specified mounting hardware and cutting guard with clearance for the blade. Follow the blade and tool instructions for wet or dry use.
Safety Tips
Never exceed the blade’s maximum rated speed of 6,600 RPM.
Inspect the blade, steel core, arbor opening, and mounting flanges before each use. Do not use a damaged or distorted blade.
Use the cutting guard required by the machine manufacturer.
Match the arbor and flange system to the machine. Never enlarge the arbor opening or use improvised or loose reducing bushings.
Verify the permitted operating method on the current blade label and machine instructions before cutting.
Do not side-load or grind with the sides of the blade unless the exact accessory is specifically approved for that operation.
Use appropriate eye, hearing, respiratory, and other required personal protective equipment.
Concrete, masonry, and stone cutting can generate respirable silica dust. Use task-appropriate water-delivery or dust-extraction controls for the application.
Frequently Asked Questions
It is intended for cutting concrete, roofing tile, stone, ceramic, granite, and marble.
The blade uses a 7/8" / 5/8" arbor configuration. Always verify the machine’s required mounting and flange arrangement before use.
The maximum blade rating is 6,600 RPM. The machine’s required blade rating must not exceed the rating of the blade.
Compatible examples include the Makita® GA9060 9" Angle Grinder, operating at 6,600 RPM, when equipped with the appropriate diamond-cutting guard, cutting flanges, and lock nut for dry cutting. Other machines may also fit when their blade capacity, mounting configuration, and speed requirements match this blade. Confirm proper blade seating and guard clearance before use.
Follow the operating method marked on the blade and permitted by the machine. Contact Benchmark Abrasives before use if the wet/dry marking is unclear.
The spaces between the segments help clear cutting debris and promote airflow around the cutting edge, making segmented blades well suited for aggressive masonry and stone cutting.
No. Segmented blades generally prioritize cutting efficiency and debris clearance, while continuous-rim blades are typically selected when a smoother finished edge is more important.
