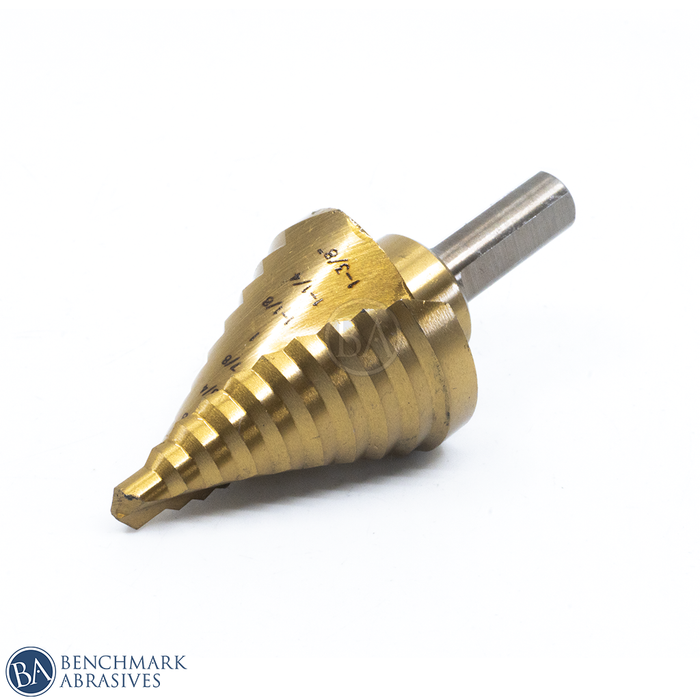

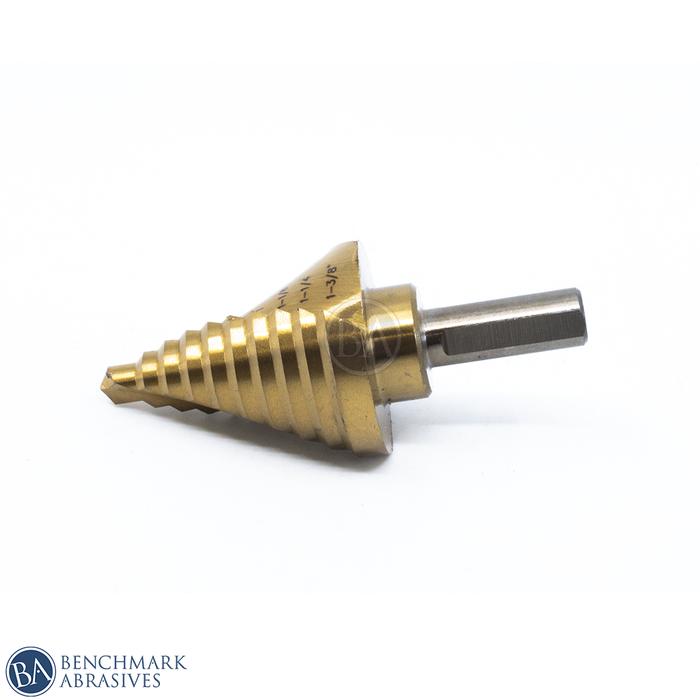

ECONOMY TITANIUM COATED STEP DRILL BIT 1/4"–1-3/8" – 10 STEPS
Create 10 clean, precise hole sizes from 1/4" through 1-3/8" with one economy TiN-coated step drill bit. Designed for drilling and enlarging larger holes in thin materials, this bit eliminates repeated drill-bit changes while producing controlled openings in sheet metal, aluminum, copper, plastic, wood, and other compatible materials. Its progressive stepped profile lets you work gradually to the required diameter for greater control when larger finished holes are needed.
The high-speed steel body features a titanium nitride (TiN) coating for enhanced cutting speed and wear resistance, while the self-centering split point helps reduce walking as the cut begins. A spiral double-flute design improves chip removal and helps extend cutting life, carrying chips away as the bit progressively drills and reams the hole to the desired size. Ideal for clean hole-making in metal up to 1/4" thick and other thin materials.
ECONOMY TITANIUM COATED STEP DRILL BIT 1/4"–1-3/8" – 10 STEPS
Create 10 clean, precise hole sizes from 1/4" through 1-3/8" with one economy TiN-coated step drill bit. Designed for drilling and enlarging larger holes in thin materials, this bit eliminates repeated drill-bit changes while producing controlled openings in sheet metal, aluminum, copper, plastic, wood, and other compatible materials. Its progressive stepped profile lets you work gradually to the required diameter for greater control when larger finished holes are needed.
The high-speed steel body features a titanium nitride (TiN) coating for enhanced cutting speed and wear resistance, while the self-centering split point helps reduce walking as the cut begins. A spiral double-flute design improves chip removal and helps extend cutting life, carrying chips away as the bit progressively drills and reams the hole to the desired size. Ideal for clean hole-making in metal up to 1/4" thick and other thin materials.
Keep the bit at approximately 90° to the work surface.
Progress through the steps gradually rather than forcing the bit.
Use steady pressure and allow the cutting edges to do the work.
Select drilling speed according to the material and hole diameter.
Larger hole diameters generally require slower, more controlled operation.
Use an appropriate cutting lubricant when drilling metals.
Stop the tool before clearing chips; use a brush, not your hands.
Do not use hammer action when drilling with a hammer drill/driver.
Make sure the 3-flat shank is fully seated and securely tightened in the drill chuck before operation.
Frequently Asked Questions

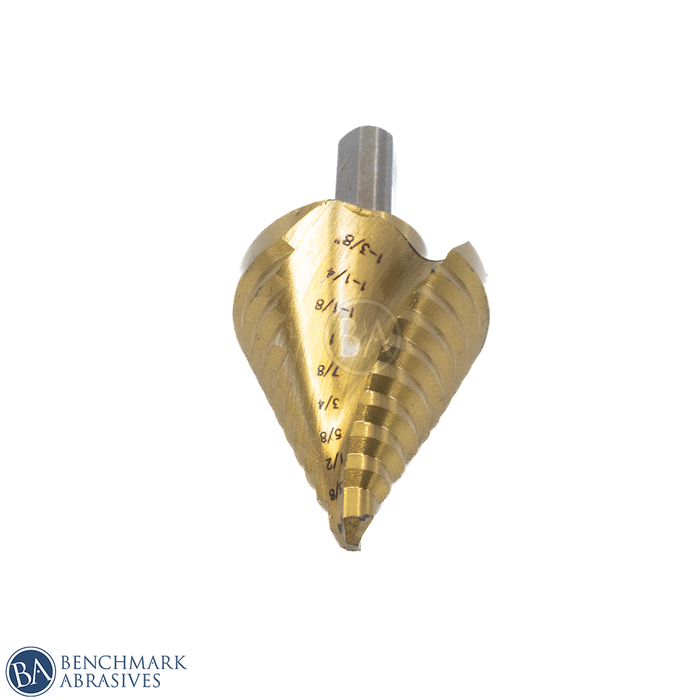

It produces 10 hole sizes: 1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", and 1-3/8".
It has a high-speed steel body with a titanium nitride (TiN) coating.
The titanium nitride coating provides added surface hardness and wear resistance while supporting faster cutting performance.
The spiral double flutes help move chips away from the cutting area efficiently, supporting cleaner cutting and longer bit life.
Yes. The progressive steps make this bit especially useful for enlarging an existing hole gradually up to one of its larger finished diameters.
It is designed for clean hole-making in suitable thin materials, while the stepped profile can also help with controlled chamfering and light deburring.
Use a corded drill, cordless drill/driver or drill press with an adjustable chuck that securely grips the 3-flat shank. Check the chuck opening and the tool’s drilling capacity before use. This shank does not fit directly into a 1/4" quick-change impact driver.
Up to 1/4" in suitable metal, provided the selected step is long enough to pass through the workpiece without engaging the next diameter. Choose the drilling speed and lubricant for your material and hole size.
Select speed according to both the material and the diameter being cut. Because this bit reaches 1-3/8", slower and more controlled operation becomes increasingly important as you progress through the larger steps.
