Product Specification

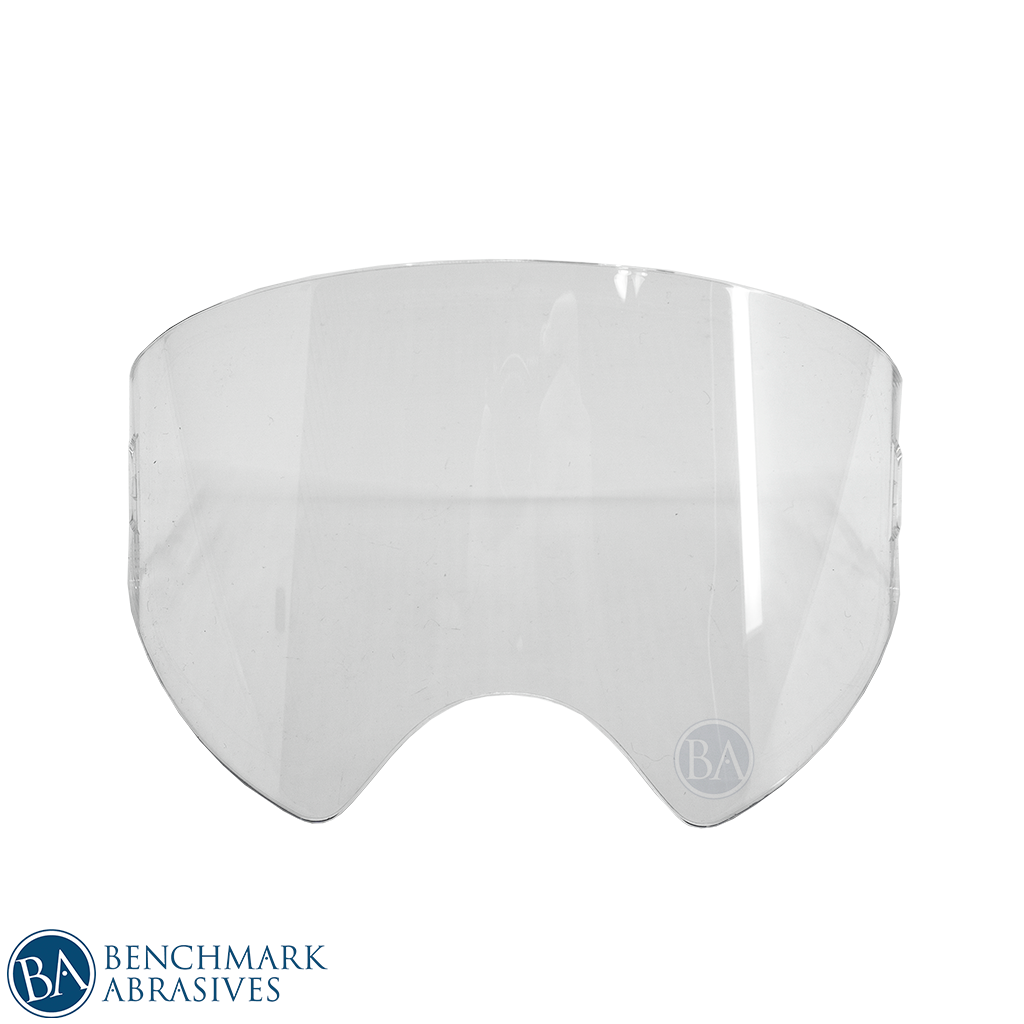

Replacement Inner Lens For Grinder Hood

Lens getting fogged up and hard to see over time? Replace your worn-out or scratched safety lens on your grinder hood with two easy clips.

Flip your cans down, throw on your half mask, and get to work. When your lens is worn out, just slide the right and left side clips, pop the old lens out, replace with e new lens…two more clip slides and your back to working safely!.

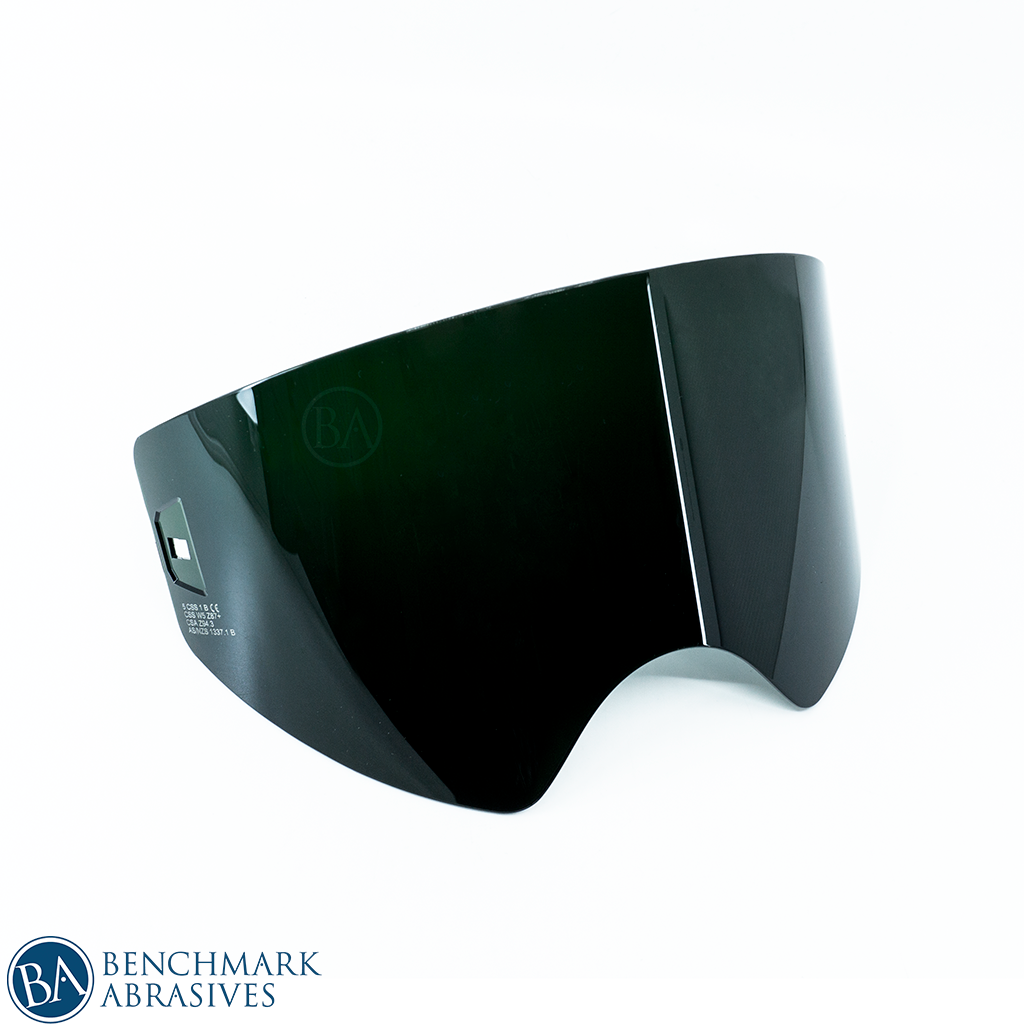

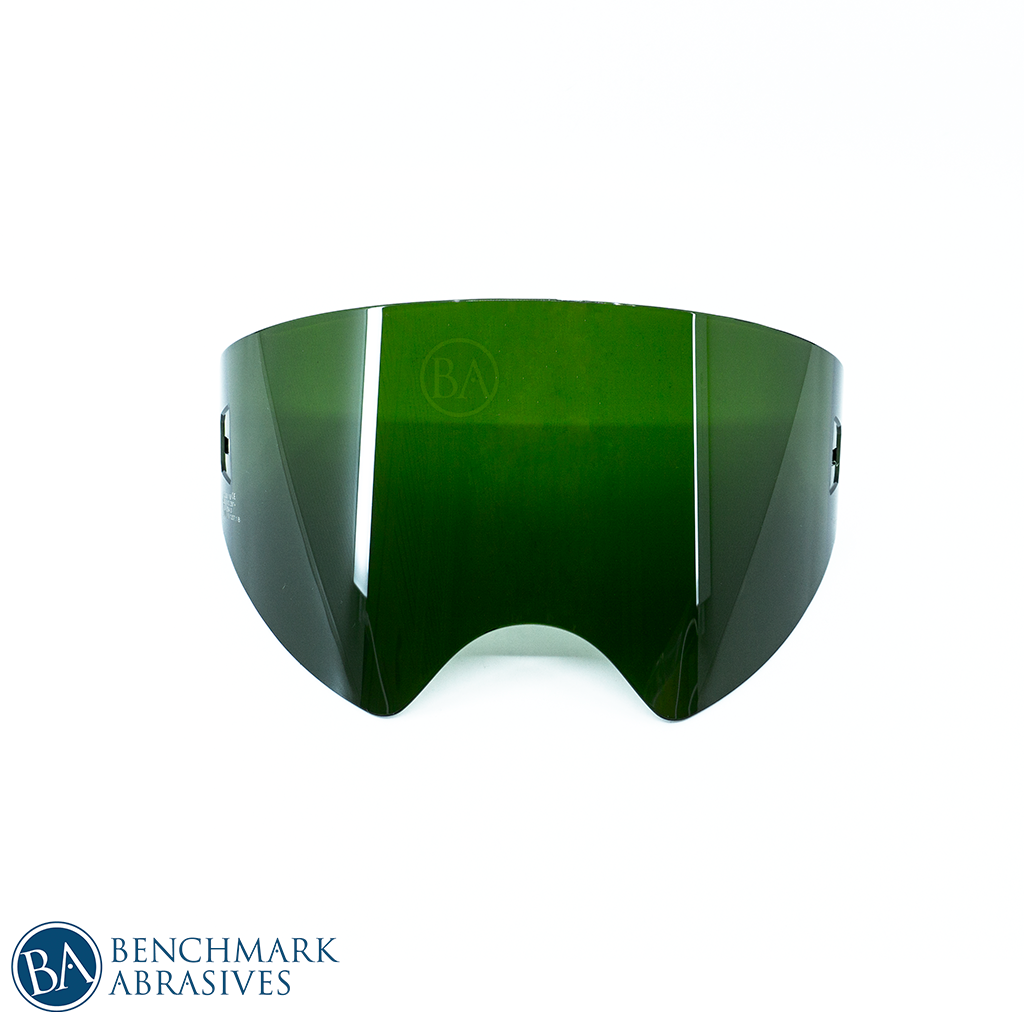

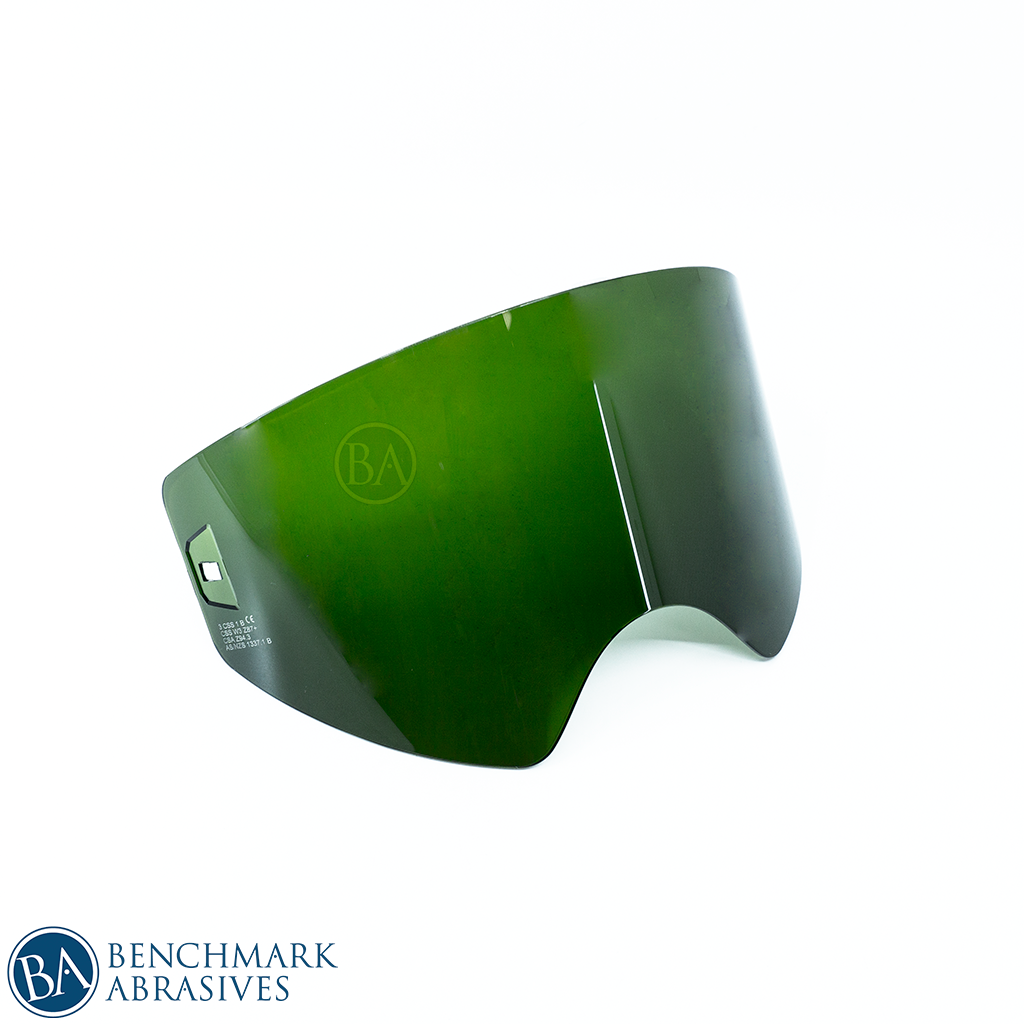

The Grinder hood was also designed with versatility in mind. For light welding applications you can swap out the normal clear safety lens for an inner lens shade level 3 or 5. Add the outer clip system and additional lenses to get up to a shade level 13.

Quantity: 1 Lens

Specifications:

• Shade Level – 1 (clear), 3 and 5.
• Lens Safety Certificates – ANSI CSS Z87+, CSS 1 B CE and CSA Z94.3.

Application:

• For use in ALL grinding and cutting applications .
• Can be used for light welding applications with the addition of the clip system, darker inner lens and outer lens.

Safety Tips & Techniques:

• DO NOT use this product for sand blasting, the lens and plastic shell are not rated for this application.
• The clear lens the hood comes with is intended for eye protection ONLY, using this PPE device for welding applications will result in injury. For welding applications please purchase the clip system and subsequent lens shades to get the proper level of shade protection required for your application.
• Always wear proper PPE to include (but not limited to) safety glasses, hearing protection, respirator, and hand protection. Keep all guards in place on your machine.
• Welding Shade Number by Application Chart



  WELDING STYLE	AMPERAGE	LENS SHADE
  Stick Welding	30-500	9-13
  MIG Welding	80-500	10-13
  MIG Welding - Aluminum	80-350	10-12
  TIG Welding	5-300	9-13
  Core Welding	100-400	10-13
