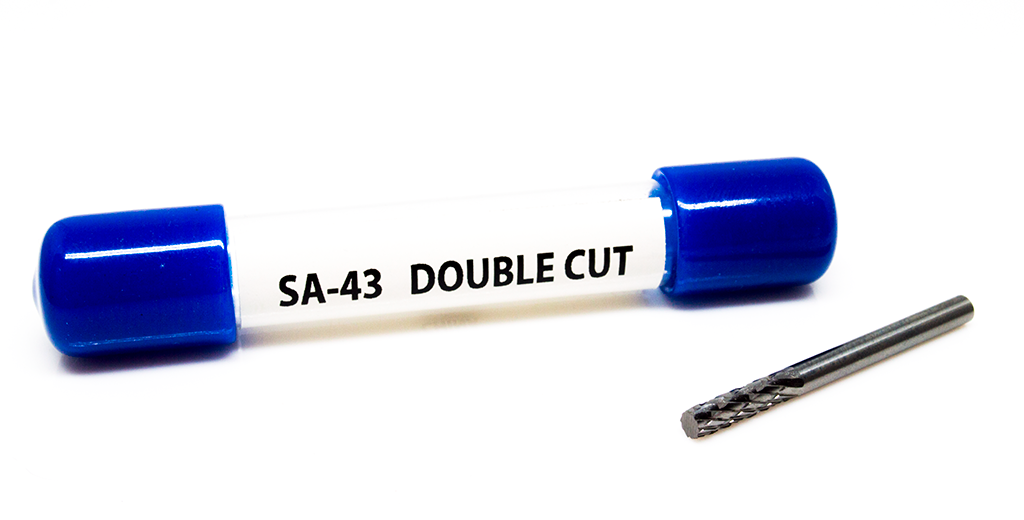

The Benchmark Abrasives SA-43 Cylinder Shape Premium Tungsten Carbide Burr is built for fabricators, machinists, welders, and metalworkers who need precise cutting performance from a compact carbide burr. Unlike lower quality burrs that may use hollow heads or inconsistent brazing, Benchmark carbide burrs feature a solid carbide head with a silver-brazed connection to the shank. The result is a strong, stable cutting tool designed for demanding deburring, shaping, contouring, and material-removal applications.
The SA-43 combines that premium construction with a slim 1/8" cylinder head and double-cut tooth pattern for controlled stock removal. Its straight-sided profile is especially useful along narrow sidewalls, straight edges, slots, and interior contours where a larger burr would limit access. The intersecting double-cut flutes divide removed material into smaller chips, providing a more manageable cutting action and smoother result than a comparable single-cut burr while still removing material efficiently.
With both a 1/8" head and 1/8" shank, the SA-43 is a compact option for detailed metalworking and precision shaping. Its small diameter provides access to tighter features than larger carbide burrs while retaining the versatility of the SA cylinder profile.
Features
- Premium tungsten carbide construction
- Double-cut design for efficient, controlled stock removal
- Slim 1/8" cylinder head for detailed and confined-area work
- Straight-sided profile for narrow sidewalls and consistent contours
- 9/16" cutting length for useful surface engagement
- Produces smaller chips than a comparable single-cut burr
- 1/8" shank for compatible rotary tools and precision grinders
- Suitable for deburring, shaping, contouring, and localized material removal
- Sold individually
Applications
The SA-43 cylinder profile is well suited for:
- Narrow sidewall contouring
- Straight-edge shaping
- Slots and confined features
- Interior contour work
- Detailed deburring
- Surface cleanup
- Localized stock removal
- General fabrication and maintenance work
Materials
Recommended primarily for:
- Steel
- Stainless steel
- Cast iron
Also suitable for additional materials when the correct operating speed and technique are used, including titanium, nickel, wrought iron, copper, fiberglass, plastic, hard rubber, wood, and stone.
Machine Compatibility
Designed for rotary tools, precision grinders, and other compatible machines equipped with a properly sized 1/8" collet or chuck.
Compatible examples include Dremel® 4300, 4000, and 3000 fitted with a Dremel 480 1/8" collet and matching collet nut. The 4300 can also hold the 1/8" shank in its keyless chuck.
Always confirm the 1/8" shank is securely seated in the correct collet or chuck before operation. A 1/8" shank is not interchangeable with 3 mm tooling.
Cutting Performance
The SA-43 cylinder shape provides a narrow, straight cutting profile that is especially useful for detailed sidewall work, straight edges, slots, and tight interior contours. Its 1/8" head diameter allows access to features that larger cylinder burrs cannot reach as effectively while still providing a consistent cutting surface along the sides of the burr.
The double-cut tooth pattern uses intersecting flutes to divide removed material into smaller chips, helping provide controlled stock removal and a smoother working action than a comparable single-cut burr. The plain-end SA profile is designed for side cutting, not end cutting.
Carbide burrs are primarily cutting and shaping tools; applications requiring a refined cosmetic finish should be followed with the appropriate abrasive finishing process.
Use the chart above to select the recommended operating-speed range based on the 1/8" burr head diameter and workpiece material.
Do not exceed the 90,000 RPM maximum speed for this standard-length 1/8" carbide burr. Always operate within the lower maximum speed of the burr, machine, collet, chuck, or accessory system.
Safety Tips
- Always wear appropriate eye, hearing, respiratory, and hand protection.
- Secure the workpiece before beginning operation.
- Confirm the 1/8" shank is properly seated and securely tightened in the correct collet or chuck.
- Use light, controlled pressure and allow the carbide cutting edges to remove the material.
- Keep the burr moving during cutting rather than holding it stationary against the workpiece.
- Avoid excessive force, especially with the small 1/8" head diameter.
- Select operating speed according to burr diameter, workpiece material, machine requirements, and the recommended operating-speed chart.
- Never exceed 90,000 RPM.
- Stop immediately if excessive vibration, chatter, unusual noise, or visible damage occurs.
- Do not use a damaged, chipped, bent, or improperly mounted carbide burr.
