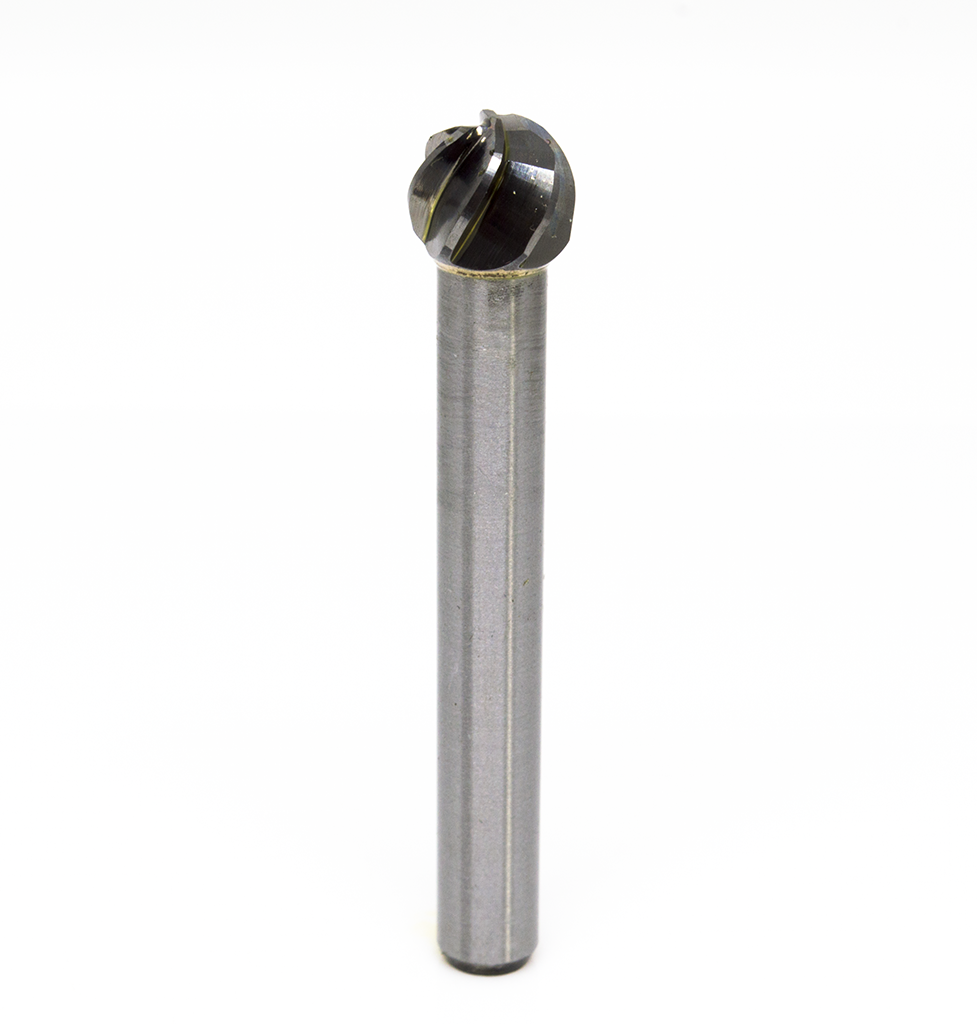

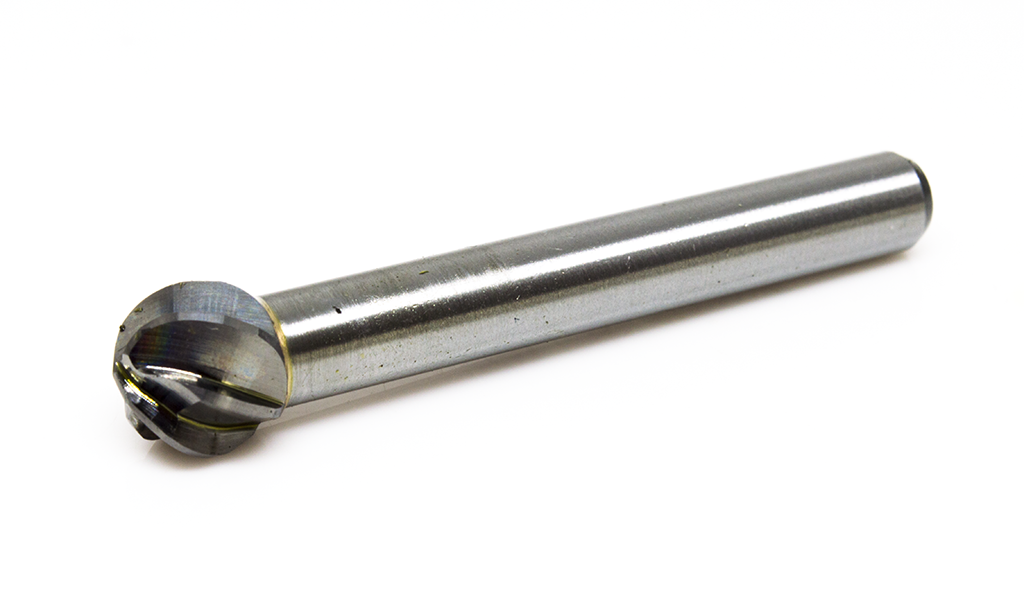

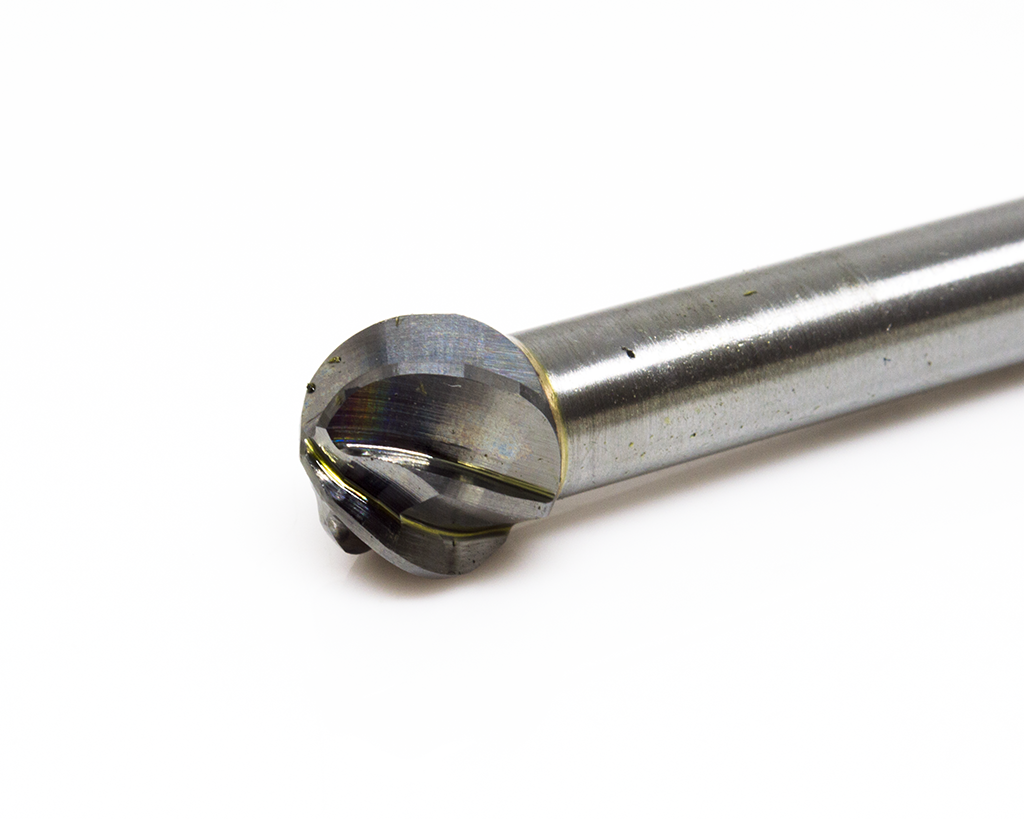

The Benchmark Abrasives SD-3NF aluma cut ball shape premium tungsten carbide burr is built for fabricators, machinists, welders, and metalworkers who need controlled material removal on aluminum and other soft nonferrous materials. Unlike lower quality burrs that may use hollow heads or inconsistent brazing, Benchmark carbide burrs feature a solid carbide head with a silver-brazed connection to the shank. The result is a strong, stable cutting tool made for demanding deburring, shaping, contouring, and material-removal applications.
The SD-3NF combines that premium construction with a 3/8" ball profile and Aluma Cut tooth geometry. Its spherical head is well suited for concave surfaces, radiused cavities, rounded recesses, and free-form contouring, while the wider, more open tooth spacing provides chip clearance on aluminum and other soft nonferrous materials to help reduce chip packing during cutting.
Whether you're deburring curved aluminum features, enlarging radiused cavities, blending concave surfaces, or shaping recessed contours, the SD-3NF provides access and cutting contact that straight-sided burrs cannot match. The 1/4" shank fits compatible die grinders and rotary tools with a matching collet, while the standard-length 3/8" head is rated for a maximum speed of 66,000 RPM.
Features
- Premium tungsten carbide construction
- Aluma Cut tooth geometry for improved chip clearance
- Open tooth spacing suited for aluminum and soft nonferrous materials
- Ball-shaped head for concave surfaces and radiused cavities
- 3/8" head for controlled contouring and recessed work
- Suitable for deburring, shaping, blending, and localized stock removal
- 1/4" shank for compatible die grinders
- Sold individually
Applications
The SD-3NF ball profile is well suited for:
- Concave surfaces
- Radiused cavities
- Rounded recesses
- Internal contouring
- Curved-surface blending
- Deburring aluminum parts
- Localized stock removal
- General nonferrous fabrication and maintenance work
Materials
The Aluma Cut tooth pattern is intended primarily for:
- Aluminum
- Other soft nonferrous materials
Its wider, more open tooth spacing is designed to provide chip clearance on softer materials where closely spaced cutting teeth can be more prone to loading.
Machine Compatibility
Designed for die grinders and other rotary tools equipped with a properly sized 1/4" collet.
Compatible examples include:
-
Benchmark Straight Pneumatic Die Grinder (BMT-DGST_1) — 1/4" collet, up to 25,000 RPM.
-
DEWALT DCG426B — 1/4" collet, variable speed up to 25,000 RPM.
-
Milwaukee 3485-20 — 1/4" collet, variable speed up to 20,000 RPM.
Always confirm the burr shank is securely seated in the correct collet and that the machine speed is appropriate for the burr diameter, workpiece material, and application.
Cutting Performance
The SD-3NF ball shape provides cutting contact around its rounded profile, making it especially useful for concave geometry, radiused cavities, internal curves, and recessed features. Unlike cylinder or cone profiles, the spherical head can follow curved surfaces from multiple approach angles, giving the operator greater flexibility when blending or shaping rounded areas.
Its Aluma Cut tooth pattern uses wider, more open spacing than a double-cut burr, providing additional room for chips to clear during cutting. This geometry is specifically useful on aluminum and other soft nonferrous materials where maintaining chip evacuation helps support a cleaner, more consistent cutting action.
Carbide burrs are primarily cutting and shaping tools; applications requiring a refined cosmetic finish should be followed with the appropriate abrasive finishing process.
Use the aluminum row in the 3/8” chart as suggested starting guidance. Conventional die grinders commonly operate at 20,000–29,000 RPM; adjust within your machine’s range for smooth cutting. The other material rows are general burr references, not recommend
Do not exceed the 66,000 RPM maximum speed for this standard-length 3/8" carbide burr. Always operate within the lower maximum speed of the burr, machine, collet, or accessory system.
Safety Tips
-
- Secure the workpiece before beginning operation.
- Confirm the 1/4" shank is properly seated and securely tightened in the correct collet.
- Use light, controlled pressure and allow the carbide cutting edges to remove the material.
- Keep the burr moving during cutting rather than holding it stationary against the workpiece.
- Maintain control when working inside curved or recessed features.
- Avoid excessive force, which can increase heat, vibration, and premature cutting-edge wear.
- Select operating speed according to burr diameter, workpiece material, machine requirements, and the recommended operating-speed chart.
- Never exceed 66,000 RPM.
- Stop immediately if excessive vibration, chatter, unusual noise, or visible damage occurs.
- Do not use a damaged, chipped, bent, or improperly mounted carbide burr.
