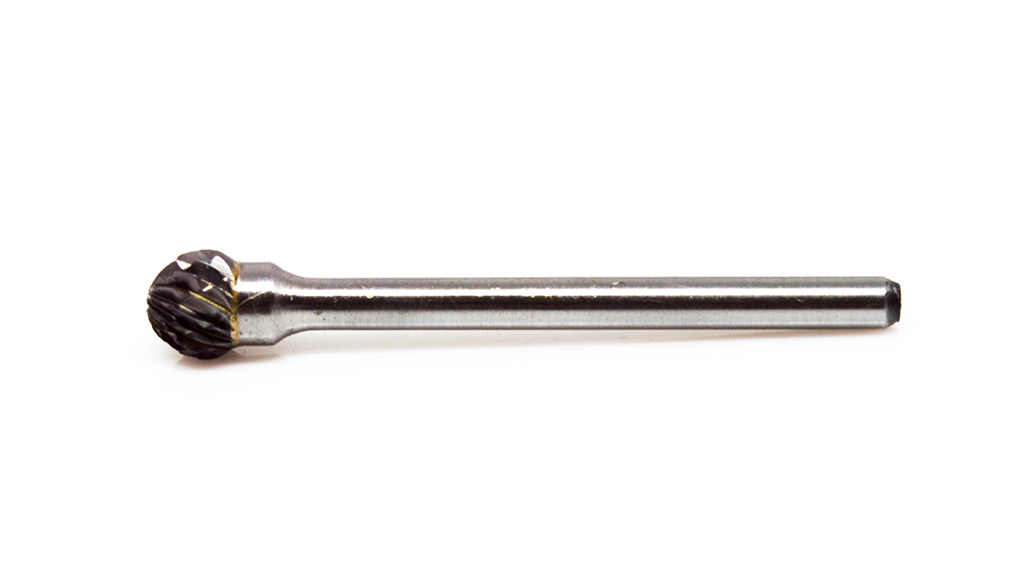

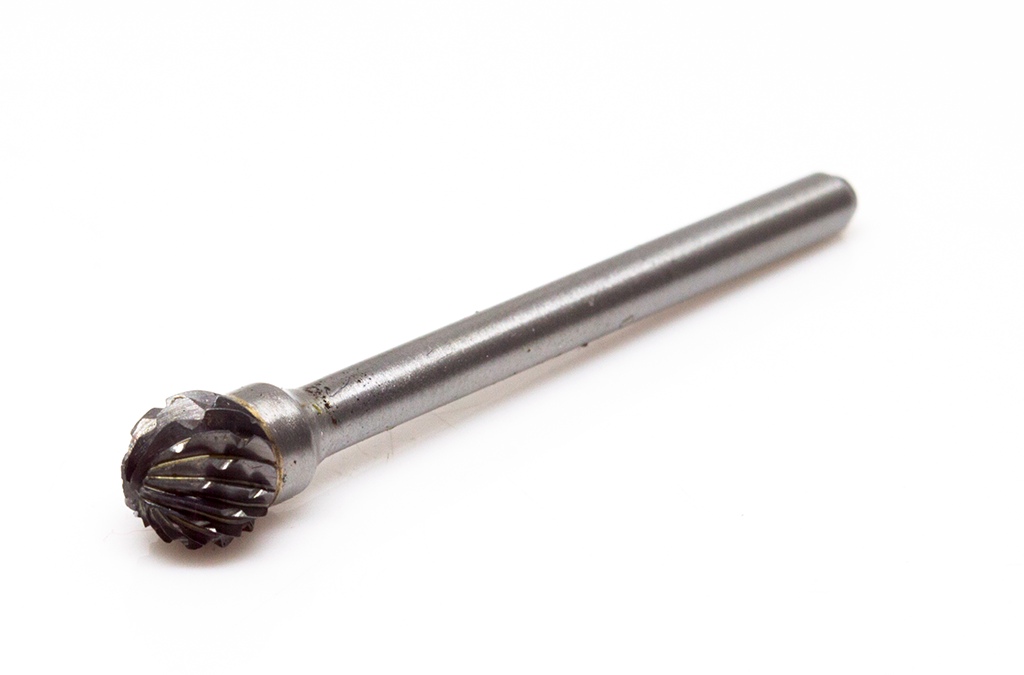

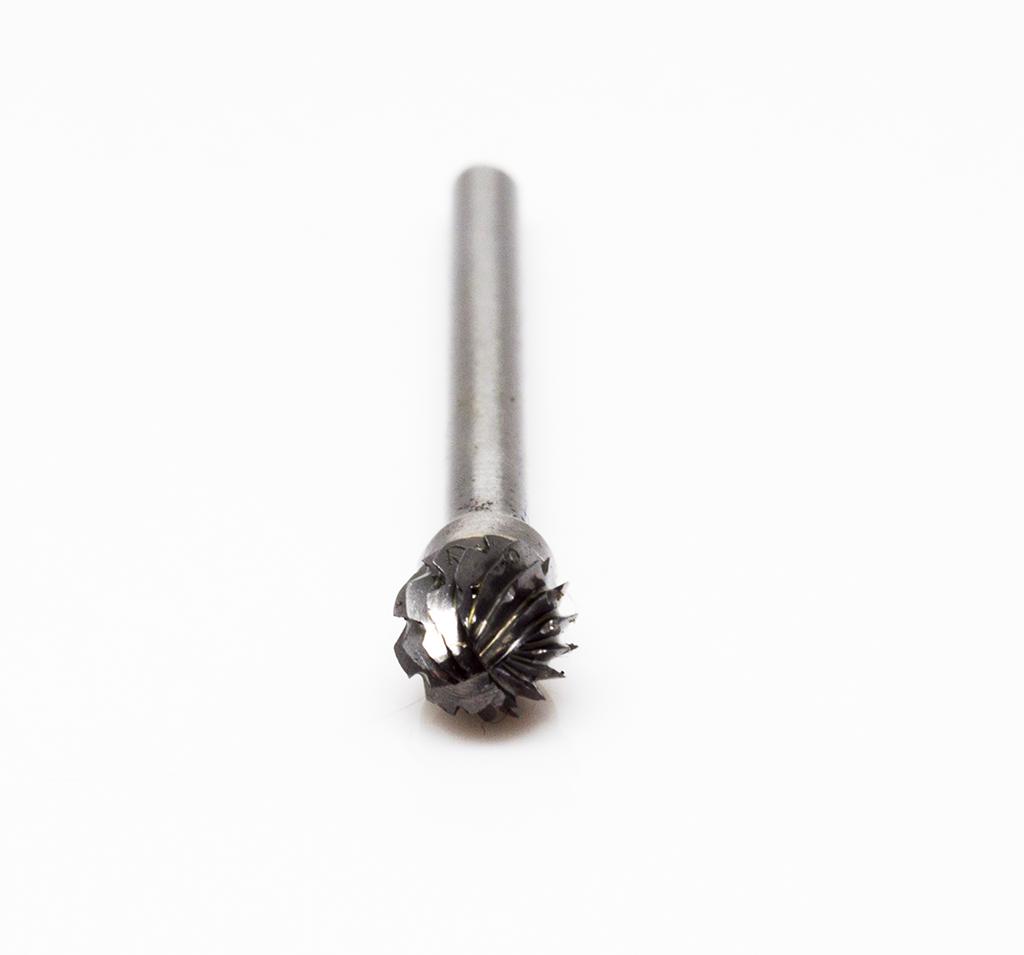

The Benchmark Abrasives SD-51 Ball Shape Premium Tungsten Carbide Burr is built for fabricators, machinists, welders, and metalworkers who need controlled cutting performance in concave surfaces, radiused cavities, recessed features, and curved contours. Unlike lower quality burrs that may use hollow heads or inconsistent brazing, Benchmark carbide burrs feature a solid carbide head with a silver-brazed connection to the shank. The result is a strong, stable cutting tool designed for demanding deburring, shaping, contouring, and localized material-removal applications.

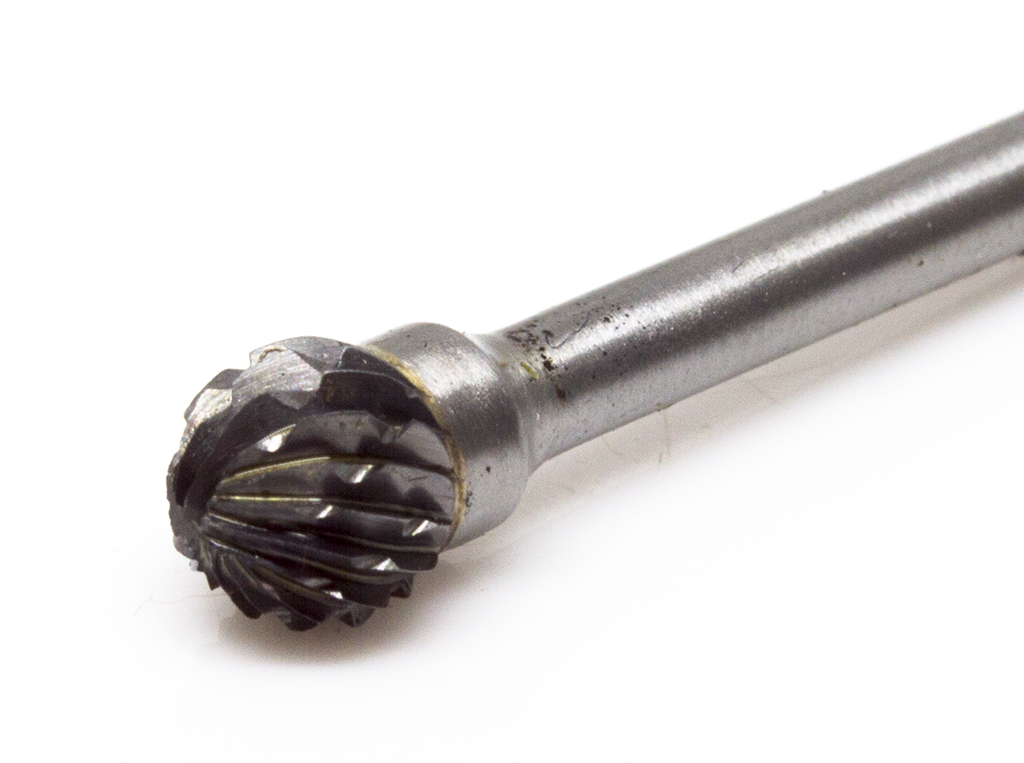

The SD-51 combines that premium construction with a 1/4" ball head and double-cut tooth pattern for efficient, controlled stock removal. Its spherical profile allows cutting contact around the rounded head, making it especially useful for concave surfaces, radiused cavities, internal curves, and free-form contouring where a straight-sided burr would be less effective.
Its 1/8" shank makes the SD-51 well suited for compatible rotary tools and precision grinders equipped with the correct 1/8" collet or chuck. The standard-length 1/4" head is rated for a maximum speed of 70,000 RPM, providing more cutting coverage than the smaller SD-42 while retaining good control for detailed metalworking.
Features
- Premium tungsten carbide construction
- Double-cut design for efficient, controlled stock removal
- 1/4" ball head for concave surfaces and radiused cavities
- Spherical profile for curved and recessed features
- Multi-angle cutting contact for free-form contouring
- Produces smaller chips than a comparable single-cut burr
- 1/8" shank for compatible rotary tools and precision grinders
- Suitable for deburring, shaping, contouring, and localized material removal
- Sold individually
Applications
The SD-51 ball profile is well suited for:
- Concave surfaces
- Radiused cavities
- Rounded recesses
- Internal contouring
- Curved-surface blending
- Detailed deburring
- Localized cavity shaping
- Weld cleanup
- Localized stock removal
- General fabrication and maintenance work
Materials
Recommended primarily for:
- Steel
- Stainless steel
- Cast iron
Also suitable for additional materials when the correct operating speed and technique are used, including titanium, nickel, wrought iron, copper, fiberglass, plastic, hard rubber, wood, and stone.
Machine Compatibility
Designed for rotary tools, precision grinders, and other compatible machines equipped with a properly sized 1/8" collet or chuck.
Compatible examples include Dremel® 4300, 4000, and 3000 fitted with a Dremel 480 1/8" collet and matching collet nut. The 4300 can also hold the 1/8" shank in its keyless chuck.
Always confirm the 1/8" shank is securely seated in the correct collet or chuck before operation. A 1/8" shank is not interchangeable with 3 mm tooling.
Cutting Performance
The SD-51 ball shape provides cutting contact around its rounded profile, making it especially useful for concave geometry, radiused cavities, recessed features, and internal curves. The spherical head can engage curved surfaces from multiple approach angles, giving the operator greater flexibility when shaping, enlarging, or blending rounded areas.
The double-cut tooth pattern uses intersecting flutes to divide removed material into smaller chips, helping provide controlled stock removal and a smoother working action than a comparable single-cut burr. Compared with the smaller SD-42, the 1/4" head provides broader cutting contact for larger cavities and contours while still offering good detail control.
Carbide burrs are primarily cutting and shaping tools; applications requiring a refined cosmetic finish should be followed with the appropriate abrasive finishing process.
Use the chart above to select the recommended operating-speed range based on the 1/4" burr head diameter and workpiece material.
Do not exceed the 70,000 RPM maximum speed for this standard-length 1/4" carbide burr. Always operate within the lower maximum speed of the burr, machine, collet, chuck, or accessory system.
Safety Tips
- Always wear appropriate eye, hearing, respiratory, and hand protection.
- Secure the workpiece before beginning operation.
- Confirm the 1/8" shank is properly seated and securely tightened in the correct collet or chuck.
- Use light, controlled pressure and allow the carbide cutting edges to remove the material.
- Keep the burr moving during cutting rather than holding it stationary against the workpiece.
- Maintain control when working inside curved, recessed, or radiused features.
- Avoid excessive force, which can increase heat, vibration, and premature cutting-edge wear.
- Select operating speed according to burr diameter, workpiece material, machine requirements, and the recommended operating-speed chart.
- Never exceed 70,000 RPM.
- Stop immediately if excessive vibration, chatter, unusual noise, or visible damage occurs.
- Do not use a damaged, chipped, bent, or improperly mounted carbide burr.
