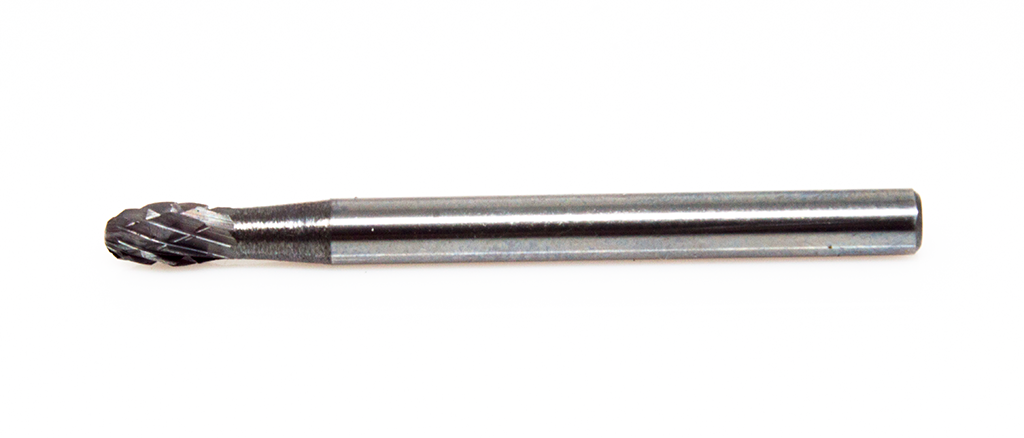

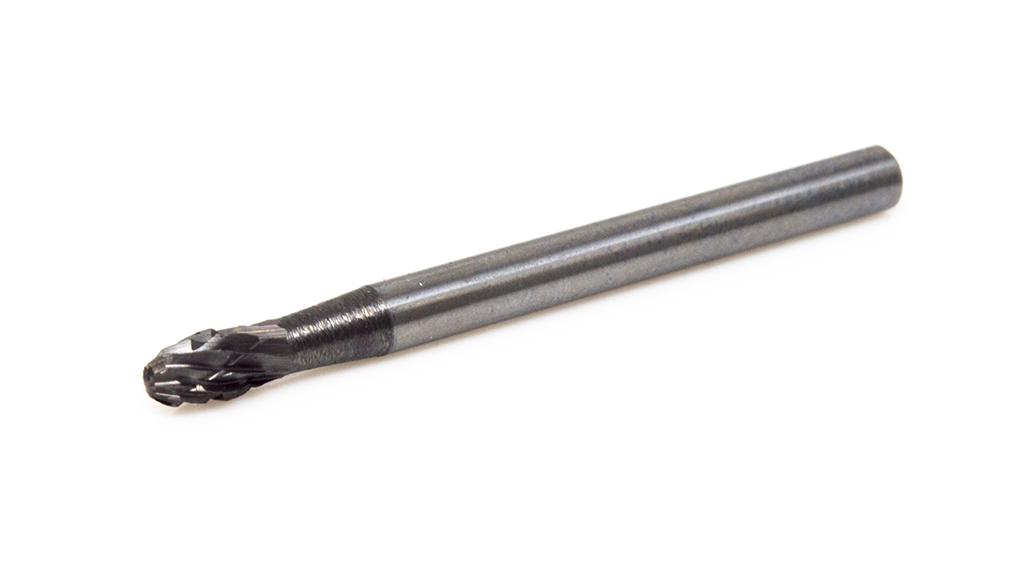

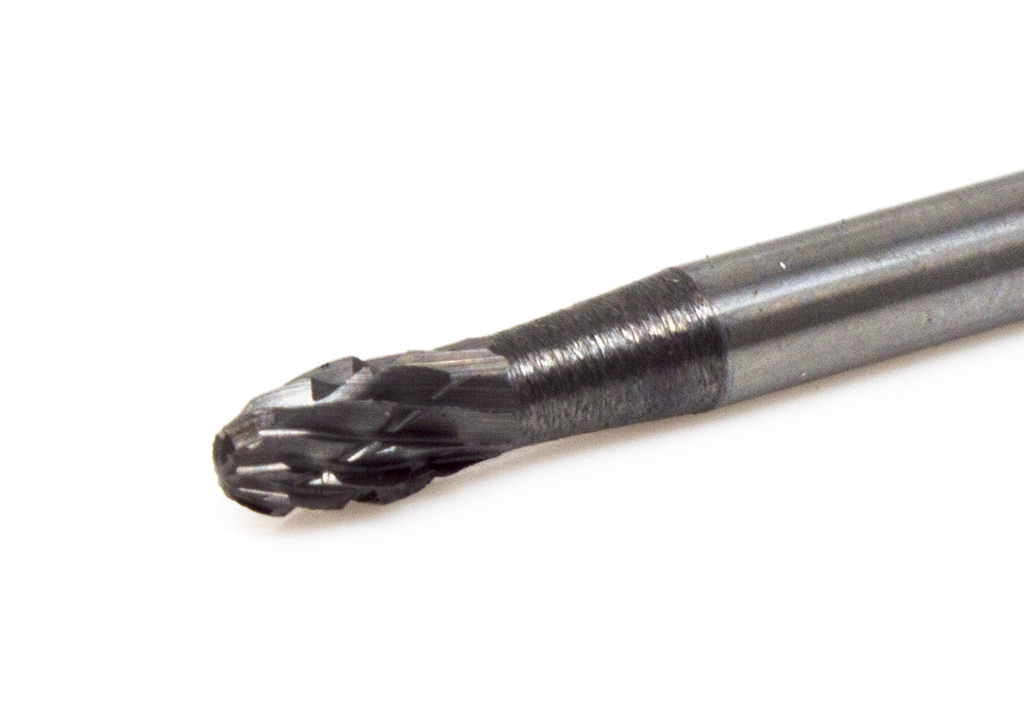

The Benchmark Abrasives SE-41 Oval/Egg Shape Premium Tungsten Carbide Burr is built for fabricators, machinists, welders, and metalworkers who need smooth control across curved surfaces, rounded contours, and compact detail work. Unlike lower quality burrs that may use hollow heads or inconsistent brazing, Benchmark carbide burrs feature a solid carbide head with a silver-brazed connection to the shank. The result is a strong, stable cutting tool designed for demanding deburring, shaping, contouring, and localized material-removal applications.
The SE-41 combines that premium construction with a slim 1/8" oval/egg head and double-cut tooth pattern for controlled stock removal. Its elongated rounded profile transitions naturally across curved surfaces and sweeping contours, giving the operator more gradual contact than a ball burr while still maintaining excellent access in detailed areas.
With both a 1/8" head and 1/8" shank, the SE-41 is a compact option for detailed metalworking and precision contouring. Its small oval profile provides excellent access to tight features, while the standard-length 1/8" head is rated for a maximum speed of 90,000 RPM.
Features
- Premium tungsten carbide construction
- Double-cut design for efficient, controlled stock removal
- Compact 1/8" oval/egg head for detailed work
- Elongated rounded profile for sweeping curved surfaces
- Smooth geometry for oval contours and blended transitions
- Produces smaller chips than a comparable single-cut burr
- 1/8" shank for compatible rotary tools and precision grinders
- Suitable for deburring, shaping, contouring, and localized material removal
- Sold individually
Applications
The SE-41 oval/egg profile is well suited for:
- Sweeping curved surfaces
- Oval contours
- Rounded recesses
- Internal contouring
- Curved-surface blending
- Detailed deburring
- Localized shaping
- Edge blending
- General fabrication and maintenance work
Materials
Recommended primarily for:
- Steel
- Stainless steel
- Cast iron
Also suitable for additional materials when the correct operating speed and technique are used, including titanium, nickel, wrought iron, copper, fiberglass, plastic, hard rubber, wood, and stone.
Machine Compatibility
Designed for rotary tools, precision grinders, and other compatible machines equipped with a properly sized 1/8" collet or chuck.
Compatible examples include Dremel® 4300, 4000, and 3000 fitted with a Dremel 480 1/8" collet and matching collet nut. The 4300 can also hold the 1/8" shank in its keyless chuck.
Always confirm the 1/8" shank is securely seated in the correct collet or chuck before operation. A 1/8" shank is not interchangeable with 3 mm tooling.
Cutting Performance
The SE-41 oval/egg shape provides a longer, more gradual curved cutting profile than a ball burr, making it especially useful for sweeping surfaces, oval contours, blended transitions, and internal curves. Its geometry allows the operator to vary the contact area naturally as the burr moves across curved features.
The double-cut tooth pattern uses intersecting flutes to divide removed material into smaller chips, helping provide controlled stock removal and a smoother working action than a comparable single-cut burr. Its compact 1/8" head diameter makes the SE-41 especially useful where larger oval burrs would limit access or remove too much material.
Carbide burrs are primarily cutting and shaping tools; applications requiring a refined cosmetic finish should be followed with the appropriate abrasive finishing process.
Use the chart above to select the recommended operating-speed range based on the 1/8" burr head diameter and workpiece material.
Do not exceed the 90,000 RPM maximum speed for this standard-length 1/8" carbide burr. Always operate within the lower maximum speed of the burr, machine, collet, chuck, or accessory system.
Safety Tips
- Always wear appropriate eye, hearing, respiratory, and hand protection.
- Secure the workpiece before beginning operation.
- Confirm the 1/8" shank is properly seated and securely tightened in the correct collet or chuck.
- Use light, controlled pressure and allow the carbide cutting edges to remove the material.
- Keep the burr moving during cutting rather than holding it stationary against the workpiece.
- Maintain smooth tool movement across curved and blended surfaces.
- Avoid excessive force, especially with the small 1/8" head diameter.
- Select operating speed according to burr diameter, workpiece material, machine requirements, and the recommended operating-speed chart.
- Never exceed 90,000 RPM.
- Stop immediately if excessive vibration, chatter, unusual noise, or visible damage occurs.
- Do not use a damaged, chipped, bent, or improperly mounted carbide burr.
