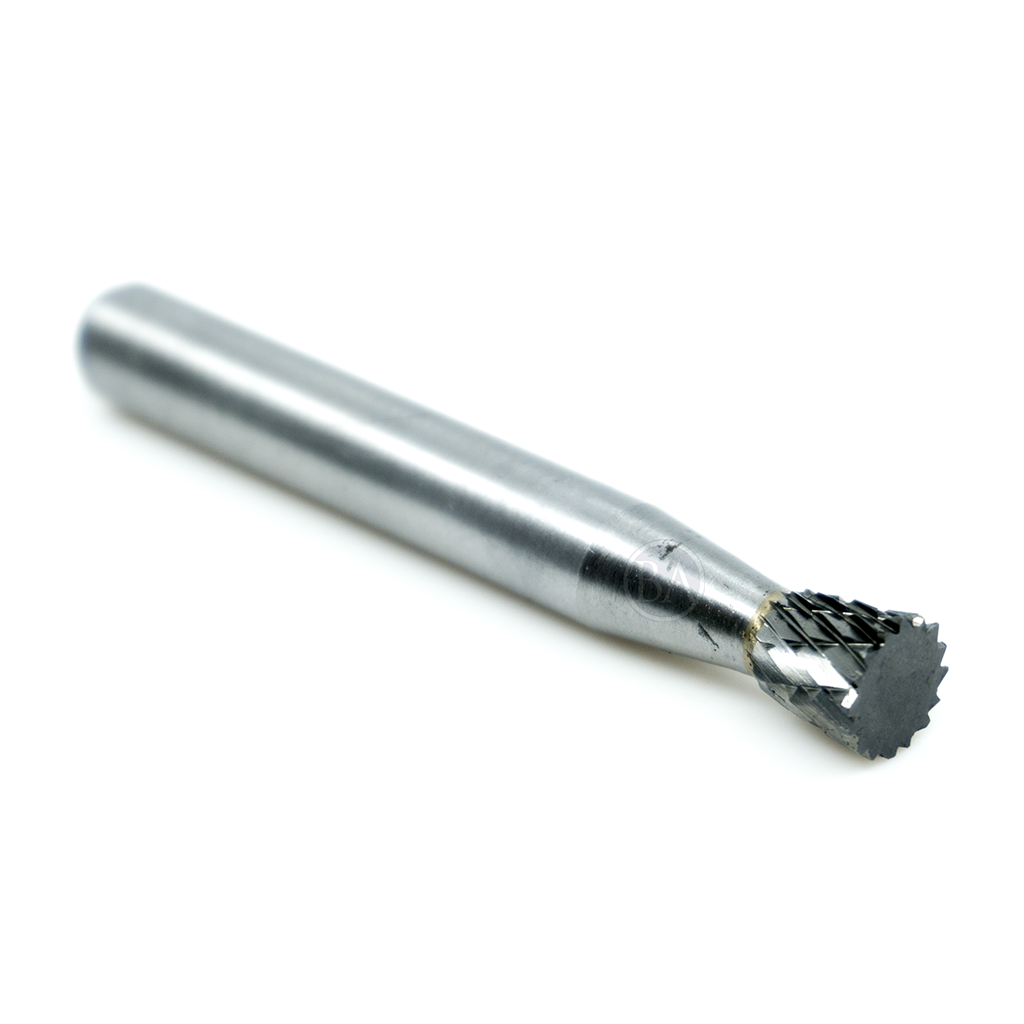

SN-1 Inverted Cone Double Cut Carbide Burr — 1/4" Shank

SKU BM-CBN1D_1
Original price $0.00 - Original price $0.00
Original price $0.00
$5.24
$5.24 - $5.24
Current price $5.24

Product Specification

SN-1 INVERTED CONE DOUBLE CUT CARBIDE BURR — 1/4" SHANK

The Benchmark Abrasives SN-1 Inverted Cone Premium Tungsten Carbide Burr is built for fabricators, machinists, welders, and metalworkers who expect professional-grade cutting performance and dependable construction. Unlike lower quality burrs that may use hollow heads or inconsistent brazing, Benchmark carbide burrs feature a solid carbide head with a silver-brazed connection to the shank. The result is a strong, stable cutting tool made for demanding deburring, shaping, contouring, and material-removal applications.

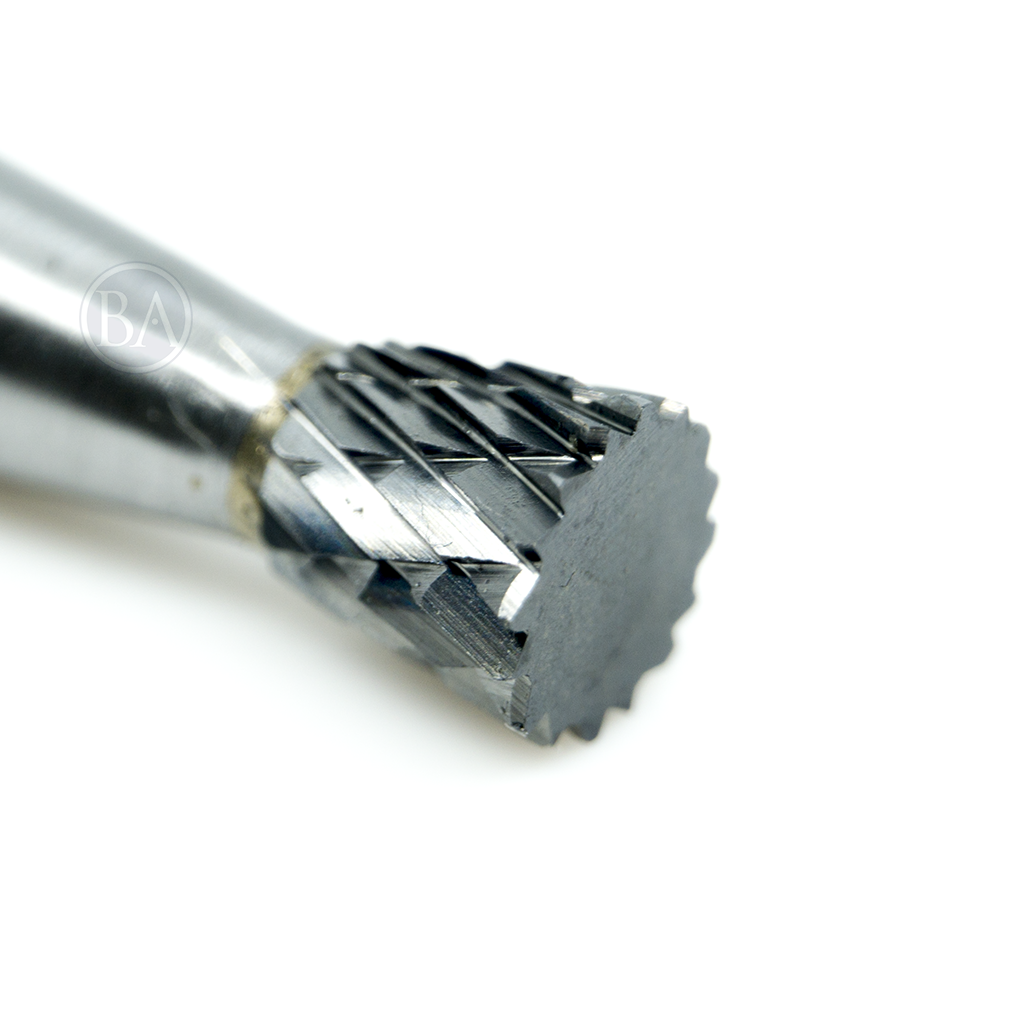

The SN-1 combines that premium construction with a compact 1/4" inverted-cone profile and double-cut tooth pattern for controlled work on undercuts and reverse-angle contours. Its head widens away from the shank, allowing the cutting surface to reach behind edges, work beneath lips, and shape recessed geometry that conventional cone or cylinder profiles cannot approach as effectively. The intersecting double-cut flutes divide removed material into smaller chips, providing a more manageable cutting action and smoother result than a comparable single-cut burr while still removing material efficiently.

Whether you're creating or refining undercuts, cleaning reverse-angle features, deburring recessed edges, or performing detailed fabrication and maintenance work, the SN-1 provides specialized geometry for areas that are difficult to reach with standard burr shapes. The 1/4" shank fits compatible die grinders and rotary tools with a matching collet, while the standard-length 1/4" head is rated for a maximum speed of 70,000 RPM.

Product Specifications

Specification Details
Product Code SN-1
Burr Material Tungsten Carbide
Head Shape Inverted Cone
Cut Double Cut
Head Diameter 1/4"
Cut Length 5/16"
Shank Diameter 1/4"
Overall Length 2-1/2"
Max RPM 70,000 RPM
Quantity 1 Piece

Features

  • Premium tungsten carbide construction
  • Double-cut design for efficient, controlled stock removal
  • Inverted-cone profile for undercuts and reverse-angle contours
  • 1/4" head for compact, controlled work
  • Geometry designed to reach behind edges and into recessed features
  • Produces smaller chips than comparable single-cut burrs
  • Suitable for deburring, shaping, contouring, and localized material removal
  • 1/4" shank for compatible die grinders
  • Sold individually

Applications

The SN-1 inverted-cone profile is well suited for:

  • Undercut shaping
  • Reverse-angle contours
  • Recessed edge cleanup
  • Working beneath lips and overhangs
  • Internal contouring
  • Detailed deburring
  • Localized stock removal
  • General fabrication and maintenance work

Materials

Recommended primarily for:

  • Steel
  • Stainless steel
  • Cast iron

Also suitable for additional materials when the correct operating speed and technique are used, including titanium, nickel, wrought iron, copper, fiberglass, plastic, hard rubber, wood, and stone.

Machine Compatibility

Designed for die grinders and other rotary tools equipped with a properly sized 1/4" collet.

Compatible examples include:

  • Benchmark Straight Pneumatic Die Grinder (BMT-DGST_1) — 1/4" collet, up to 25,000 RPM.
  • DEWALT DCG426B — 1/4" collet, variable speed up to 25,000 RPM.
  • Milwaukee 3485-20 — 1/4" collet, variable speed up to 20,000 RPM.

Always confirm the burr shank is securely seated in the correct collet and that the machine speed is appropriate for the burr diameter, workpiece material, and application.

Cutting Performance

The SN-1 inverted-cone shape widens away from the shank, giving it a cutting profile specifically suited for undercuts and reverse-angle contours. This geometry allows the burr to work behind edges, beneath lips, and into recessed areas where straight cylinders, conventional cones, or rounded profiles may not make effective contact.

The double-cut pattern divides removed material into smaller chips, helping provide controlled stock removal and a smoother working feel than a comparable single-cut burr. Carbide burrs are primarily cutting and shaping tools; applications requiring a refined cosmetic finish should be followed with the appropriate abrasive finishing process.

Use the chart above as a starting guide to operating speed based on the 1/4" burr head diameter and workpiece material. These are suggested cutting ranges, not minimum machine speeds; conventional die grinders commonly run at 20,000–29,000 RPM.

Do not exceed the 70,000 RPM maximum speed for this standard-length 1/4" carbide burr. Always operate within the lower maximum speed of the burr, machine, collet, or accessory system.

Safety Tips

  • Always wear appropriate eye, hearing, respiratory, and hand protection.
  • Secure the workpiece before beginning operation.
  • Confirm the 1/4" shank is properly seated and securely tightened in the correct collet.
  • Use light, controlled pressure and allow the carbide cutting edges to remove the material.
  • Keep the burr moving during cutting rather than holding it stationary against the workpiece.
  • Use additional care when working behind edges or in undercut areas where visibility may be limited.
  • Avoid excessive force, which can increase heat, vibration, and premature cutting-edge wear.
  • Select operating speed according to burr diameter, workpiece material, machine requirements, and the recommended operating-speed chart.
  • Never exceed 70,000 RPM.
  • Stop immediately if excessive vibration, chatter, unusual noise, or visible damage occurs.
  • Do not use a damaged, chipped, bent, or improperly mounted carbide burr.

Frequently Asked Questions

The SN-1 is especially useful for undercuts, reverse-angle contours, recessed edges, internal features, and localized deburring.
The inverted-cone profile widens away from the shank, allowing the cutting surface to reach behind edges and into reverse-angle geometry that is difficult to access with conventional cone or cylinder shapes.
A pointed cone narrows toward its tip and is best suited for tight recesses and pointed contours. The SN-1 widens toward its outer end, making it better suited for undercuts and reverse-angle features.
The SN-1 is intended for undercuts and reverse-angle contour shaping. SJ and SK countersink burrs use fixed-angle geometry specifically for creating or refining 60° or 90° countersinks.
Double-cut burrs use intersecting cutting flutes that divide material into smaller chips, helping provide controlled stock removal and a smoother working action than a comparable single-cut burr.
The SN-1 has a 1/4" shank and requires a compatible 1/4" collet.
Common options include the Benchmark Straight Pneumatic Die Grinder (BMT-DGST_1), DEWALT DCG426B and Milwaukee 3485-20, using their 1/4" collets. The Benchmark and DEWALT reach 25,000 RPM; the Milwaukee reaches 20,000 RPM. The chart provides suggested cutting ranges, not a minimum tool speed. Seat the shank securely and follow the tool's mounting instructions and the burr's maximum RPM.
Yes. Steel, stainless steel, and cast iron are the primary material focus for this double-cut carbide burr.
Conventional die grinders commonly run at 20,000–29,000 RPM. Use the chart as a starting guide and adjust speed and pressure for the material and cutting action. The maximum for this 1/4" head is 70,000 RPM. Stay within the tool's operating range and never exceed the burr's maximum RPM.
A carbide burr is primarily a cutting and shaping tool. For a refined cosmetic or polished finish, follow burr work with the appropriate abrasive finishing product.
