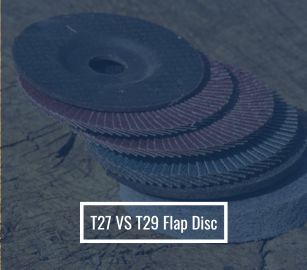

T27 VS T29 Flap Disc

The key difference between T27 and T29 flap discs lies in their shape and the grinding angle they are designed for. T27 is a flat disc for smooth finishing on flat surfaces, while T29 is a slightly curved disc for more aggressive grinding and shaping on edges.

In this article, we'll compare two popular flap disc types: T27 and T29. They both have a similar appearance, yet perform differently. Let's begin with the flap discs.

What is a Flap Disc?

A flap disc is an abrasive tool for angle grinders, utilized for sanding, grinding, shaping, and metal polishing. Unlike a traditional grinding wheel, a flap disc consists of multiple overlapping layers of abrasive material, or "flaps," glued to a backing plate. This design allows the flaps to wear away gradually, exposing fresh abrasive material and providing a longer lifespan and a more consistent finish. Flap discs are a popular alternative to traditional grinding wheels due to their versatility and efficiency.

T27 vs. T29 Flap Discs: The Main Differences

The primary difference between these two common flap disc types is their physical shape and the optimal angle at which they are used.

# Type 27 (T27) Flap Disc

T27 is a flat-shaped flap disc that is used to finish flat surfaces smoothly. They function best at a 0-15-degree angle. They are incredibly popular and widely considered the best option for blending and smoothing.

• Shape: The T27 flap disc has a completely flat or low-profile shape.
• Purpose: It's designed for working on flat surfaces and achieving a smooth, blended finish.
• Grinding Angle: It is most effective when used at a shallow angle, typically between 0 and 15 degrees to the workpiece.
• Application: Best for blending welds, smoothing surfaces, and general sanding where a consistent, flat finish is required.
• # Type 29 (T29) Flap Disc

The T29 flap disc, with its slightly curved shape, is ideal for edge shaping and contouring. For best results, use it at a 15 to 25-degree angle. It grinds more aggressively than the T27 flap disc because of its curved design, which helps remove stock from the material.

• Shape: The T29 flap disc has a slightly curved or conical shape.
• Purpose: With its curved design, the tool enables more aggressive material removal, making it highly effective for shaping, contouring, and detailing edges.
• Grinding Angle: It is designed to be used at a steeper angle, generally between 15 and 25 degrees to the workpiece.
• Application: Excellent for heavy-duty stock removal, beveling edges, and grinding into fillets or corners.
• Similarities Between T27 Flap Disc and T29 Flap Disc

Despite the differences in form and use, the T27 and T29 flap discs have many similarities.

• Materials: They are both excellent for metalworking, and their effectiveness extends to other materials, including wood and plastic.
• Tooling: Both types are designed as attachments for power tools, primarily angle grinders.
• Longevity: Their overlapping flap design gives them a longer lifespan compared to traditional single-layer abrasives.

Differences Between T27 and T29 Flap Disc

Summary: Choosing the Right Disc

• Choose a T27 if you need a flat, smooth finish on a flat surface.
• Choose a T29 if you need to perform aggressive grinding, shaping, or contouring on edges and curves.

You will now be able to work more efficiently and successfully because you understand the difference between T27 and T29 flap discs.
