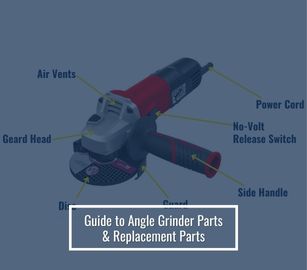

A Complete Guide to Angle Grinder Parts & Replacement Parts

Have you ever wondered how your angle grinder operates so effectively and securely? Understanding the key internal components not only helps in maintaining your tool better but also ensures safe operation and optimal performance.

One of the most useful tools for both professional and do-it-yourself projects is an angle grinder. These angle grinder parts comprise both internal and external components, including critical internal mechanisms.

Let’s explore the key power tool parts that make up the best angle grinders in the market. Knowing the different parts of your angle grinder is essential for general purposes or specific tasks. These angle grinder parts will help you get the most out of your tool for general-purpose applications.

Essential Internal Components of an Angle Grinder

The heart of an angle grinder lies in its internal components, which are crucial for its high-speed performance. These internal components, as well as recognizing signs of failure, are vital to keeping your grinder running efficiently and safely.

1. Motor

The tool is powered by the motor, which also drives the disc's rotation.  It directly affects performance levels and is the center of the angle grinder.  For it to function smoothly and effectively, routine inspection and maintenance are required.

2. Ball Bearings

Ball bearings support the motor spindle, reducing friction and enabling smooth high-speed operation. Failing bearings can cause noise, excessive vibration, and decreased accuracy, signaling the need for replacement.

3. Carbon Brush (Grinder)

These brushes facilitate the flow of electricity between the stationary parts and the rotating motor. Worn-out brushes can lead to poor motor performance or complete failure, making replacement essential for maintaining power and efficiency.

4. Brush Holder

The brush holder keeps the carbon brushes correctly positioned for optimal contact with the motor's commutator. Proper function prevents electrical faults and overheating, ensuring consistent operation over time.

5. Power Cord

The grinder receives electrical current from the power cord. Regular inspection and replacement are essential as damage can pose a safety hazard and cause a power outage.

6. Power Switch

It controls the activation of the tool, allowing safe operation. A faulty switch can lead to accidental starts or failures, so it must be replaced immediately to maintain safety standards.

7. Lock Button

The lock button prevents the spindle from rotating during disc changes, ensuring operator safety. Regular checks ensure it functions properly, preventing accidental movements during maintenance.

8. Battery Pack (for cordless models)

The battery pack supplies power to cordless angle grinders. Its condition affects the tool’s runtime and performance.

Critical Mounting and Safety Parts

Below is the comprehensive list of mounting and safety parts crucial for secure and safe angle grinder operation.

1. Center Wheel

The center wheel is crucial for securely holding the abrasive disc in place. Proper installation of the center wheel ensures smooth operation and prevents wobbling during use.

2. Outer Flange and Backing Flange

These components work together with the flange nut to clamp the abrasive outer flange and backing flange firmly onto the spindle. Proper tightening of these parts keeps the outer flange stable and safe during cutting or grinding.

3. Hex Hole Flange and Clamp Washer

These parts provide extra stability and support for the outer flange and center wheel, helping to distribute pressure evenly and reduce the risk of disc slippage.

4. Spanner Wrench

The spanner wrench is essential for correctly tightening and loosening mounting hardware. Using a proper spanner wrench guarantees the outer flange and center wheel are securely mounted, preventing accidents.

5. Grinder Guards and Adjustable Guard

Grinder guards and adjustable guards protect operators from sparks, debris, and accidental contact. Ensuring the adjustable guard is correctly positioned is vital for safety.

6. Side Handle

The side handle provides greater stability and control, especially when handling heavy materials. The firm grip increases safety and reduces operator fatigue.

7. Safety Reminder

Always inspect mounting hardware, especially the outer flange and center wheel, for damage or wear. Replacing any damaged or worn outer flange or worn spanner wrench is critical to avoid accidents and ensure safe operation.

Abrasive Attachments and Cutting Tools

Angle grinders are incredibly versatile, largely due to the wide array of abrasive attachments and cutting tools available. Let’s explore some key options for different materials and applications, helping you select the right tool for each job.

1. Cutting Discs and Cut-Off Wheel

A cut-off wheel, also known as a cutting disc, is used to cut through metal and other hard materials. They offer precision cuts, ideal for sheet metal and small-scale tasks. Choosing the right disc ensures efficient, clean cutting.

2. Sanding Discs

Sanding discs are perfect for surface finishing, available in various grits to match different sanding needs. Aluminum oxide sanding discs provide excellent abrasively and durability, suitable for wood and metal surfaces.

3. Flap Disc

A flap disc is versatile, combining grinding and finishing capabilities. They are perfect for smoothing metal welds and shaping materials. With their layered design, flap discs offer flexibility and durability, ideal for intermediate hook-up.

4. Grinding Disc

The grinding disc is essential for heavy stock removal and smoothing welds. Its robust design can handle intense tasks efficiently, grinding down hard materials with ease.

5. Wire Wheels and Wire Brushes

Wire wheels and wire brushes are excellent for removing rust, paint, and corrosion, preparing surfaces before painting or coating. They are available in different types, maximizing performance on rough surfaces.

6. Diamond Blade

The diamond blade provides durability and precision, even in tough jobs, making it ideal for cutting hard materials like stone and concrete.

7. Carbide Burrs

Carbide burrs are excellent for detailed work, providing precise shaping and material removal. Aluminum oxide and silicon carbide burrs are used for different tasks.

Affordable Replacement Parts and Accessories for Major Brands

When a part of your favorite power tool wears out, it can be frustrating and expensive to replace. Many OEM replacement parts from top brands like DeWalt, Bosch, and Milwaukee are overpriced, leaving you with no choice but to pay a premium or buy a new tool.

At Benchmark Abrasives, we believe you shouldn't have to sacrifice quality or empty your wallet to keep your tools running. We provide genuine OEM replacement parts and accessories that offer the same high-level performance and guaranteed compatibility as the original parts. You can find a great compatible product at a great price.

Our extensive inventory of replacement parts for popular models, including parts for our respected 4.5-inch corded angle grinder, offers a budget-friendly and long-lasting alternative to overpriced consumables. We make it simple to find parts for all the most trusted names in the industry.

Different Types of Angle Grinders

Different types of angle grinders are designed for various tasks, and each has specific component needs. Understanding these differences helps you select the right angle grinder tool and maintain it properly, ensuring safety and optimal performance.

• Small Angle Grinders: Compact and lightweight, these are perfect for detailed tasks and working in tight spaces. They are ideal for precision cutting, grinding, and polishing on smaller projects.
• Cordless Angle Grinders: Powered by rechargeable batteries, cordless grinders provide mobility and convenience for outdoor or on-site work. They are suitable for light to medium tasks where portability is essential.
• Corded Angle Grinders: With a continuous power supply, corded grinders deliver consistent, high power for heavy-duty applications like cutting and grinding large surfaces or industrial work.
• Pneumatic Angle Grinders: Powered by compressed air, these grinders are lightweight and perfect for safety-critical environments or where sparkless operation is required, such as in explosive atmospheres.
• Variable Speed Angle Grinders: These offer adjustable speed settings, providing versatility for different tasks, from delicate polishing to aggressive grinding, helping prevent damage to delicate surfaces.
• Straight Angle Grinders: Designed with a straight body, these are used mainly in fabrication and finishing work, especially for grinding in tight corners and hard-to-reach areas.
• Inch Angle Grinders: Variety in size allows larger inch angle grinders to handle more demanding jobs, such as heavy metal cutting and large surface grinding, making them suitable for industrial use.

Finding and Ordering Replacement Parts

Finding the right replacement parts can be frustrating, but we make it simple. Our detailed parts list includes part type and part number to ensure accurate angle grinder replacement part selection. Check inventory levels and order status easily to avoid delays.

If you are unsure or need help, our team is ready to assist you in identifying the correct spare parts. Trust us to deliver your spare parts quickly and reliably, keeping your tool type in optimal condition. Need help? Contact us anytime for guidance on your parts list or order status.

Expanding Power Tool Knowledge For Projects

• Broader Power Tool Knowledge: Understanding angle grinder components can benefit your skills with other power tools used in home improvement. For example, skills in handling band saws and miter saws often overlap, simplifying maintenance and part replacement. This knowledge helps with home services tasks, making repairs easier and more efficient.
• Outdoor and Home Equipment: Many users need information on pressure washers, grill parts, and vacuum parts. The same principles apply; knowing how to identify part type and part number speeds up repairs and upgrades. This expertise extends into outdoor living and smart home projects.

Save Money, Extend Tool Life, Maximize Performance

Choosing angle grinder parts over a new tool saves money, extends the life of your equipment, and ensures safety and optimal performance. Proper replacement and maintenance are key to efficient operation and reducing downtime.

Benchmark Abrasives is a trusted source for all cutting tools and parts. Our high-quality angle grinder parts and accessories help you keep your power tools performing excellently all the time.

Get the right angle grinder parts from a reliable abrasive tool provider. Our team of experts at Benchmark Abrasives is committed to quality and support.
